Home > Products > CAN Bus Gateway Series > GCAN-203 Bluetooth To CAN Converter for Real-time Data Mobile APP Monitoring In Car

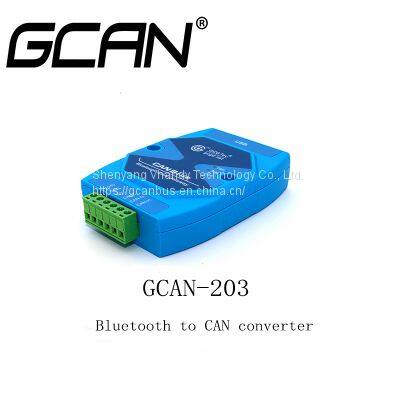

GCAN-203 Bluetooth To CAN Converter for Real-time Data Mobile APP Monitoring In Car
115 - 130
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- DaLian
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
GCAN-204 Converter Communication Device Connected To Canbus Plc With An Existing Can Network For Control System
-
GCAN-205 Modbus TCP to CAN converter for beginners to learn CAN
-
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine
-
GCAN 206 supports independent CAN baud rate, galvanically isolated 1500V
-
Gcan-207 Rs232/485 To Can Converter for Bidirectional Communication
-
GCAN CAN to Wireless Router Repeater/Wifi CANBus Gateway the Converter with Wifi to Can Wifi Bridge Transmission Module
Product Details
| Brand Name | GCAN | Place of Origin | China | |
| Model Number | GCAN-203 |
Product Description
Place of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-203
Certificate:CE
Power flow:30mA 24V DC
Max data traffic:300 frames/s
Function:data transmission
Size:112*70*24mm
Power Supply:+9~30V DC
Working temperature:-40℃~+85℃
Baud rate:5Kbps~1Mbps
maximum flow:300 FPS
Current:30mA, 24V DC
- Packaging & Delivery
Selling Units:Single item
Single package size: 26X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
Quantity(sets) 1 - 500 >500 Est. Time(days) 7 To be negotiated
Product description
- The GCAN-203 is a CAN-Bus converter, used for connecting the upper computer by Bluetooth in wireless. It is a high-performa nce CAN-Bus converter, whose function is to realize CAN system access in the case that it's hard to connect physically.Product parameter
CAN-Bus baud rates range 10K~1Mbps
Maximum data traffic: 300 frames per second
Bluetooth using 2.0 or 5.0
Power supply: 9~30V (20mA,24V DC)
Installation method: DIN rail
Working temperature range: -40 ~ +85 ℃;
CAN-Bus isolation module insulation voltage: DC 1500V
CAN Blue ConfigCustomize the passwordCAN-Bus test function
After-sale servicesTypical applications
■ CAN system access without connection;
■ Industrial network data monitoring;
■ CAN teaching application;
■ CAN industrial automation control system;
■ Data collection and analysis of low-speed CAN network;
■ CAN-Bus application system of intelligent building broadcast
Return/refund policy: If you get an item didn’t meet your demand and you do not like the item we send to you, please contact us within 7days after you receive your order. Item must be returned with its original packaging and accessories. Customer is responsible for shipping charges of returned item.
