Home > Products > PLC & IO Coupler Series > 24V DC (18~36V) Standard Modbus slave station Baud rate 600bps~115200bps Support CRC check
24V DC (18~36V) Standard Modbus slave station Baud rate 600bps~115200bps Support CRC check
124 - 139
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- DaLian
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
GCAN USB CAN Bus Analyzer Data Debug Card Car Debugging Analysis J1939 Single Channel Debugging of Core Module
-
GCAN 2 Channel USB-CAN Adapter/Analyzer for BMS, Usb to Can Adapter Support CANopen, J1939, ISO 15765 Protocol, DBC Files
-
GCAN 2-Channel Isolated Variable Baud Rate CAN FD Debug Analyzer with Interface Card CAN Bus used by high-performance tools
-
GCAN USB CAN Bus Signal through The DataBridge Modulation or Storage Device Data Adaptation Analyzer
-
8-Channel CAN Analyzer for Automotive Electronics Development
-
ECAN-IT Analysis Tool for Analysis/Debug/Downloader And EPEC Controller Data
Product Details
| Brand Name | GCAN | Place of Origin | China | |

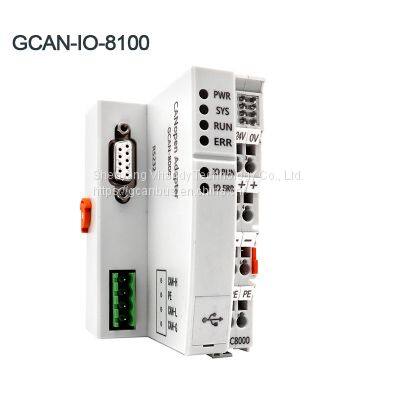

| Model Number | GCAN-IO-8100 |
Product Description
Product introduction
GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
Total 3 control modules
Model | Characteristic | Communication bus |
GCAN-PLC-400 | CPU frenquency 168M | 1*CAN+1*Ethernet+ 1*RS232(or RS485) |
Program storage:16M byte | ||
Data storage:512K byte | ||
GCAN-PLC-510 | CPU frenquency 400M | 1*CAN+1*Ethernet+ 1*RS232(or RS485) |
Program storage:32M byte | ||
Data storage:16M byte | ||
GCNA-PLC-511 | CPU frenquency 400M | 1*CAN+1*Ethernet+ 1*RS232+1*RS485 |
Program storage:32M byte | ||
Data storage:16M byte |
Total 2 communication module| Performance | CANopen adapter (GCAN-IO-8000) | Modbus adapter (GCAN-IO-8100) |
| Node number | 1~127 | 1~247 |
| Baud rate | 10Kbps~1000Kbps | 600bps~115200bps |
| Power input | 24V DC (18~36V) | |
| Insert I/O module number | 32 pieces (at most 32*8 IO point) | |
| Dimension | 100mm*69mm*48mm | |
| Working temperature, humdidness | -40℃~+85℃, 0~90%RH, without condensation | |
| IP grade | IP20 | |
Input and output modules
packaging
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
