Portable High Efficiency Automatic Vacuum Pump System

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

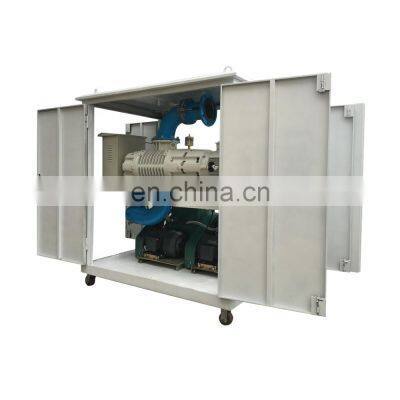

ZKCC Vacuum Pumping System

Model	ZKCC-30	ZKCC-70	ZKCC-150	ZKCC-300	ZKCC-600	ZKCC-1200
Gas Pumping Speed (L/s)	30	70	150	300	600	1200
Vacuum Limit (Mpa)	5	5	3	3	2	2
Working Vacuum (Mpa)	130	125	110	105	100	80
Total Electric Power (kw)	1.65	2.6	5.2	9.5	10.7	20.5
Main Pump Type	ZL-30	ZL-70	ZL-150	ZL-300	ZL-600	ZL-1200
Front Stage Pump Type	2X-8	2X-15	2X-30	2X-70	KT-300	KT-500
Wire size of power supply input ≥(mm2)	1	1.5	3	4	6	8
Power Supply	50Hz 380V (3phase, 4wire)
Gas Inlet Caliber (mm)	DN50	DN80	DN100	DN160	DN200	DN250
Gas Outlet Caliber (mm)	DN34	DN60	DN70	DN90	DN70	DN90
Overall Dimensions (cm)	73×46×100	79×55×120	105×60×135	132×78×150	145×86×201	168×100×269

ZKCC series vacuum pumping device is a new type of vacuuming equipment developed and produced by our company. It is widely used in the process of producing vacuum condition for various equipment. Its vacuum pressure can reach much lower than any other products in the same field. Application: It is widely used in the vacuuming process in the production, installation and maintenance of many electric power equipment, like electric power transformer, capacitor etc. It is also used in the technical process of industrial production, such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc. It is not suitable for the vacuum process for air and gases containing too much powder, water and oxygen as well as explosive, corrosive, poisonous and chemical substances.

1. The machine adopts special Roots pump and vacuum pump, so the vacuum pumping speed and pressure are obviously better than any other devices. 2. Working vacuum range and maximum vacuum degree are superior to other products. 3. It is installed with special vacuum gauge for accurate indication. 4. It adopts automatic vacuum relay for automatic control. 5. Stable and reliable operation, low noise, and easy to move.

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
