Home > Products > Vacuum Pumping System > Fast Speed Degassing Vacuum Pump Unit 1800 per Min ZKCC-30

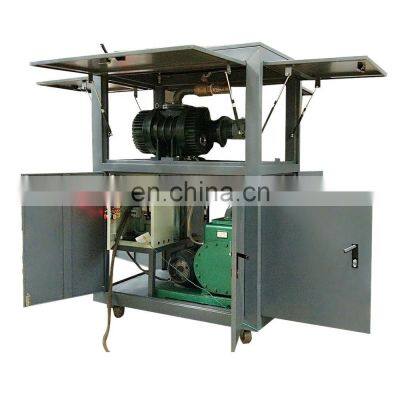

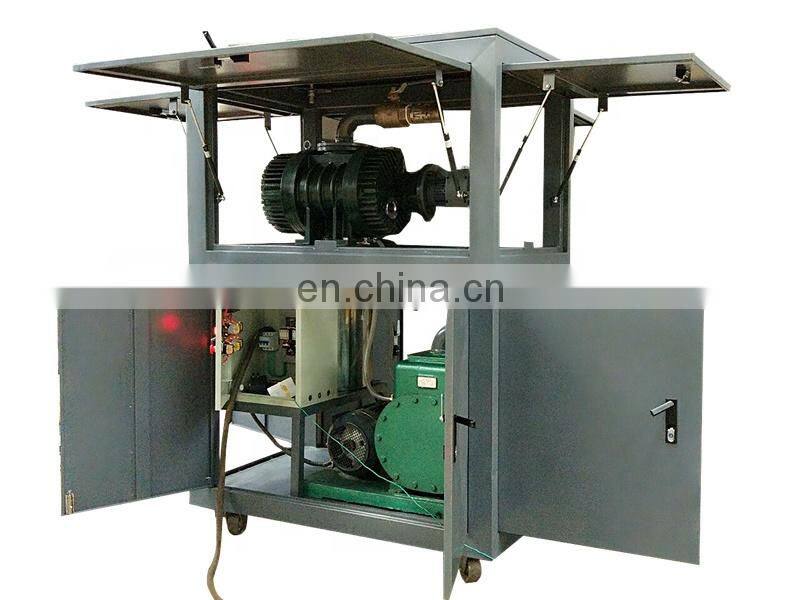

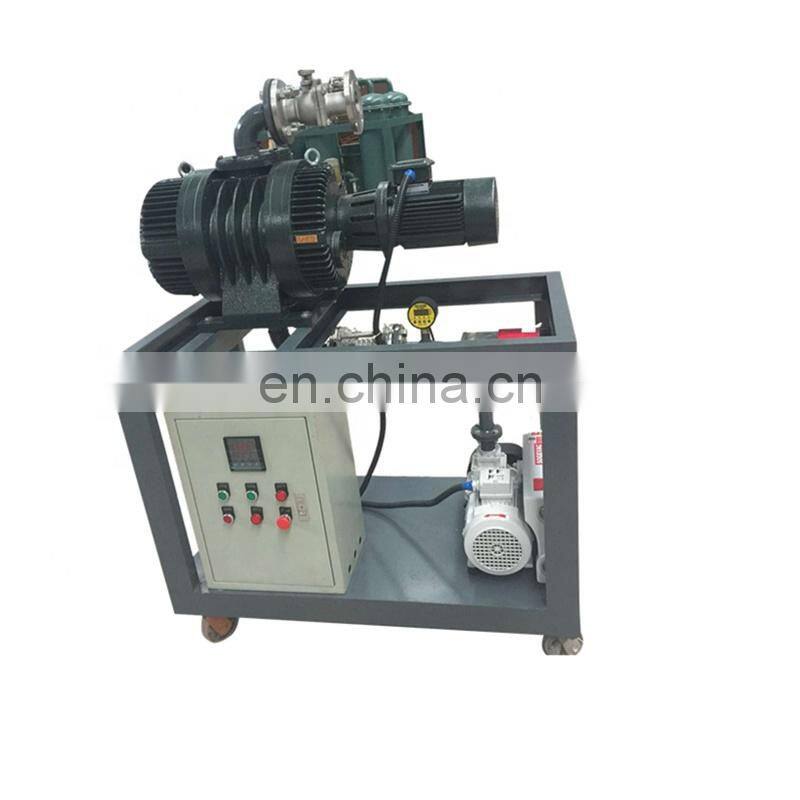

Fast Speed Degassing Vacuum Pump Unit 1800 per Min ZKCC-30
- T/T Credit Card
You May Like
-
Degassing Vacuum Pump Unit 9000 Liters per Min ZKCC
-
ZKCC Movable Double Stage High Vacuum Pump Unit
-
CE Certificate High Vacuum Pump Unit Type 4200 Liters per Min MOdel ZKCC-70
-
ZKCC Fully Enclosed High Speed Dry Screw Vaccum Pump System
-
ZKCC High Speed Dry Screw Vaccum Pump /ZKCC-W Enclosed Vaccum Pump Set
-
High Speed Dry Vacuum Pump/Superior Performance Vacuum Pump Air-removal System
Product Description

electric power transformer, capacitor etc., and is also used in the technical process of industrial production, such as vacuum
drying, vacuum distillation, vacuum wielding, vacuum coating etc. It is not suitable for the vacuum process for air and gases
containing too much powder, water and oxygen as well as explosive, corrosive, poisonous and chemical substances.
- Features:
2.Working vacuum range and maximum vacuum degree are superior to other products.
3.It is installed with special vacuum gauge for accurate indication.
4.It adopts automatic vacuum relay for automatic control.
5.Stable and reliable operation, low noise, and easy to move.




Technical Parameter | ZKCC-30 | ZKCC-70 | ZKCC-150 | ZKCC-300 | ZKCC-600 | ZKCC-1200 | |||||
Pumping Speed (L/s) | 30 | 70 | 150 | 300 | 600 | 1200 | |||||
Pumping Speed (m3/h) | 108 | 252 | 540 | 1080 | 2160 | 4320 | |||||
Ultimate partial pressure (Pa) | 5×10-2 | 5×10-2 | 5×10-2 | 3x10-2 | 3x10-2 | 1×10-1 | |||||
Ultimate partial pressure (Torr) | 3.7×10-4 | 3.7×10-4 | 2×10-4 | 2×10-4 | 2×10-4 | 8×10-4 | |||||
Total Electric Power (kw) | 1.65 | 2.6 | 5.2 | 9.5 | 10.7 | 20.5 | |||||
Main Pump Type | ZL-30 | ZL-70 | ZL-150 | ZL-300 | ZL-600 | ZL-1200 | |||||
Front Stage Pump Type | 2X-8 | 2X-15 | 2X-30 | 2X-70 | KT-300 | KT-500 | |||||
Wire size of power supply input ≥(mm2) | 1 | 1.5 | 3 | 4 | 6 | 8 | |||||
Power Supply | 50Hz 380V (3phase, 4wire) | ||||||||||
Intake connection (mm) | DN50 | DN80 | DN80 | DN160 | DN200 | DN250 | |||||
Exhaust connection (mm) | DN34 | DN60 | DN70 | DN90 | DN70 | DN90 | |||||
Overall Dimensions (cm) | 73×46×100 | 79×55×120 | 105×60×135 | 132×78×150 | 145×86×201 | 168×100×269 | |||||

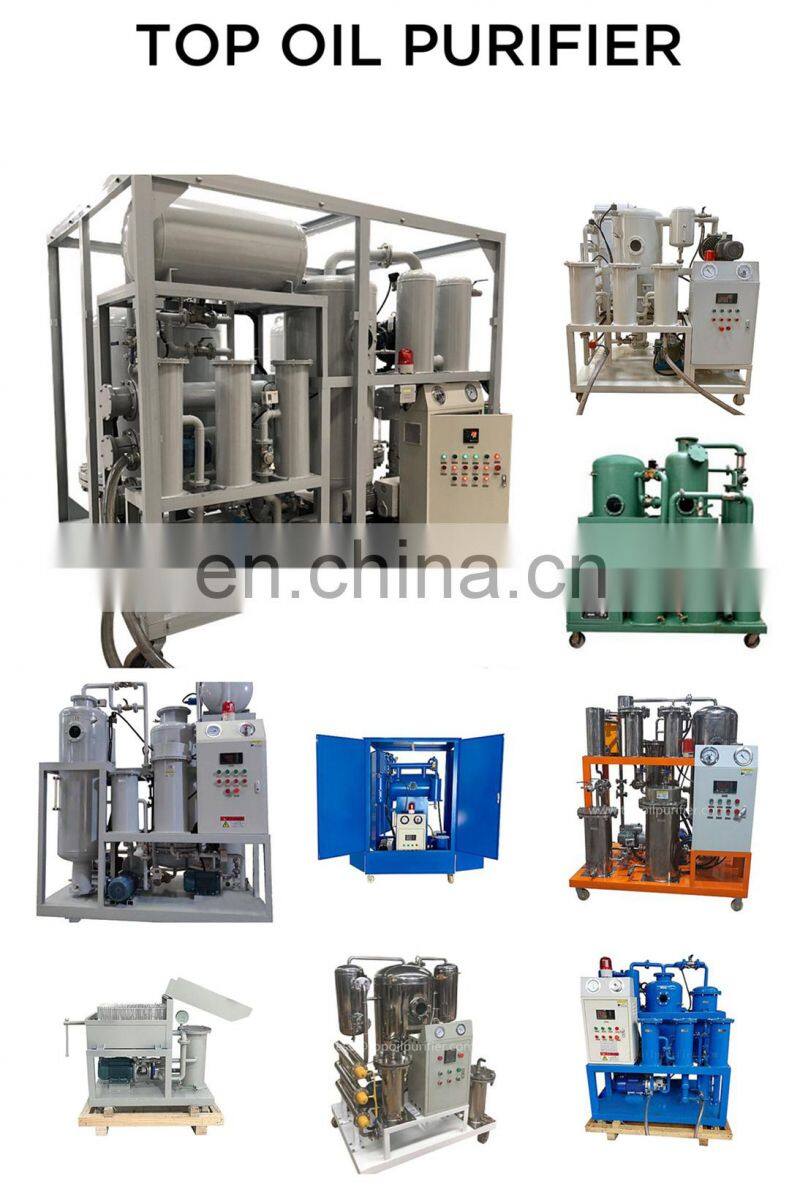

Chongqing TOP Oil Purifier Co.,Ltd, established in 2 0 1 2 , is a professional manufacturer engaged in the research, development, production, sale and service of oil purifiers and various related testers.We are located in Chongqing China - a southwest electromechanical manufacturing center as well as national municipality, which is one of the most well-known oil purifier manufacturers in southwest China. Dedicated to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure full customer satisfaction. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and long service life. In addition, Our company has won C E,S G S certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, Canada, USA, South Africa , Asia etc.. Our company holds the managerial idea that “ Honest treatment,Sincere Communication,Reliable Quality and Service Commitment”, and tries its best to do well at any aspect from each part, each point of procedure of manufacturing to final inspection, packing and shipment. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

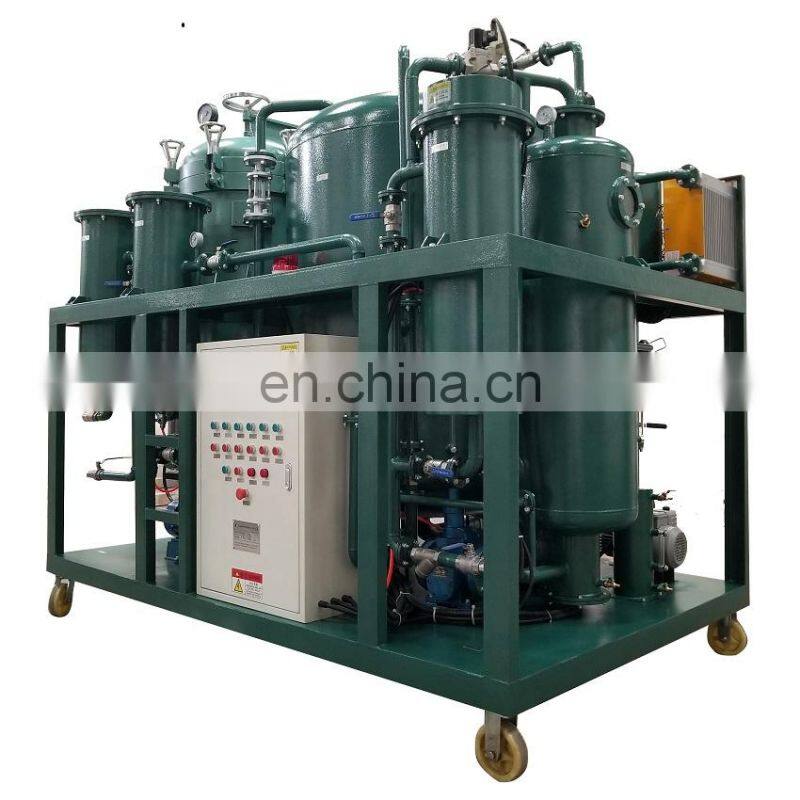

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.










maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
