Product Description

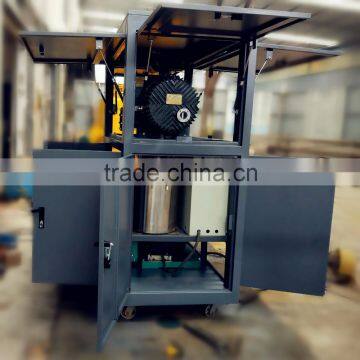

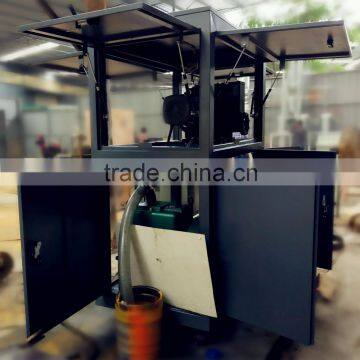

Leybold Vacuum Pump, Vacuuming System, Vacuum Drying Machine For Capacitors
(ZKCC Series)
ZKCC series vacuum pumping system is a new type of vacuuming equipment developed and produced by our company. It is widely used in the process of producing vacuum condition for various equipment. Its vacuum pressure can reach much lower than any other products in the same field.

Application
It is widely used in the vacuuming process in production, installation and maintenance of many electric power equipment like electric power transformer, capacitor etc. It is also used in technical process of industrial production such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc.
Characteristics
1. ZKCC adopts special Roots pump and vacuum pump, so the vacuum pumping speed and pressure are much better.
2. Working vacuum range and maximum vacuum degree are superior to other products.
3. It is installed with special vacuum gauge for accurate indication.
4. It adopts automatic vacuum relay for automatic control.
5. Stable and reliable operation, low noise, easy to move.



Model | ZKCC-30 | ZKCC-70 | ZKCC-150 | ZKCC-300 | ZKCC-600 | ZKCC-1200 |
Pumping Speed (L/s) | 30 | 70 | 150 | 300 | 600 | 1200 |
Pumping Speed (m3/h) | 108 | 252 | 540 | 1080 | 2160 | 4320 |
Ultimate partial pressure (Pa) | 5×10-2 | 5×10-2 | 5×10-2 | 3x10-2 | 3x10-2 | 1×10-1 |
Ultimate partial pressure (Torr) | 3.7×10-4 | 3.7×10-4 | 2×10-4 | 2×10-4 | 2×10-4 | 8×10-4 |
Total Electric Power (kw) | 1.85 | 2.6 | 5.2 | 9.5 | 18.5 | 33 |
Main Pump Type | ZJP-30 | ZJP-70 | ZJP-150 | ZJP-300 | ZJP-600 | ZJP-1200 |
Front Stage Pump Type | 2X-8 | 2X-15 | 2X-30 | 2X-70 | 2X-70 x 2 | 2X-70 x 4 |
Power supply input wire size ≥(mm2) | 1 | 1.5 | 3 | 4 | 6 | 8 |
Power Supply | 50Hz 380V (3phase, 4wire) | |||||
Intake connection (mm) | DN50 | DN80 | DN100 | DN160 | DN200 | DN250 |
Exhaust connection (mm) | DN34 | DN60 | DN70 | DN90 | DN70 | DN90 |
Overall Dimensions (cm) | 73×46×100 | 79×55×120 | 105×60×135 | 132×78×150 | 145×86×201 | 168×100×269 |









Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Certificates



Office & Factory

Onstock & Customers

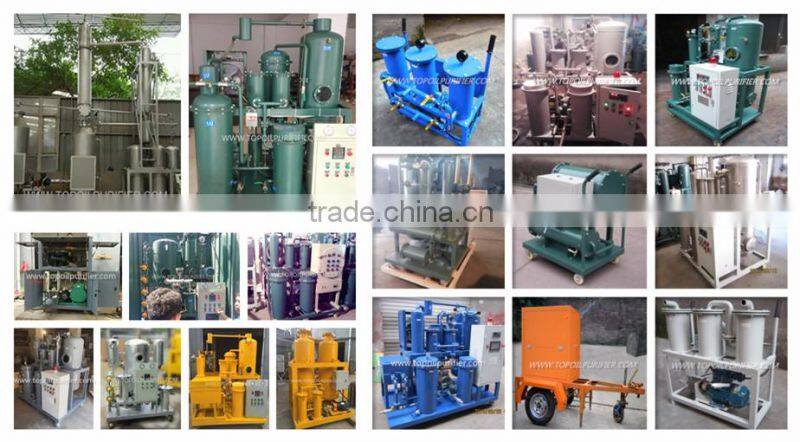

Our oil purification / recycling machines
