Product Description

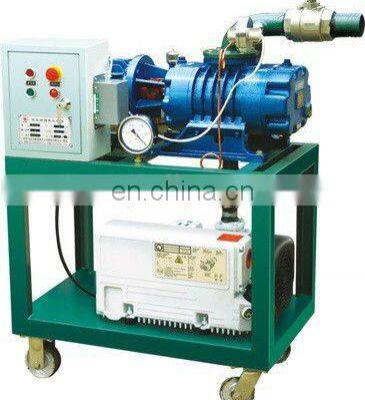

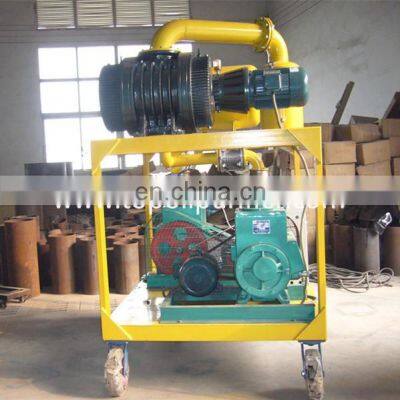

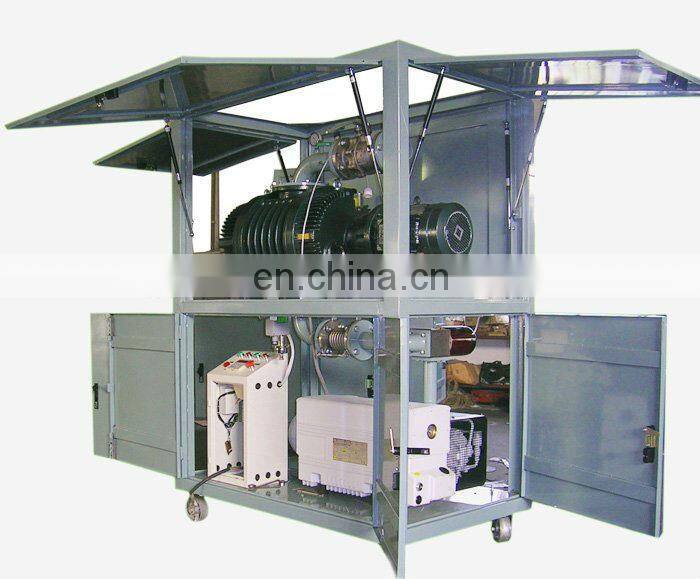

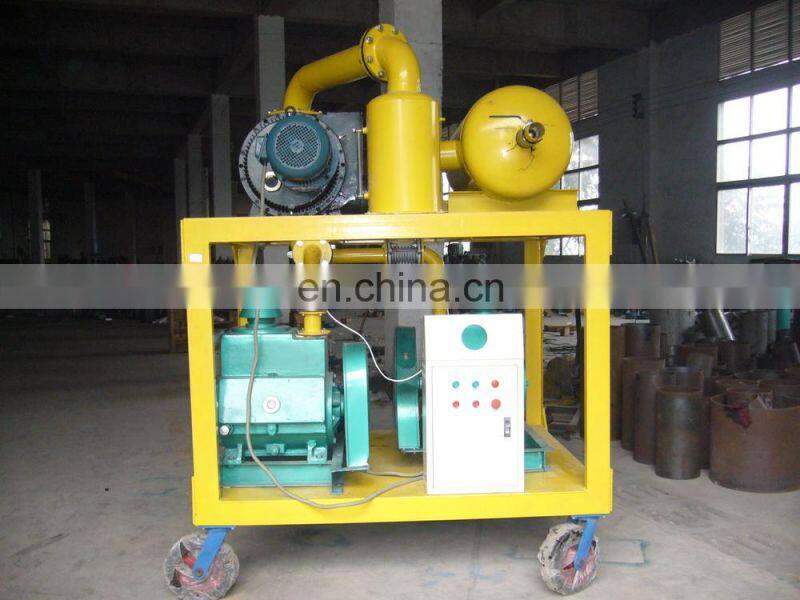

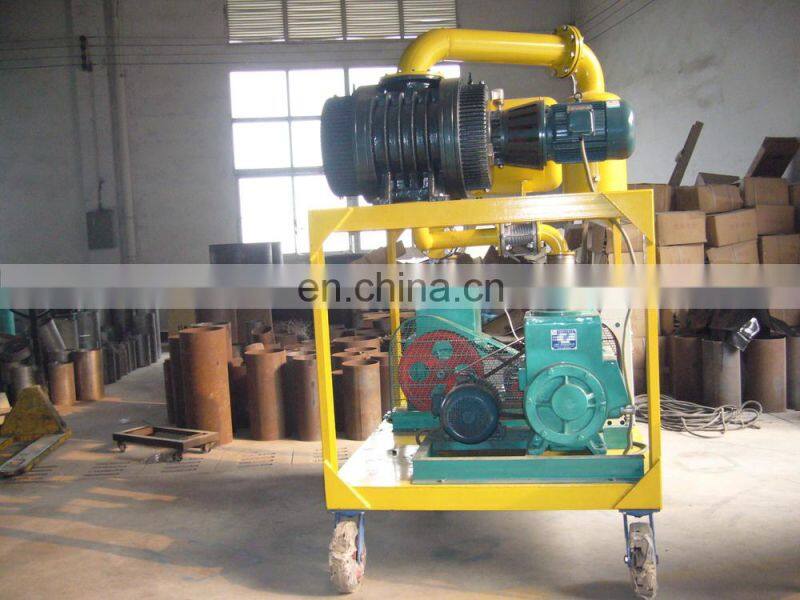

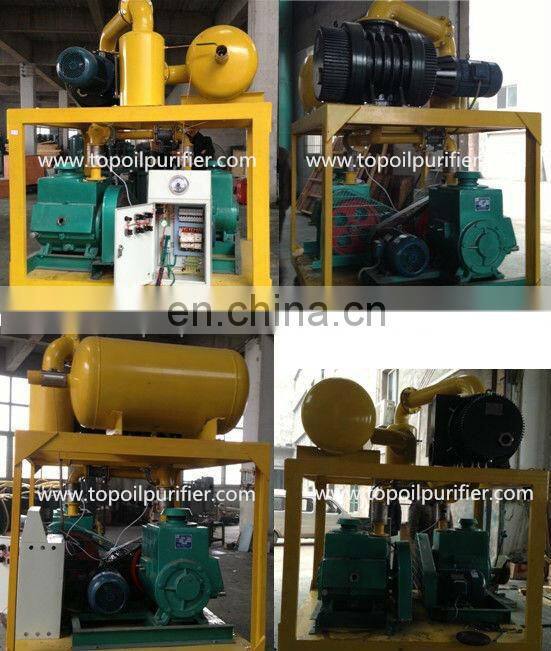

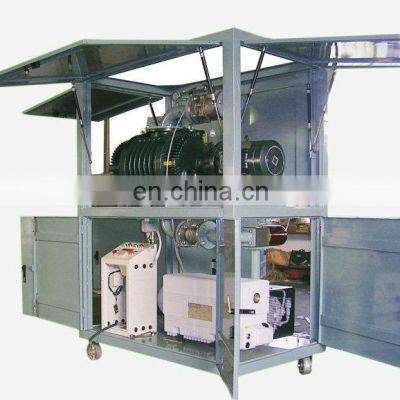

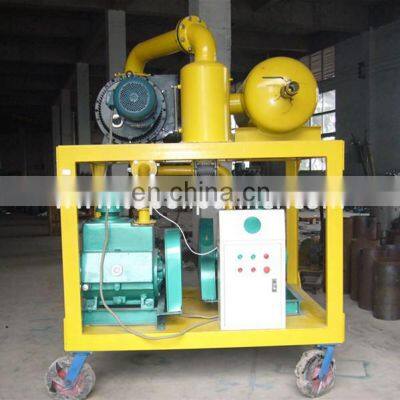

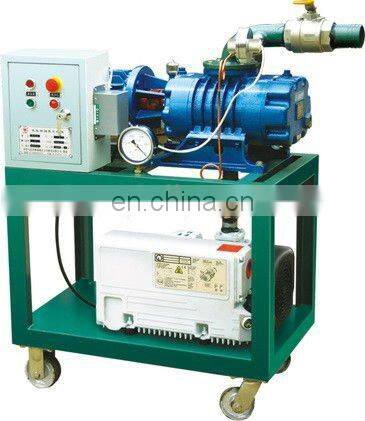

Leybold vacuum pump machine, vacuum drying pump system
Application:
ZKCC series vacuum pump unit is a new type of vacuuming equipment developed and produced by our company. It is widely used in the vacuuming process in the production, installation and maintenance of many electric power equipments, like electric power transformer, capacitor etc., and is also used in the technical process of industrial production, such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc. Its vacuum pressure can reach much lower than any other products in the same field.
Attentions:
It is not suitable for the vacuum process for air and gases containing too much powder, water and oxygen as well as explosive, corrosive, poisonous or chemical substances.
Characteristics:
1. The machine adopts special Roots pump and vacuum pump, so the vacuum pumping speed and pressure, are obviously better than any other devices.
2. Working vacuum range and maximum vacuum degree are superior to other products.
3. It is installed with special vacuum gauge for accurate indication.
4. It adopts automatic vacuum relay for automatic control.
5. Stable and reliable operation, low noise, and easy to move.
Technical Parameter
Technical Parameter | ZKCC-30 | ZKCC-70 | ZKCC-150 | ZKCC-300 | ZKCC-600 | ZKCC-1200 |
Pumping Speed (L/s) | 30 | 70 | 150 | 300 | 600 | 1200 |
Pumping Speed (m3/h) | 108 | 252 | 540 | 1080 | 2160 | 4320 |
Ultimate partial pressure (Pa) | 5×10-2 | 5×10-2 | 5×10-2 | 3x10-2 | 3x10-2 | 1×10-1 |
Ultimate partial pressure (Torr) | 3.7×10-4 | 3.7×10-4 | 2×10-4 | 2×10-4 | 2×10-4 | 8×10-4 |
Total Electric Power (kw) | 1.65 | 2.6 | 5.2 | 9.5 | 10.7 | 20.5 |
Main Pump Type | ZL-30 | ZL-70 | ZL-150 | ZL-300 | ZL-600 | ZL-1200 |
Front Stage Pump Type | 2X-8 | 2X-15 | 2X-30 | 2X-70 | KT-300 | KT-500 |
Wire size of power supply input ≥(mm2) | 1 | 1.5 | 3 | 4 | 6 | 8 |
Power Supply | 50Hz 380V (3phase, 4wire) | |||||
Intake connection (mm) | DN50 | DN80 | DN100 | DN160 | DN200 | DN250 |
Exhaust connection (mm) | DN34 | DN60 | DN70 | DN90 | DN70 | DN90 |
Overall Dimensions (cm) | 73×46×100 | 79×55×120 | 105×60×135 | 132×78×150 | 145×86×201 | 168×100×269 |



Prompt and reliable delivery
Trustable technical and after sale serivece
1. Provide best spare parts at low price (some for free).
2. Provide timely reply and long-term technical support.
3. If anything wrong with the equipment, we would give prompt response and provide solution within 24 hours.
4. If there is technological innovation, we would guide our customer to upgrade.
You can also directly contact:
About us:
Chongqing TOP Oil Purifier Co., Ltd is a professional leading manufacturer and supplier of oil purifiers and oil testers. We have tremendous strength in the fields of research, development and manufacturing with professional mass-production ability, perfect sales network, excellent after-sales service as well as a perfect image we earned in the competitive market.
Our main products are: insulting oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, transformer oil filtering machine, fuel oil restoration, steam-turbine oil reconditioner, dielectric fluid regeneration system, circuit-breaker oil recovering system, compressor oil recovering machine, gear oil renewal machine, coolant oil treatment, quenching oil reclaiming machine, oil and water separator, steel-rolling oil regeneration equipment, waste automobile oil recycling equipment, other petroleum machines; petroleum products testers and other kinds of tester, etc.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, and help a lot with reducing our clients’ energy consumption and the environmental pollution.
Our company takes the mission of existing on the basis of quality as well as developing regarding technical innovation. We introduce foreign advanced technology of vacuum oil purifying, research and manufacture oil purifying equipment available both in domestic and international markets.
Top will as always make great effort to provide the best purifying equipment.
