Product Description
CE Certificate High Vacuum Pump Unit Type 4200 Liters per Min
Model ZKCC-70
Application
It is widely used in the process of producing vacuum condition for various equipment, used in the vacuuming process in production, installation and maintenance of many electric power equipment like electric power transformer, capacitor etc. And it is also used in the technical process of industrial production such as vacuum drying, vacuum distillation, vacuum wielding, vacuum coating etc. Its vacuum pressure can reach much lower than any other products in the same field. It can be equipped with weather-proof enclosure (optional).
It is not recommended for the vacuum process for air and gases containing too much powder, water and oxygen as well as explosive, corrosive, poisonous and chemical substances.
Main Features
1. Adopts special Roots pump and vacuum pump with vacuum pumping speed and pressure much better than other devices.
2. Working vacuum range and maximum vacuum degree are superior to other products.
3. It is installed with special vacuum gauge for accurate indication.
4. It adopts automatic vacuum relay for automatic control.
5. Stable and reliable operation, low noise, and easy to move.
Model | ZKCC-30 | ZKCC-70 | ZKCC-150 | ZKCC-300 | ZKCC-600 | ZKCC-1200 | |||||
Pumping Speed (L/s) | 30 | 70 | 150 | 300 | 600 | 1200 | |||||
Pumping Speed (m3/h) | 108 | 252 | 540 | 1080 | 2160 | 4320 | |||||
Ultimate partial pressure (Pa) | 5×10-2 | 5×10-2 | 5×10-2 | 3x10-2 | 3x10-2 | 1×10-1 | |||||
Ultimate partial pressure (Torr) | 3.7×10-4 | 3.7×10-4 | 2×10-4 | 2×10-4 | 2×10-4 | 8×10-4 | |||||
Total Electric Power (kw) | 1.85 | 2.6 | 5.2 | 9.5 | 18.5 | 33 | |||||
Main Pump Type | ZJP-30 | ZJP-70 | ZJP-150 | ZJP-300 | ZJP-600 | ZJP-1200 | |||||
Front Stage Pump Type | 2X-8 | 2X-15 | 2X-30 | 2X-70 | 2X-70 x 2 | 2X-70 x 4 | |||||
Power supply input wire size ≥(mm2) | 1 | 1.5 | 3 | 4 | 6 | 8 | |||||
Power Supply | 50Hz 380V (3phase, 4wire) | ||||||||||
Intake connection (mm) | DN50 | DN80 | DN100 | DN160 | DN200 | DN250 | |||||
Exhaust connection (mm) | DN34 | DN60 | DN70 | DN90 | DN70 | DN90 | |||||
Overall Dimensions (cm) | 73×46×100 | 79×55×120 | 105×60×135 | 132×78×150 | 145×86×201 | 168×100×269 | |||||

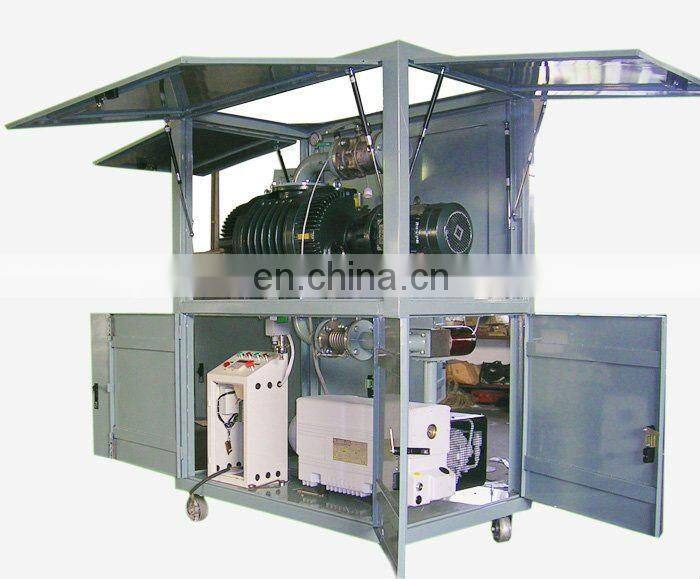

Closed type ZKCC-W-300 (with weather-proof enclosure)


Open type ZKCC

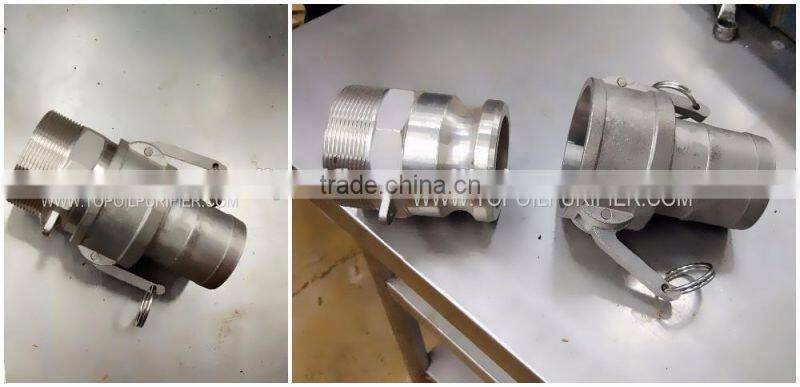

Quick connector

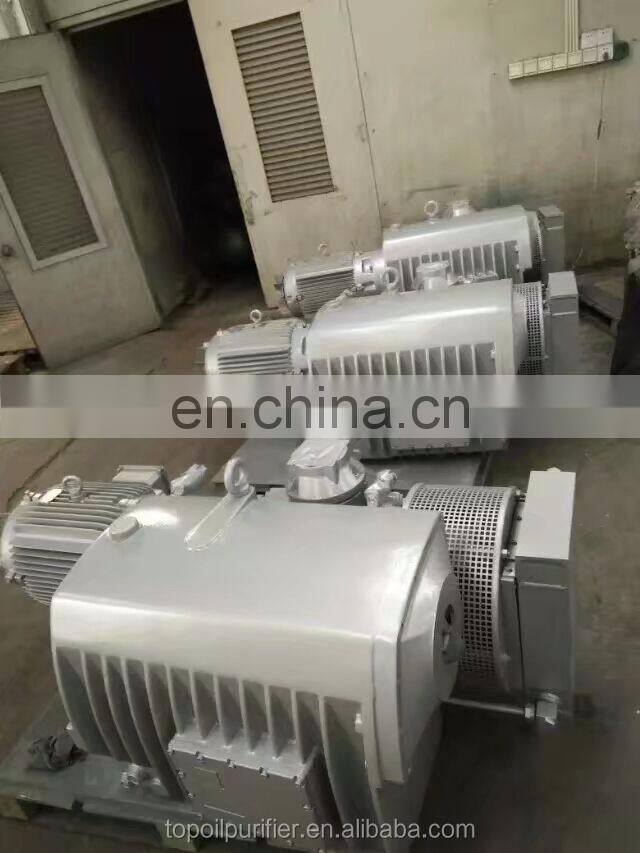

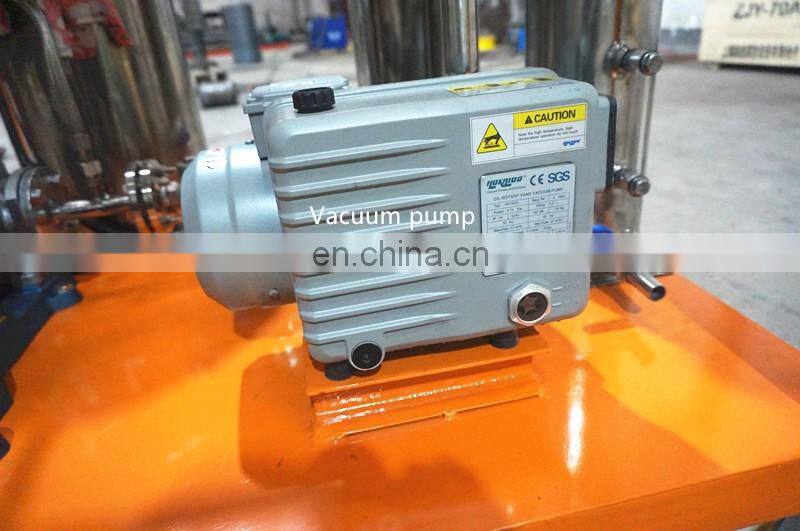

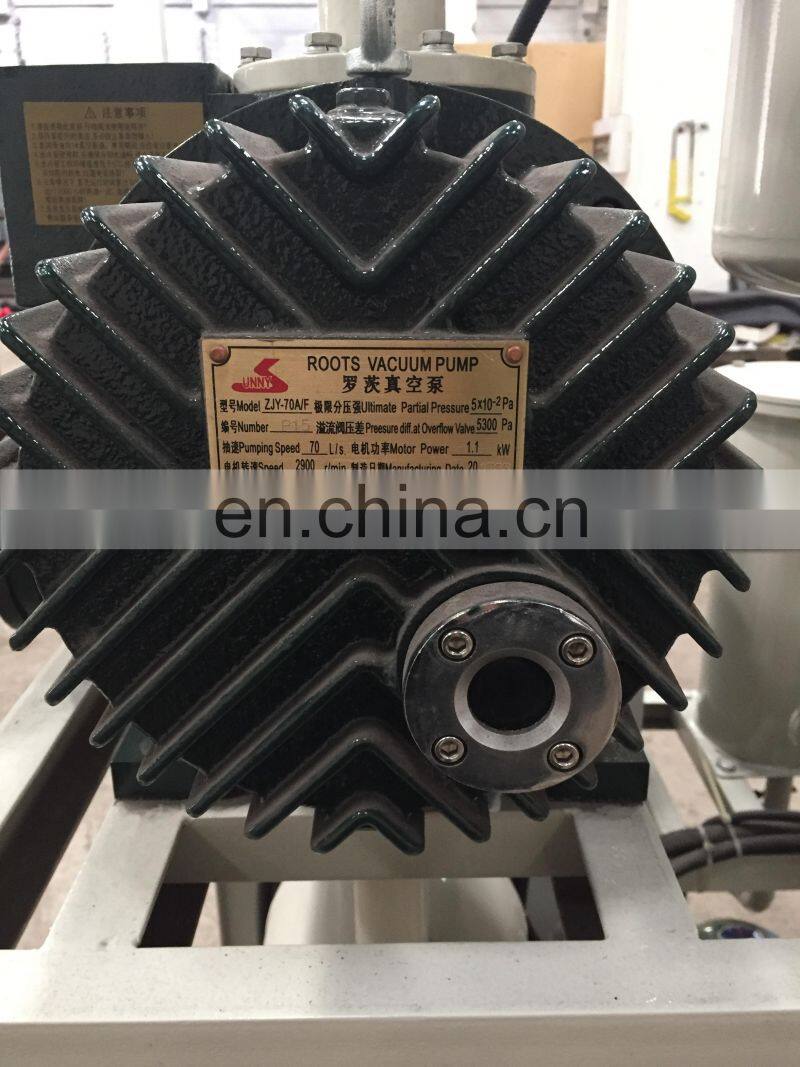

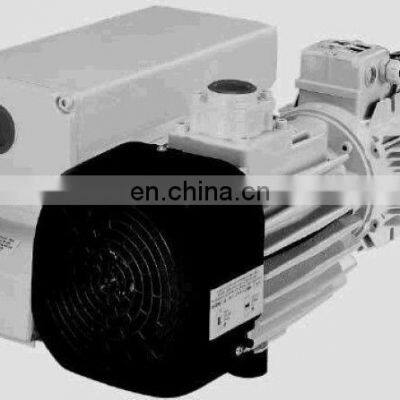

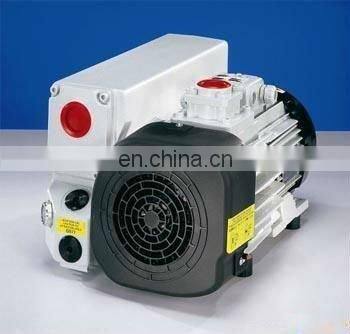

Pumps




Packing: standard export wooden case per set, it's stable enough in long-term transportation.
Shipping method: usually transport by sea, but air freight is available if necessary.








What is the mini order quantity?
MOQ: generally 1 unit/piece/set
What payment methods are supported?
Payment method: By T/T, L/C, Alibaba Trade Assurance etc.
Payment terms: Generally, T/T 40% advanced, the balance paid by T/T when the machine is ready; or 100% irrevocable L/C at sight.
What are the available delivery methods?
Our port location: Chongqing, Shanghai or other main port of China
Delivering to: Worldwide
Delivering method: by sea, by air, by truck, by express, combined transportation
How long is the product date of delivery probably?
Delivery date differs with product type, order quantity, special requirement etc. Usually our big machine delivery date is around 10 ~ 20 days; test equipment or analyzer delivery date is around 5~10 days. Some products have stock, contact us anytime to get more information.
How long is the warranty period?
We warrants the plant supplied under agreed specification against defects in material and workmanship under normal use and service for a period of 2 years after start up of the system.
How is the technical services on the product?
Engineer available to service machinery overseas. If you have any technical question, you are welcome to contact us any time. We will response promptly and answer to your satisfaction. If required and necessary, we can send our engineer to your place to provide technical support.
