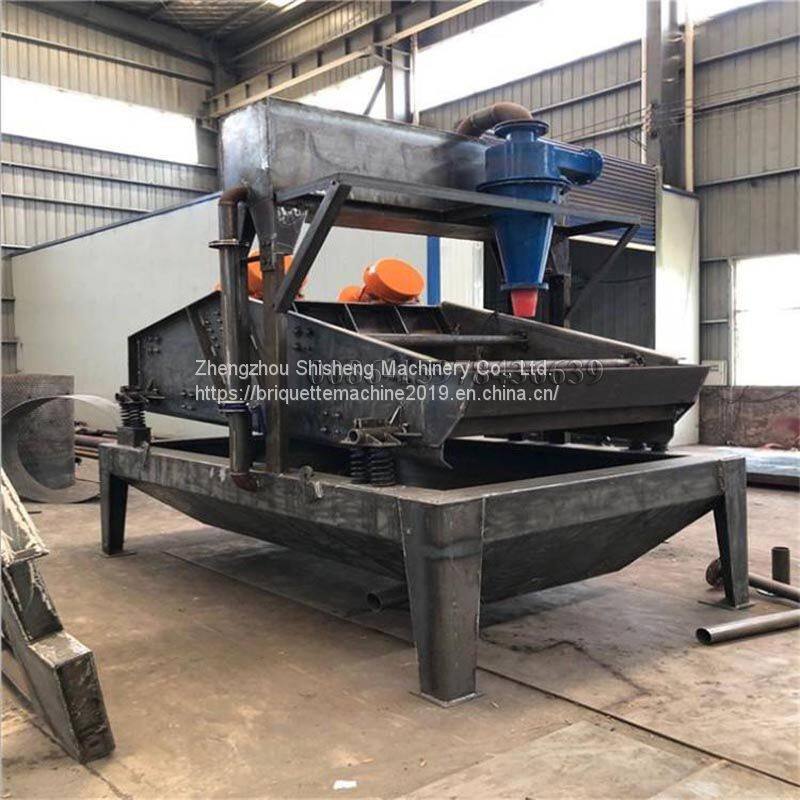

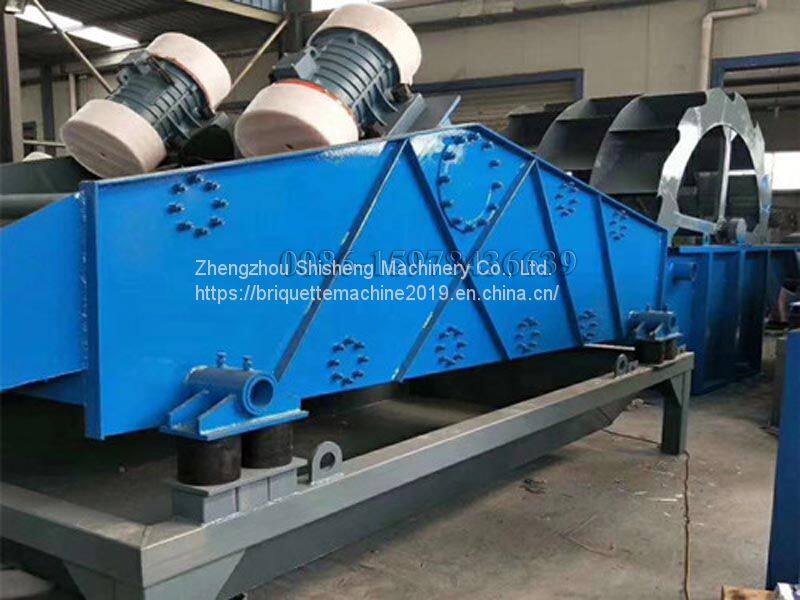

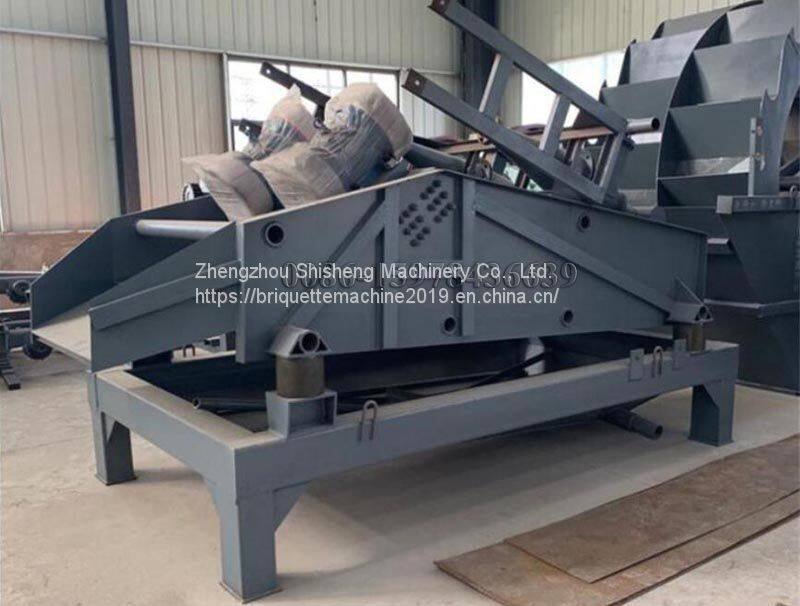

High Frequency Vibrating Dewatering Screen
- Qingdao
- T/T L/C PayPal Other
- 15 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | JM-250 | Certification | ISO, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 years | |
| Weight | 3945kg | Condition | New | |
| Power(W) | 2*0.55kw | Motor Type | AC Motor | |
| Capacity(t/h) | 30-60m3/h |
Product Description
High frequency Vibrating Dewatering Screen
High Frequency Vibrating Dewatering Screen
High Frequency Vibrating Dewatering Screen Introduction:
At present, the existing artificial sand production line, the vast majority of wet production process, no matter what form of sand washing machine, the biggest drawback is the fine sand (0.14mm above the particles) loss of serious, and some even lost 25%, which is not only serious loss, but also seriously affect the grading of sand, resulting in grading unreasonable, fine modulus of coarse grain, greatly reducing the quality of the machine sand products. Excessive sand discharge, but also cause environmental pollution.
In order to solve the above problems, our company has successfully researched BX series High Frequency Vibrating Dewatering Screen, which is an advanced level fine material extraction device designed by our company to absorb advanced foreigh technology and combine with the actual situation of sand powder. Vibrating Dewatering Screen is widely used in hydropower station sand and gravel aggregate processing system, glass raw material processing system, artificial sand production line, coal preparation plant coarse slime recovery and environmental protection projects (mud purification), which can effectively solve the problem of sand recycling.
High Frequency Vibrating Dewatering Screen Technical Parameter:
| Model | Slurry Pump | Cyclone (mm) | Dehydration Vibrating Screen | Processing Capacity (m3/h) | Weight(kg) | |||
| Power(kw) | Model(inch) | Model | Area(m2) | Power(kw) | ||||
| ZX-250 | 7.5 | 2″ | 250 | 0.6*1.5 | 0.9 | 2*0.75 | 10-40 | 3700 |
| ZX-300 | 11 | 2.5″ | 300 | 0.8*2.25 | 1.8 | 2*1.5 | 40-80 | 4200 |
| ZX-350 | 18.5 | 4″ | 350 | 1.0*2.25 | 2.25 | 2*1.5 | 70-120 | 4600 |
| ZX-550 | 22 | 6″ | 550 | 1.2*3.0 | 3.6 | 2*2.2 | 100-120 | 7100 |
| ZX-650 | 30 | 6″ | 650 | 1.2*3.0 | 3.6 | 2*2.2 | 120-260 | 7500 |
| ZX-750 | 37 | 6″ | 750 | 1.4*3.0 | 4.2 | 2*3 | 180-343 | 8310 |
| ZX-75011 | 45 | 8″ | 750 | 1.4*3.75 | 5.25 | 2*5.5 | 230-420 | 8950 |
| ZX-2*650 | 55 | 10″ | 2*650 | 1.6*3.75 | 6 | 2*5.5 | 300-500 | 16700 |
| ZX-2*750 | 75 | 10″ | 2*750 | 1.8*3.75 | 6.75 | 2*7.5 | 350-600 | 19680 |
