- Zhengzhou Shisheng Machinery Co., Ltd.
-
1YrZhengzhou, Henan, China - Main products: Jaw Crusher, Vibrating Screen, Sand Making Machine, Briquette Machine, Drying Machine, Wood Chipper Machine, Laymond Mill, Mobile Crushing Station, Crushing Production Line
Home > Products > Roll Crusher > Types of Roll Crusher
Types of Roll Crusher
- 500 Set / Sets per Month
- Qingdao
- T/T L/C PayPal Other
- 20 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | 2PG400*250 | Type | Roller Crusher | |
| Certification | ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 years | Weight | 1.5t | |
| Dimension(L*W*H) | 1215*834*816mm | Application | It is suitable for medium hard materials crushing process. | |
| Condition | New | Power(W) | 5.5kw*2 | |
| Motor Type | AC Motor | Capacity(t/h) | 5-10t/h |
1). Seaworthy packing as per export container rules, bigger items loose stuff in container and small parts will be tied up in a bundle put into steel boxes or plywood boxes. 2). Delivery will be arranged based on busy or low producing season in our factory, single set machine is normally not more than 10 days, production line is in one month.
Product Description
Types of Roll Crusher
Types of Roll Crusher:
2PG series Types of Roll Crusher is mainly used to crush material which is below the medium hardness, such as clinker mineral, coke, slag, shale, limestone and so on. It is the most suitable for small and medium non-metal mines and chemical industries to undergo secondary and fine crushing. It has the following features: simple structure, reliable performance, less dust.

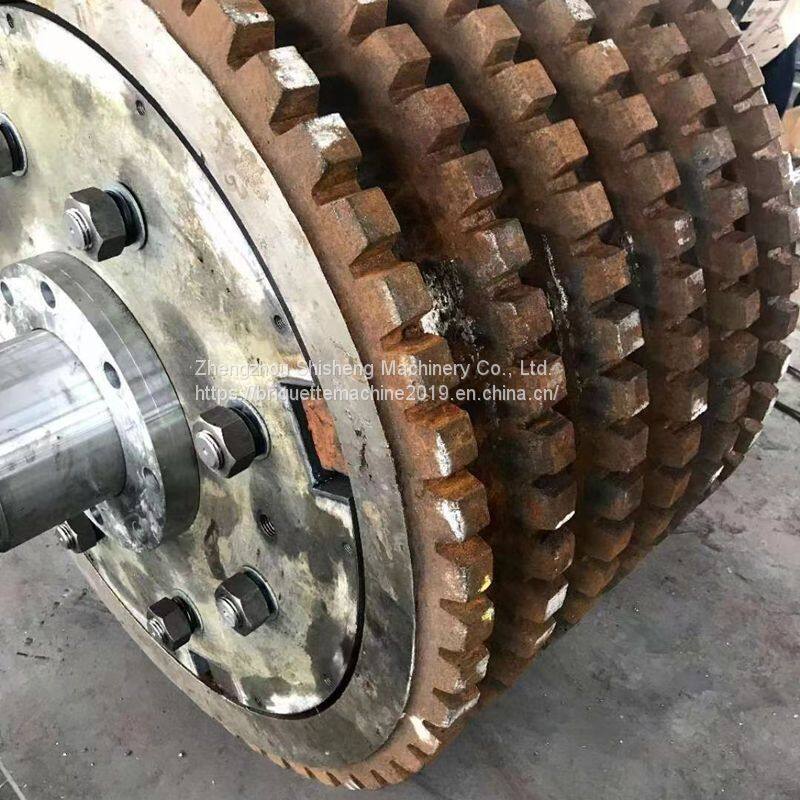

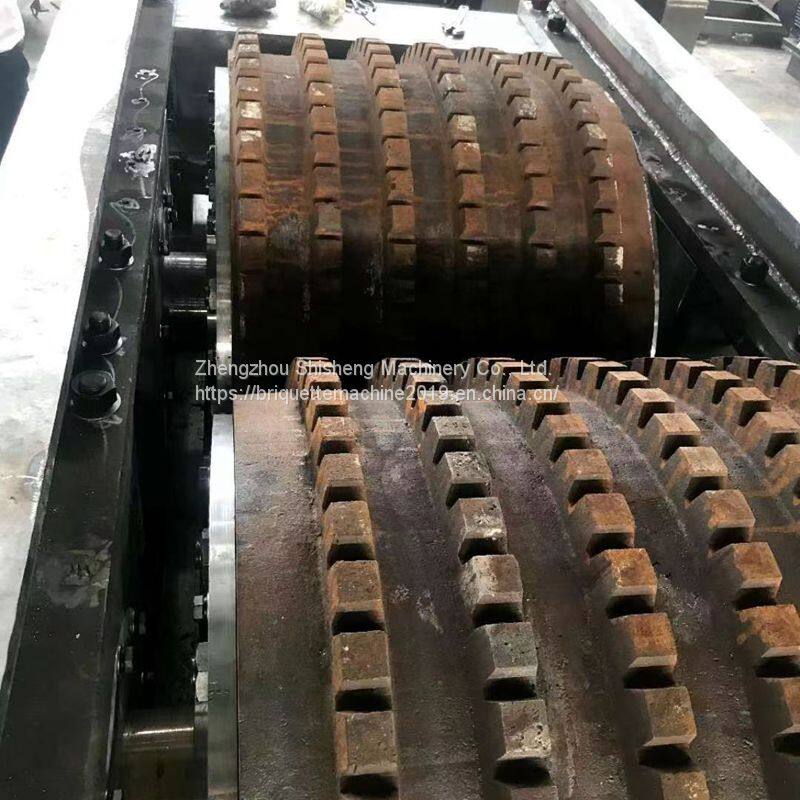

Depending on the requirements, the rolls are smooth or toothed. Due to its sturdy and simple construction, low energy consumption per ton produced, and simple maintenance, the roll crusher is very efficient and effective in operation.

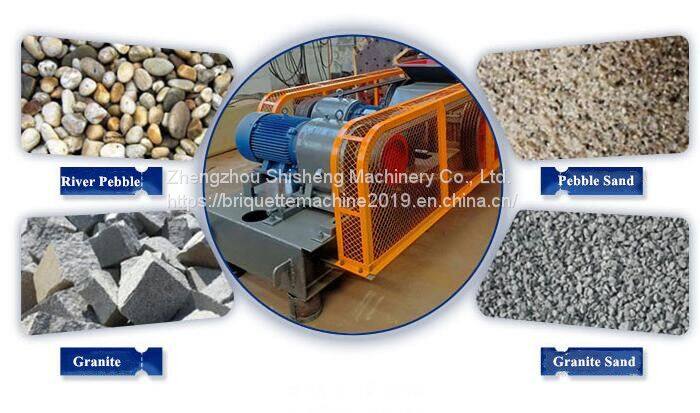

The Types of Roll Crusher has widely application in the industries of mining, building materials, chemical industry, metallurgy, etc. The roller crusher can do secondary and fine crushing of materials with middle hardness or middle minus hardness, such as mineral, rocks, coke, coal, slag, etc.
Types of Roll Crusher Technical Parameter:
| Type | Model&Spe. | Input Size(mm) | Discharge Size(mm) | Capacity(t/h) | Power(kw) | Overall Dimensions(mm) | Weight(t) |
| High-strength Double Roller Crusher | 2PG400*250 | <25 | 1-8 | 5-10 | 5.5*2 | 1215*834*816 | 1.5 |
| 2PG610*400 | <36 | 2-9 | 3-9 | 15*2 | 1785*2365*1415 | 4.5 | |
| 2PG750*500 | <40 | 2-10 | 5-12 | 18.5*2 | 2720*2700*1400 | 10.8 | |
| 2PG750*700 | <40 | 2-10 | 6-16 | 22*2 | 2800*3987*1705 | 12.2 | |
| 2PG900*500 | <40 | 2-10 | 9-30 | 22*2 | 2750*1790*2065 | 15 | |
| 2PG900*900 | <40 | 2-10 | 11-45 | 37*2 | 2750*2180*2065 | 16.8 | |
| 2PG900*1200 | <40 | 3-10 | 15-60 | 55*2 | 2750*2480*2065 | 20.8 | |
| 2PG1200*1000 | <40 | 3-12 | 10-50 | 55*2 | 3690*3430*2700 | 46.8 | |
| 2PG1200*1200 | <40 | 3-12 | 18-68 | 75*2 | 3690*3630*2700 | 48.6 | |
| Four-roller Crusher | 4PG750*500 | 30-60 | 2-10 | 3-10 | 18.5+11 | 2760*3585*2650 | 19.2 |
| 4PG900*700 | 40-100 | 2-10 | 16-20 | 30+12 | 3150*4175*3147 | 28.7 | |
| 4PG900*900 | 40-100 | 2-10 | 20-25 | 45*2 | 3150*2650*3147 | 31.4 | |
| 4PG1200*1000 | 20-40 | 3-10 | 43-68 | 75+40 | 5410*5600*3600 | 67 | |
| Double Tooth Roller Crusher | 2PG450*500 | 100-200 | 25-100 | 12-32 | <11 | 2260*2206*766 | 3.1 |
| 2PG600*750 | 300-600 | 50-125 | 50-75 | <22 | 3265*2850*1310 | 7.4 | |
| 2PG900*900 | <800 | 75-150 | 60-110 | <30 | 3945*3405*1895 | 13.7 | |
| 2PG920*1200 | <800 | 40-100 | 90-150 | <75 | 3848*3480*1394 | 16.7 | |
| 2PG1200*1500 | <1000 | <100 | 150-250 | 2*55 | 8010*4050*2050 | 52 |
Company Profile
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
