- Zhengzhou Shisheng Machinery Co., Ltd.
-
1YrZhengzhou, Henan, China - Main products: Jaw Crusher, Vibrating Screen, Sand Making Machine, Briquette Machine, Drying Machine, Wood Chipper Machine, Laymond Mill, Mobile Crushing Station, Crushing Production Line
Home > Products > Sand Making Machine > Crusher Fine Gravel
Crusher Fine Gravel
- 500 Set / Sets per Month
- Qingdao
- T/T L/C PayPal Other
- 20 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | PXJ800*400 | Type | Other, Fine Crusher | |
| Certification | ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 years | Weight | 3.9t | |
| Dimension(L*W*H) | 3810*1970*2160mm | Application | It is especially suitable for grinding and crushing hard and brittle materials. | |
| Condition | New | Power(W) | 4P 37kw | |
| Motor Type | AC Motor | Capacity(t/h) | 10-30T/H cement clinker |
1). Seaworthy packing as per export container rules, bigger items loose stuff in container and small parts will be tied up in a bundle put into steel boxes or plywood boxes. 2). Delivery will be arranged based on busy or low producing season in our factory, single set machine is normally not more than 10 days, production line is in one month.
Product Description

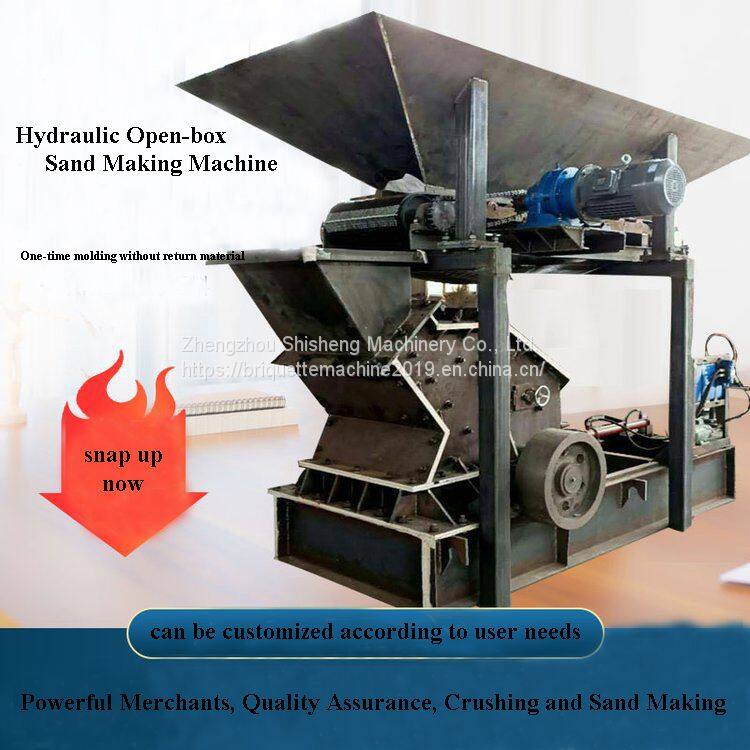

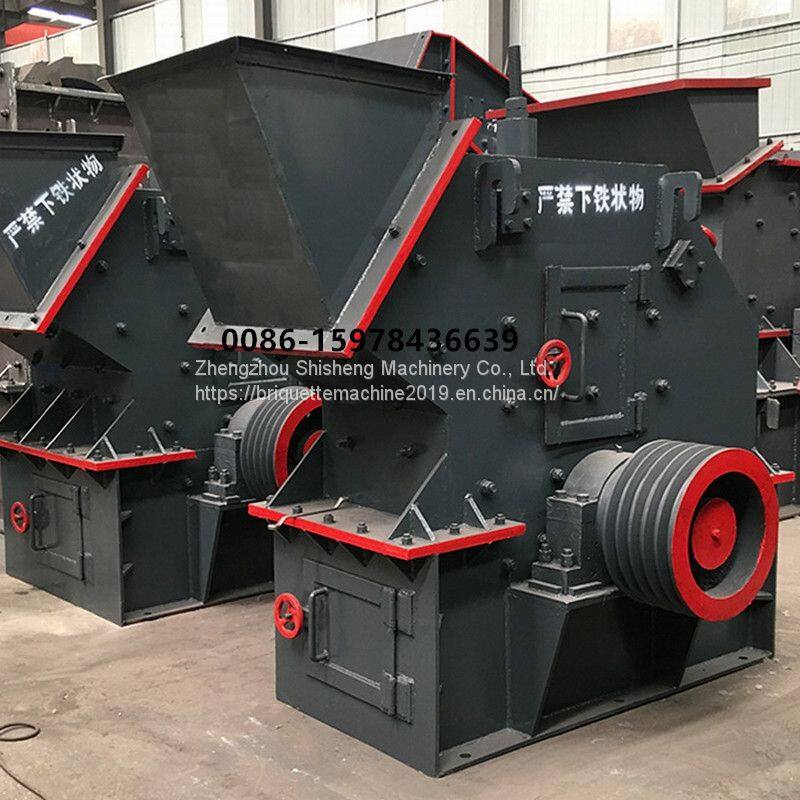

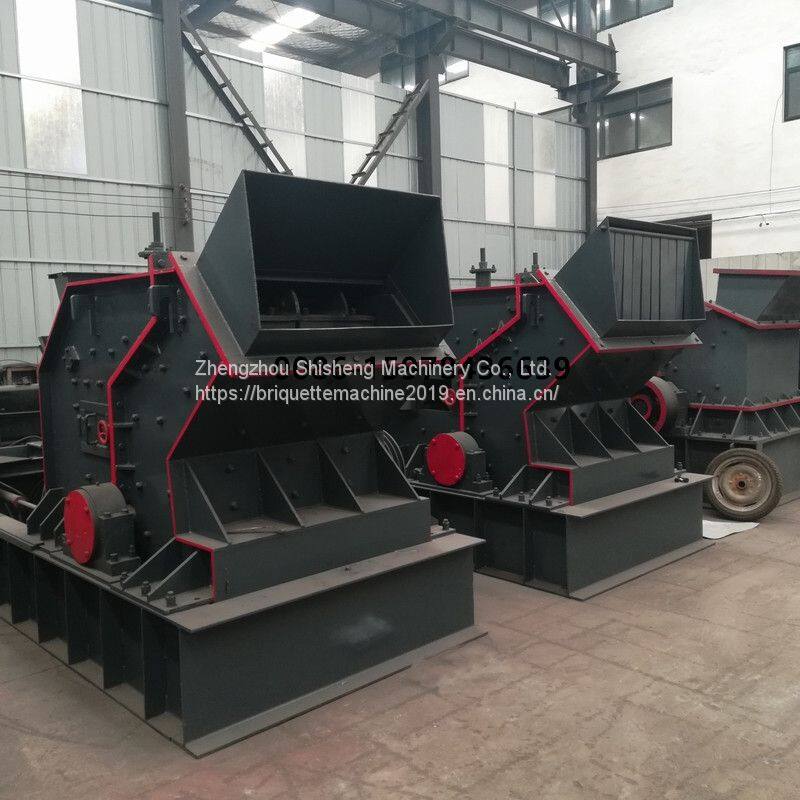

Crusher Fine Gravel
Crusher Fine Gravel Introduction:
Crusher Fine Gravel is the most effective and reliable gravel machine. The new type fine crusher suitable for crushing granite, basalt, limestone, river gravel, cement clinker, quartz, iron ore, bauxite and other minerals. Also the fine crusher could apply to artificial Sand, highway, railway, water conservancy, airport, construction, cement, refractory, metallurgical and other industries for the production of superior quality stone.
Crusher Fine Gravel Features:
1. Feeding size: 120mm-200mm
2. More than 85% of output below 5mm

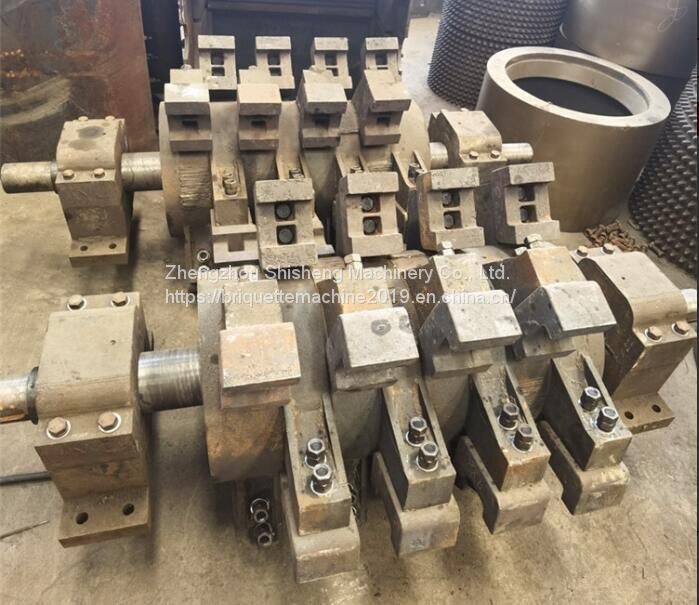

3. Even particle size small, higher output, more durable plate hammer
4. Lower motor power, don’t need thirdly crushing
5. Simple structure, easy maintenance and stable running.
Crusher Fine Gravel Technical Parameter:
| Model | 800*400 | 800*600 | 800*800 | 1010*1010 | 1200*1200 | 1400*1400 | 1600*1600 | 1800*1800 |
| Feeding Inlet(mm) | 400*185 | 500*250 | 550*300 | 1000*350 | 1200*450 | 1500*500 | 1600*550 | 1800*800 |
| Feeding Size(mm) | <120 | <180 | <180 | <180 | <180 | <190 | <190 | <190 |
| Output Size(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Discharge Gap Adjusting Range(mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
| Cement Clinker Capacity(t/h) | 10-30 | 10-40 | 20-45 | 25-55 | 35-90 | 50-150 | 85-210 | 125-270 |
| Limestone Capacity(t/h) | 18-45 | 23-55 | 28-65 | 35-75 | 45-110 | 50-150 | 95-260 | 140-310 |
| Motor Power(kw) | 4P 37kw | 4P 45kw | 4P 45kw | 4P 55kw | 6P 110kw | 6P 160kw | 4P 250kw | 4P 315kw |
| Weight(t) | 3.9 | 4.5 | 6 | 10.5 | 14.4 | 22 | 35 | 49.7 |
Company Profile

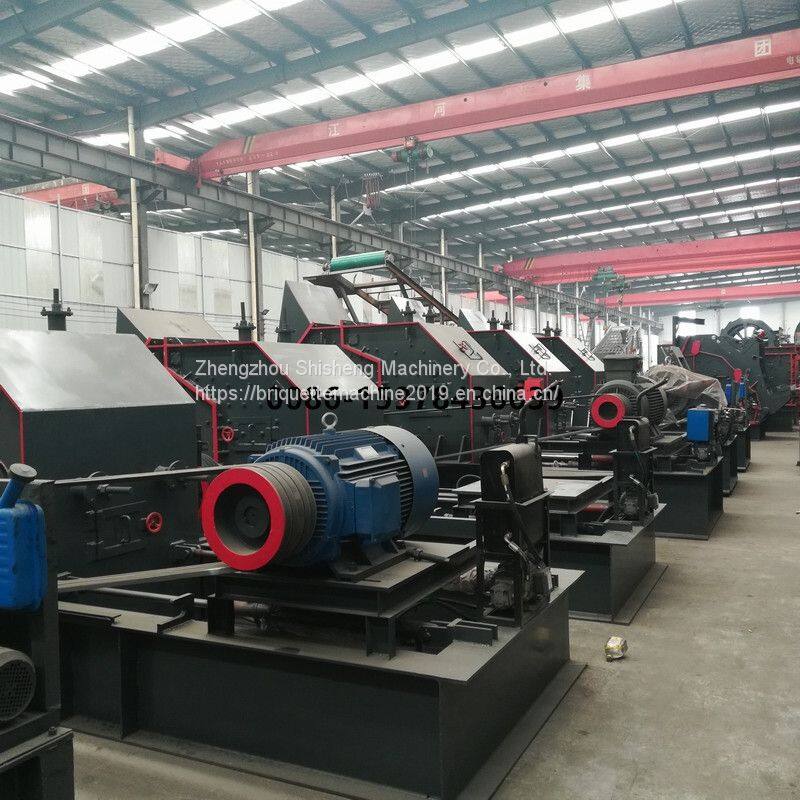

The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
