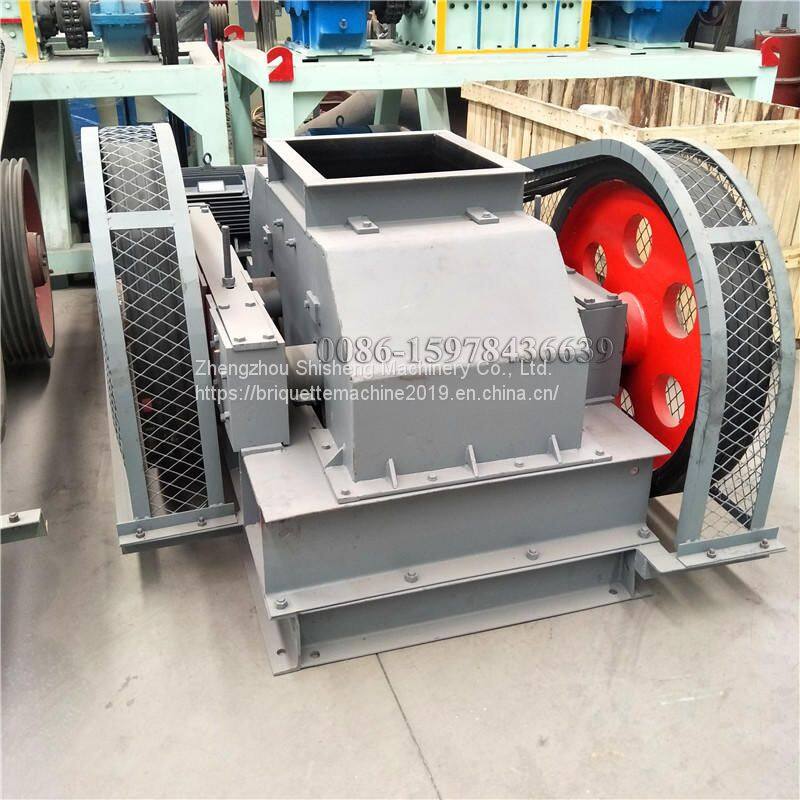

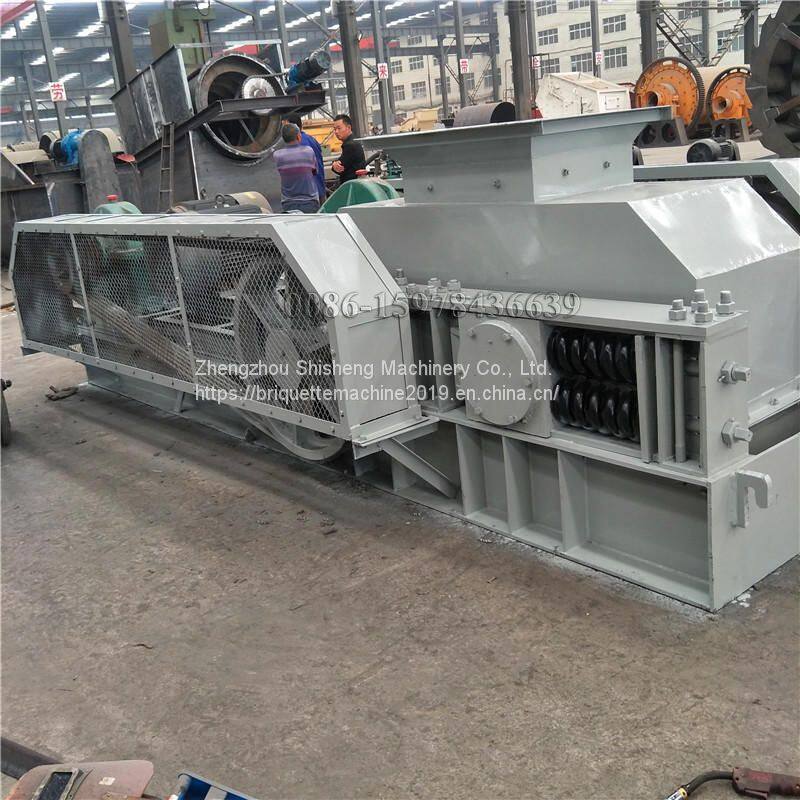

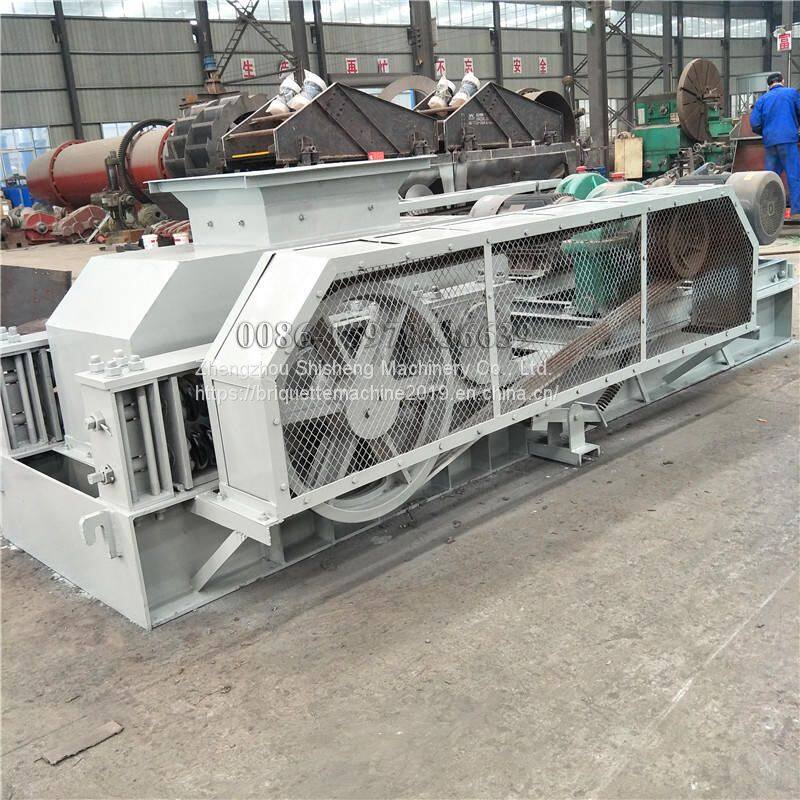

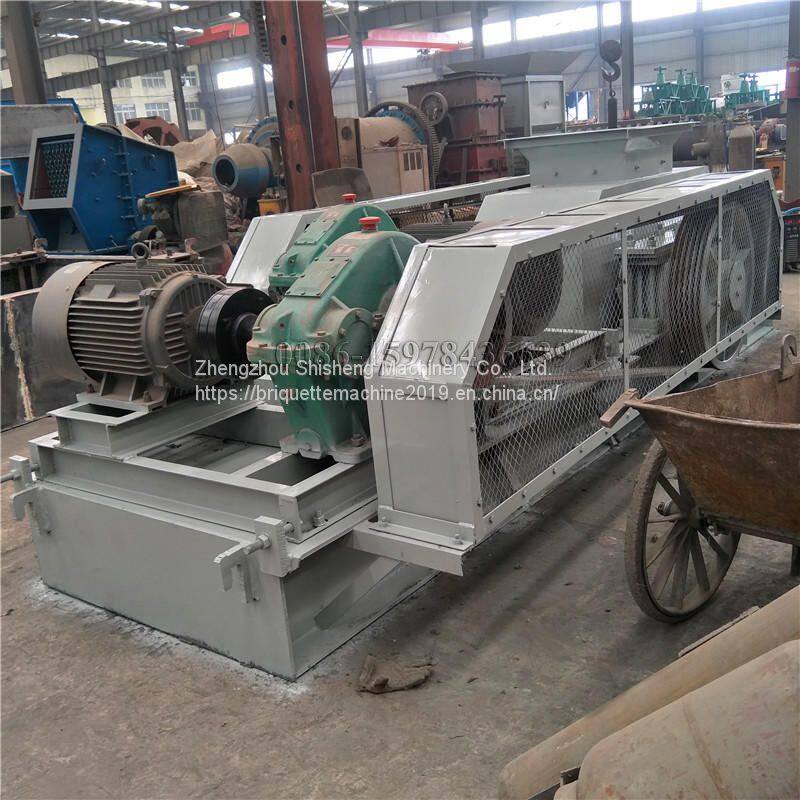

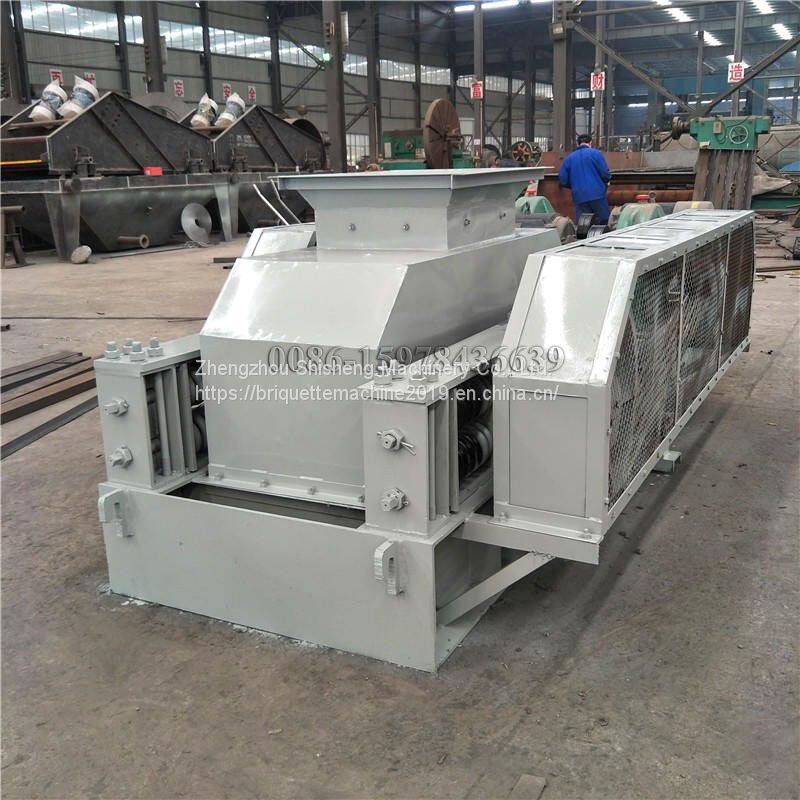

Small Double Roller Crusher
- 500 Set / Sets per Month
- Qingdao
- T/T L/C PayPal Other
- 20 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | 2PG400*250 | Type | Roller Crusher | |
| Certification | ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 years | Weight | 1.5t | |
| Dimension(L*W*H) | 1215*834*816mm | Application | It is suitable for medium hard materials crushing process. | |
| Condition | New | Power(W) | 5.5kw*2 | |
| Motor Type | AC Motor | Capacity(t/h) | 5-10t/h |
1). Seaworthy packing as per export container rules, bigger items loose stuff in container and small parts will be tied up in a bundle put into steel boxes or plywood boxes. 2). Delivery will be arranged based on busy or low producing season in our factory, single set machine is normally not more than 10 days, production line is in one month.
Product Description
Small Double Roller Crusher
Small Double Roller Crusher Introduction:
2PG series Small Double Roller Crusher is mainly used to crush material which is below the medium hardness, such as clinker mineral, coke, slag, shale, limestone and so on. It is the most suitable for small and medium non-metal mines and chemical industries to undergo secondary and fine crushing. It has the following features: simple structure, reliable performance, less dust.
Depending on the requirements, the rolls are smooth or toothed. Due to its sturdy and simple construction, low energy consumption per ton produced, and simple maintenance, the roll crusher is very efficient and effective in operation.
The Small Double Roller Crusher has widely application in the industries of mining, building materials, chemical industry, metallurgy, etc. The roller crusher can do secondary and fine crushing of materials with middle hardness or middle minus hardness, such as mineral, rocks, coke, coal, slag, etc.
Small Double Roller Crusher Technical Parameter:
| Type | Model&Spe. | Input Size(mm) | Discharge Size(mm) | Capacity(t/h) | Power(kw) | Overall Dimensions(mm) | Weight(t) |
| High-strength Double Roller Crusher | 2PG400*250 | <25 | 1-8 | 5-10 | 5.5*2 | 1215*834*816 | 1.5 |
| 2PG610*400 | <36 | 2-9 | 3-9 | 15*2 | 1785*2365*1415 | 4.5 | |
| 2PG750*500 | <40 | 2-10 | 5-12 | 18.5*2 | 2720*2700*1400 | 10.8 | |
| 2PG750*700 | <40 | 2-10 | 6-16 | 22*2 | 2800*3987*1705 | 12.2 | |
| 2PG900*500 | <40 | 2-10 | 9-30 | 22*2 | 2750*1790*2065 | 15 | |
| 2PG900*900 | <40 | 2-10 | 11-45 | 37*2 | 2750*2180*2065 | 16.8 | |
| 2PG900*1200 | <40 | 3-10 | 15-60 | 55*2 | 2750*2480*2065 | 20.8 | |
| 2PG1200*1000 | <40 | 3-12 | 10-50 | 55*2 | 3690*3430*2700 | 46.8 | |
| 2PG1200*1200 | <40 | 3-12 | 18-68 | 75*2 | 3690*3630*2700 | 48.6 | |
| Four-roller Crusher | 4PG750*500 | 30-60 | 2-10 | 3-10 | 18.5+11 | 2760*3585*2650 | 19.2 |
| 4PG900*700 | 40-100 | 2-10 | 16-20 | 30+12 | 3150*4175*3147 | 28.7 | |
| 4PG900*900 | 40-100 | 2-10 | 20-25 | 45*2 | 3150*2650*3147 | 31.4 | |
| 4PG1200*1000 | 20-40 | 3-10 | 43-68 | 75+40 | 5410*5600*3600 | 67 | |
| Double Tooth Roller Crusher | 2PG450*500 | 100-200 | 25-100 | 12-32 | <11 | 2260*2206*766 | 3.1 |
| 2PG600*750 | 300-600 | 50-125 | 50-75 | <22 | 3265*2850*1310 | 7.4 | |
| 2PG900*900 | <800 | 75-150 | 60-110 | <30 | 3945*3405*1895 | 13.7 | |
| 2PG920*1200 | <800 | 40-100 | 90-150 | <75 | 3848*3480*1394 | 16.7 | |
| 2PG1200*1500 | <1000 | <100 | 150-250 | 2*55 | 8010*4050*2050 | 52 |
