Fine Crusher
- Qingdao
- T/T L/C PayPal Other
- 20 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | PXJ800*400 | Type | Other, Fine Crusher | |
| Certification | ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 years | Weight | 3.9t | |
| Dimension(L*W*H) | 3890*1790*2160mm | Application | It is especially suitable for grinding and crushing hard and brittle materials. | |
| Condition | New | Power(W) | 4P 37kw | |
| Motor Type | AC Motor | Capacity(t/h) | 10-30T/H cement clinker |
Product Description

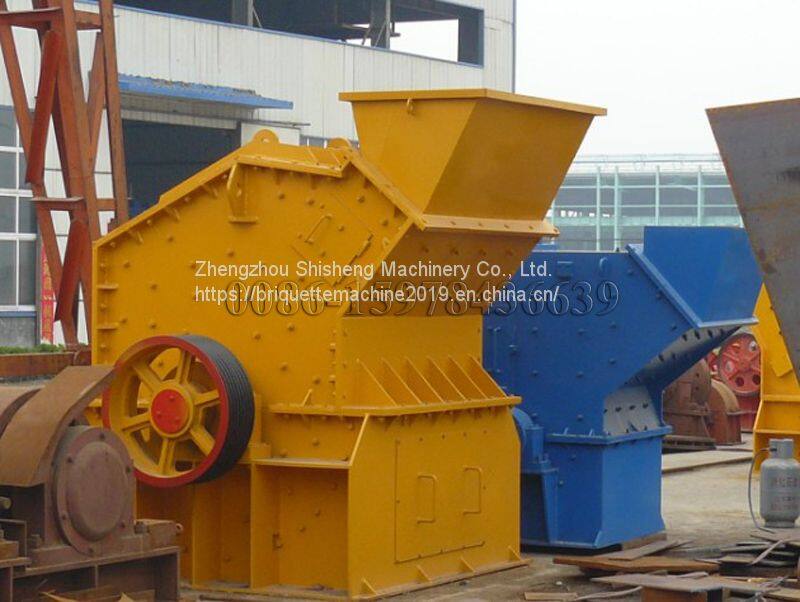

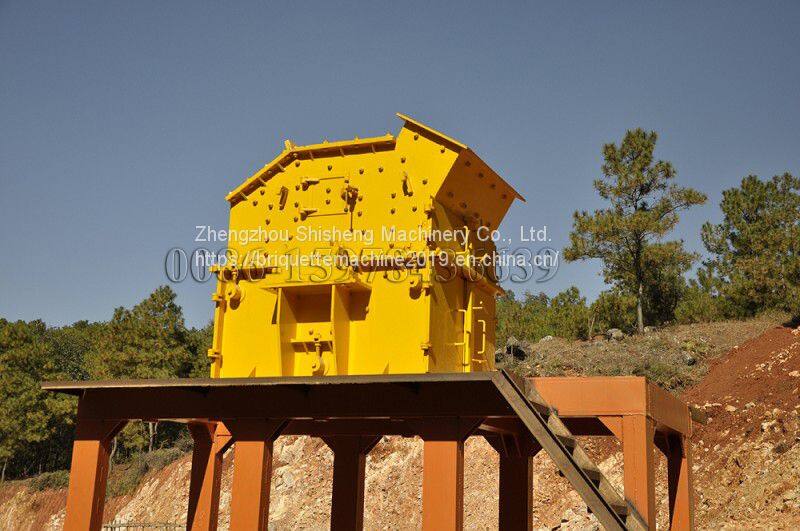

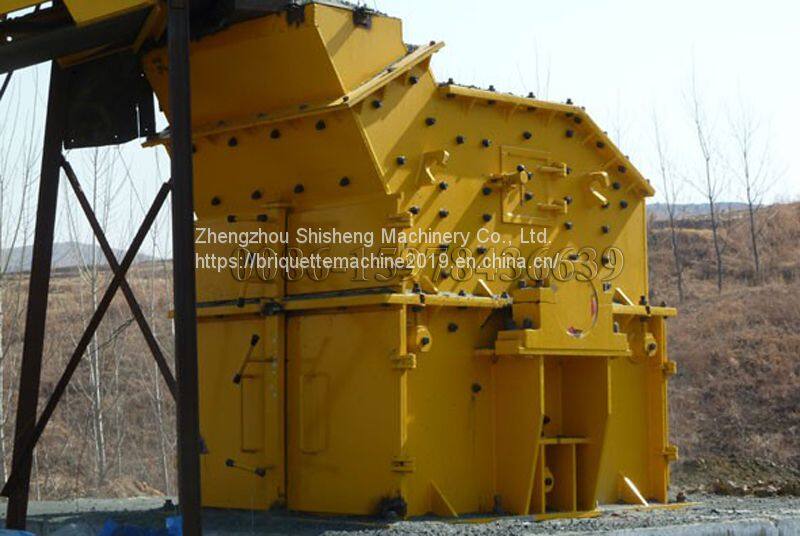

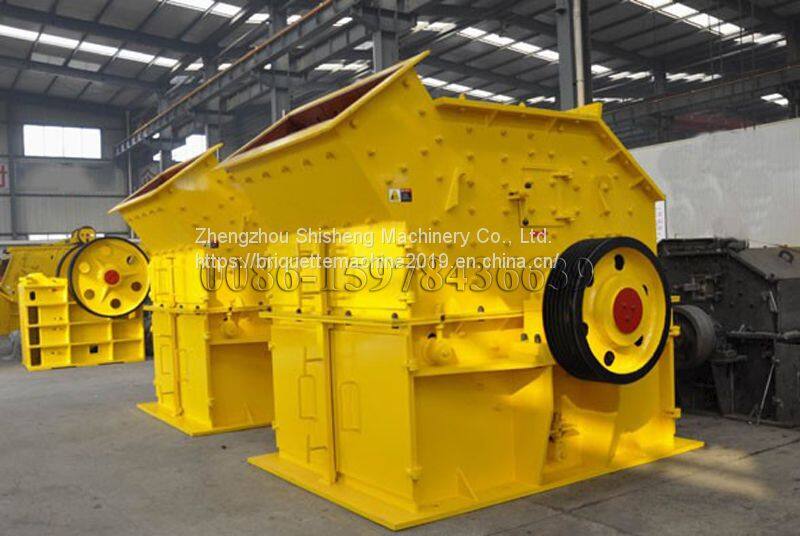

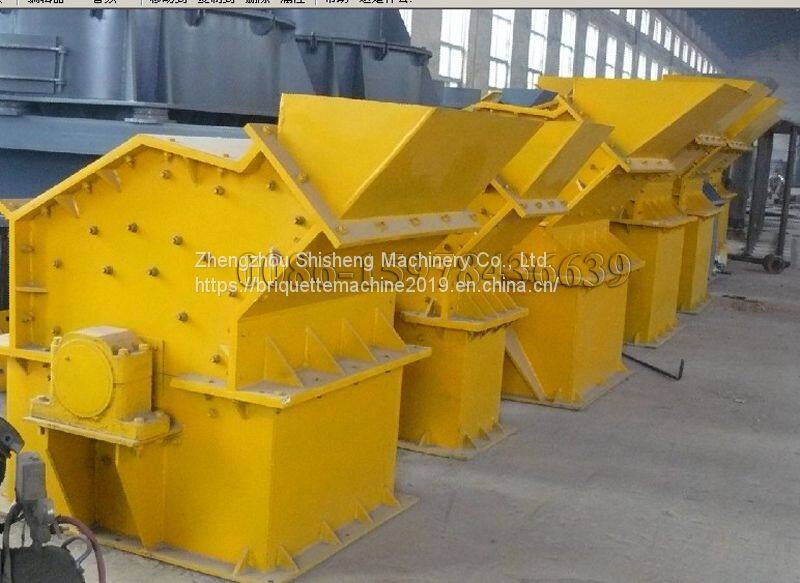

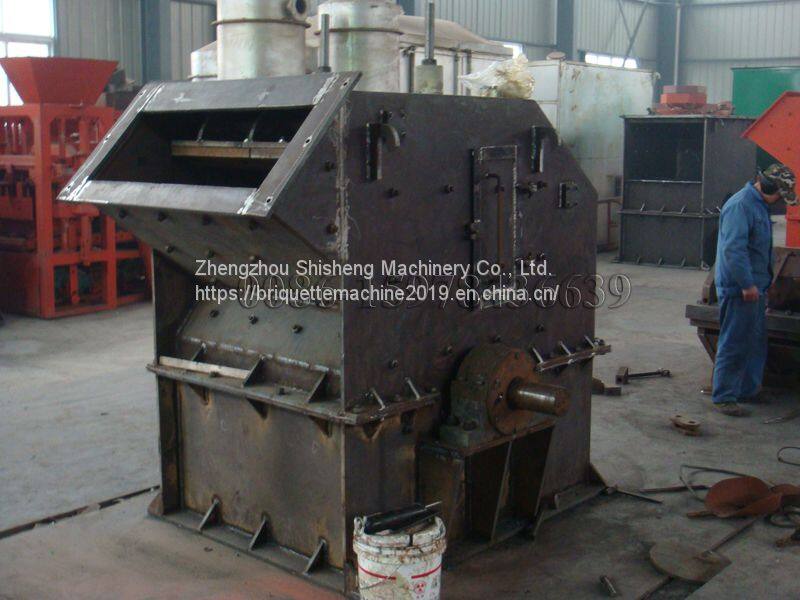

Fine Crusher
Fine Crusher Introduction:
Fine Crusher is the most effective and reliable gravel machine. The fine crusher suitable for crushing granite, basalt, limestone, river gravel, cement clinker, quartz, iron ore, bauxite and other minerals. Also the fine crusher could apply to artificial Sand, highway, railway, water conservancy, airport, construction, cement, refractory, metallurgical and other industries for the production of superior quality stone.
Fine Crusher Features:
1. Feeding size: 120mm-200mm
2. More than 85% of output below 5mm
3. Even particle size small, higher output, more durable plate hammer
4. lower motor power, don’t need thirdly crushing
5. Simple structure, easy maintenance and stable running.
Fine Crusher Technical Parameter:
| Model | 800*400 | 800*600 | 800*800 | 1010*1010 | 1200*1200 | 1400*1400 | 1600*1600 | 1800*1800 |
| Feeding Inlet(mm) | 400*185 | 500*250 | 550*300 | 1000*350 | 1200*450 | 1500*500 | 1600*550 | 1800*800 |
| Feeding Size(mm) | <120 | <180 | <180 | <180 | <180 | <190 | <190 | <190 |
| Output Size(mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Discharge Gap Adjusting Range(mm) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
| Cement Clinker Capacity(t/h) | 10-30 | 10-40 | 20-45 | 25-55 | 35-90 | 50-150 | 85-210 | 125-270 |
| Limestone Capacity(t/h) | 18-45 | 23-55 | 28-65 | 35-75 | 45-110 | 50-150 | 95-260 | 140-310 |
| Motor Power(kw) | 4P 37kw | 4P 45kw | 4P 45kw | 4P 55kw | 6P 110kw | 6P 160kw | 4P 250kw | 4P 315kw |
| Weight(t) | 3.9 | 4.5 | 6 | 10.5 | 14.4 | 22 | 35 | 49.7 |
