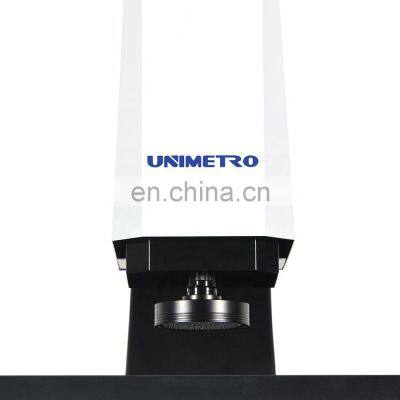

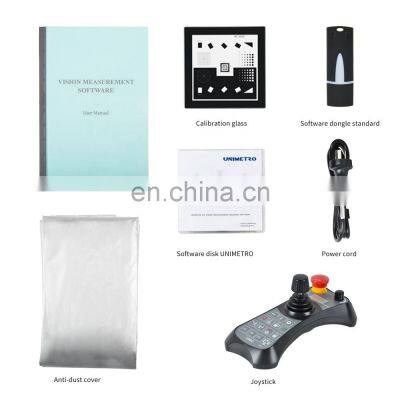

Economical Auto Machine Optic VMM Vision Inspection Image Measurement Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Economical Auto Online Vision Inspection System Vision Measuring Instrument Image Measuring System
-
Economical Auto Machine Vision Inspection System Vision Measurement Machine Vmm
-
Economical Auto Vision Inspection System Dimensions Measuring Instrument VMM
-
Economical Auto 3d Measurement System Vision Testing Equipment With Machine Vision Software
-
VMM Video Measuring Machine
-
Auto Focus Optics Instruments Optical Inspection Machine Optical Vision Measuring Machine VMM For Electronics
Product Description
Vision measurement machine is an instrument used for accurate physical dimension measuring, accuracy up to micron level. Vision measurement machine an optical measuring instrument using the camera to capture the image of the work piece, analyse the image pixel and calculate the 2D dimension with the measuring software.
CNC vision measurement machine is a powerful dimension measuring device designed for mass production quality control process. It is configured with powerful software which makes the measuring process programmable, users can achieve big quantity products measuring by full automatic process.
PEAK series is an economical model of full automatic CNC vision developped by UNIMETRO. The simple and integrated design allow us to build the machine with lower cost, in the mean time keep the high measuring accuracy and best performance. Users are able to enjoy the advantage of high efficiency and labor cost saving from a full CNC vision measurement machine with very low price.
We carry the philosophy of simple and stable in the designing process of the PEAK series through to the end. We eliminate the unnecessary mechanical parts, integrate all the electronics inside the mechanical structure, optimize the wiring, to ensure the machine stability and easy maintainence.
The PEAK series support multiple measuring sensors solution. Touch probe, laser sensor and white light sensor are all compatible. Which allows much wider application range for different measuring requirement.
Thanks to the optimize design, powerful software function and great second development potential, the PEAK series can be applied for different industries and in different scenario.
PEAK series optical measuring machine is an important instrument used in your products quality control process. It ensures your products dimension accuracy, makes your products more competitive.
PEAK Series vision measurement machine is designed and developed by UNIMETRO, which is a popular model fit for most of the accurate 2D dimension measuring application and end users from different industries, as Mold, Electronics, Semi conductor, Plastic Injection, 3C products, Medical care, Aviation...etc.
The PEAK series VMM is capable to measure geometrical elements such as point, circle, line, angle, retangle, also able to measure dimension such as distance, roundness, straightness, concentricity etc.
PEAK series VMM is created with compact design concept, using high accuracy and stability granite as machine base, high quality aluminum column and work stage, all the electrics are embedded inside the column, ensures the compact and reasonble structure of the machine body. Detailed oriented assembling and quality control process, ensure each machine’s high performance and accuracy.
PEAK series vision measurement machine is using high accuracy V type cross slides, ensures low noise and high dynamic performance. Aluminum work stage and high quality surface painting, ensures long life cycle usage of the machine.
PEAK series is using an integrated core control box which is developed by UNIMETRO, for 3 axis servo motors, linear scales, light control, joystick control, limit switches, and touch probe signal transfering, ensure easy wiring and maintainence. Highly increase the stability of the machine.
PEAK series optical measuring machine is configured with 5 rings 8 section software control multiple angle LED ring light, which can offer multiple illuminating angle and brightness, fit for parts with different shape and materials, offers more flexibility during the measuring process. Programmable contour LED light with parallel light path, avoids the deformation of the image, ensures the measuring accuracy.
PEAK Series vision measurement machine is campatible with multiple option of powerful measuring software. Which are with diversified measuring function, CAD file input and comparing, easy output of measuring report, and SPC analyse of the measuring results data.
MULTIPLE APPLICATIONS
HARDEARE CONFIGURATION
◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Aluminum work stage and hard anodizing
◉ Compatible with Renishaw touch probe(optional)
◉ 3 rings 8 section LED ring light software control and programmable
◉ Parallel light path LED contour light software control and programmable
◉ Confocal Fiber Displacement Sensor(optional)
◉ HIWIN linear guide way
◉ Z axis motorized control
◉ Integrated core control box
◉ Industrial grade CCD camera
◉ Manual pulsegenerator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing (optional)
◉ 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor
Confocal Fiber Displacement Sensor Application; The PEAK series VMM is compatible with full line of Omron fiber measuring sensors, which offers; More possibility of precise measurement requirement.
Stable measurements of inclined or curved surfaces
Stable measurements of different materials types
Stable measurements of smooth or coarse surfaces
Stable measurements of different materials types
Stable measurements of smooth or coarse surfaces
PEAK series VMM is compatible with Renishaw touch probe as optional configuration. Users can easily achieve 2D and 3D measuring function in one machine. The software can calculate the offset between the optical lens and touch probe, makes sure that all measuring results are within one coordinates system. The measuring results can be out put as 3D drawing for reverse engineering.
SOFTWARE FUNCTION
The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and precise measuring. The software is offering full English language UI, also allows new language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
PARAMETER
PEAK300 | PEAK400 | PEAK500 | |||
Dimension(mm)(L*W*H) | 850*650*1060 | 1000*800*1080 | 1150*950*1100 | ||
Measuring Range(mm)(X*Y*Z) | 300*200*200 | 400*300*200 | 500*400*200 | ||
Accuracy(um) | 3+L/200 | 3+L/200 | 3+L/200 | ||
Repeatability(um) | 3 | 3 | 3 | ||
Weight(kg) | 120 | 150 | 220 | ||
Camera | Industrial grade analog CCD camera and SV2000E video card | ||||
Lens | Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional) | ||||
Magnification | 18-188X (Different combination of camera and lens leads to different magnification range | ||||
FOV | 8.1-1.3mm (Different combination of camera and lens leads to different FOV range) | ||||
Working Distance | 108mm | ||||
Linear scales resolution | 0.0005mm | ||||
Illumination | Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light | ||||
AFTER-SALES SERVICE
◉ 24 month warranty
◉ 30 minute quick response
◉ Technician one-to-one service
◉ Telephone hotline
◉ Online video service
◉ 7 x 24-hour online customer servicePAYMENT & LOGISTICS
