3104 Remote Particle Counter for online clean room monitoring system

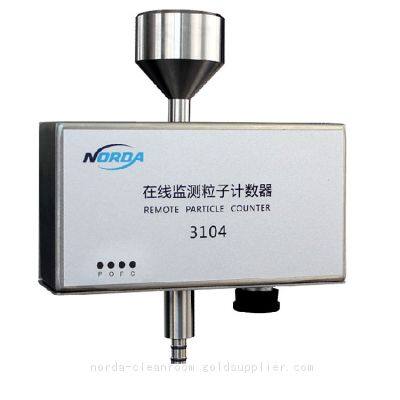

3104 Remote Particle Counter

3104 Remote Particle Counter for online clean room monitoring system!

Instruction

The remote dust particle sensor is mainly used in the clean workshop which requires high cleanliness in the electronics industry and pharmaceutical industry. This sensor is easy to install and realize the warning, thus fully reducing the risk of bad product quality caused by air cleanliness pollution in production or experimental environment.

■ Real time monitoring with software

■ Four-color status indicator lights - status indication

■Provide multifunctional accessory selection, which can be set up and installed in various places.

■Online monitoring, operation for 24 hours x 7 days.

■Stronger extension function,Optional single pump(one remote particle counter matching with one pump)

The on-line particle counter system is a real-time monitoring system that can monitor the environmental cleanliness level, temperature and humidity of each measurement position in real time and dynamically. It has functions such as control, alarm, data backup, and query. The system includes a remote particle counter, other environmental sensors, monitoring software, alarm, vacuum pump system, signal acquisition processor, etc.

Application Monitoring in Clean rooms; Specific locations monitoring

Specification Model： 3104 Size Channels 0.5 , 5um (Optional 0.3um) Flow Rate 28.3LPM (1CFM) Power 12－36V (wide voltage supply) Dimension 120x67x41（mm) Material Stainless steel material ;IP54(customized IP65) Weight 0.5KG Indicator Light Four lights indicator. When the transmitter is abnormal, the indicator lights go off. When the communication normal, the indicator lights flicker. Red(P)：Power indicator Green(O)：Signal indicator Blue(F)：flow rate indicator Yellow(C)：Countering indicator Data Cache 1600(or customized 3200 or more) Communicati on RS485 , Modbus(RTU) Optional Built in buzzer(realized by setting up the beep function on software) External air pump for one pump with one particle sensor(It is suitable for single point monitoring with fewer points) The external touch screen monitors the value, flow and alarm status in real time. Others Others requirements
