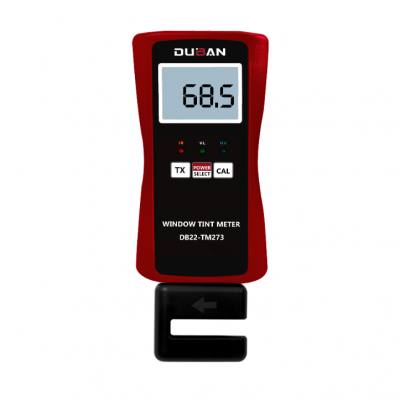

Window Tint Meter DB22-TM273/OEM/ODM

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Guangzhou
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DUBAN		Place of Origin	China
Model Number	DB22-TM273

Product Description

【Product Descriptions】
The Window Tint Meter is applicable to measure the transmittance of all kinds of transparent, translucent samples with parallel plane
(such as automobile manufacturing, aerospace, glass products, plastic sheet,

【Product Features】

* This Window Tint Meter is a hand held device that mea- sures the amount of light that passes through a window.

* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.

* Digital display, wide measurement range, high resolution.

* Can measure the transmittance of ultraviolet light, visible light, and infrared light.
* It has a rotatable sensor, which can meet the needs of more different measurement angles.

* One key calibration, easy to use.

* Solid structure, exquisite, easy to carry, small volume, light weight.

* Use USB data output to connect with PC.
* Provide Bluetooth ? data output choice

【Product Specifications】

Measuring range	0 to 100% Light Transmission
Resolution	0.1
Accuracy	±2%
Light Source	LED
Sample Thickness	Less than 10 mm/0.4inch
Ultraviolet Light Wavelength	380nm
Visible Light Wavelength	380-760nm
Infrared Light Wavelength	central wavelength 950nm
Measurement mode	Visible light transmittance measurement, Ultraviolet light transmittance measurement, Infrared light transmittance measurement, Light transmittance measurement cycle.
Sensor rotation angle	0-340°(do not rotate the sensor more than 340°, otherwise it will damage the sensor)
Lamp Life	10 Years
Operating Conditions	Temperature : 0~50°C
Operating Conditions	Humidity: below 90% RH
Power Supply	4x1.5vAA Um-4 Battery
Size	184x76x32mm
Weight	160 g (Not Including batteries)

Standard Accessories	Main Unit
	Carrying Case
	Operation Manual
Optional Accessories	USB Data Output
Optional Accessories	Bluetooth? Data Output
