Home > Products > Image Measuring Instrument > Fully Auto 2D Image Measurement Machine 2d 3d Optical Measuring Equipment

Fully Auto 2D Image Measurement Machine 2d 3d Optical Measuring Equipment

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

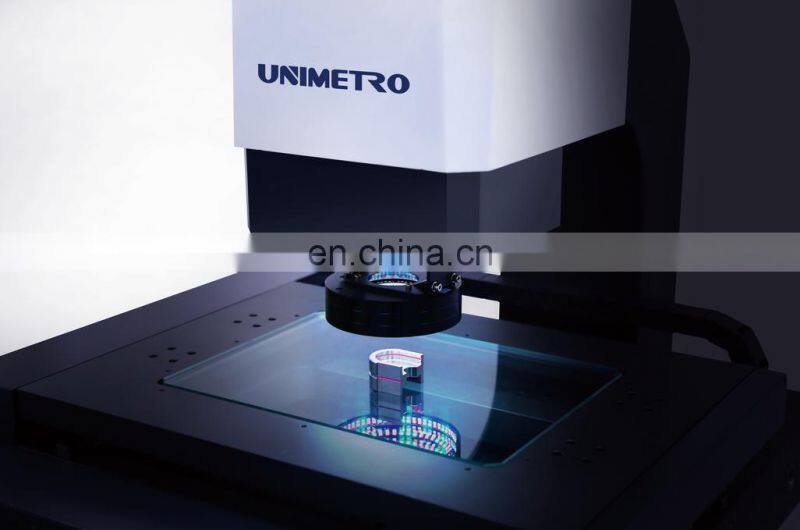

Fully Auto 2D image measurement machine --- ULTRA Series

ULTRA series CNC automatic VMM is the new launched latest upgraded products from UNIMETRO, which offer outstanding measuring performance. The full ULTRA series is standard with high accuracy linear slide way, which ensures much more stable transmitting performance and high measuring accuracy.

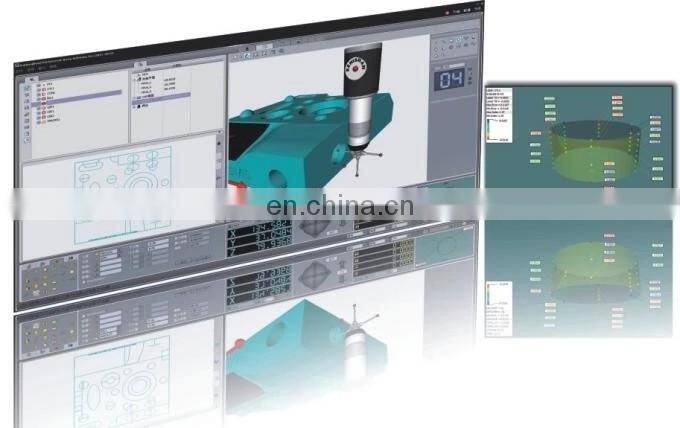

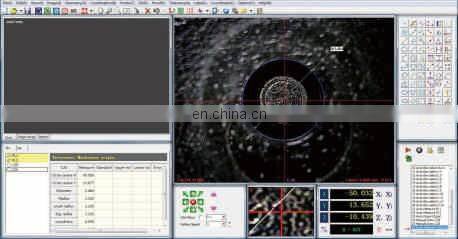

With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3D composite measuring function.

Main Features

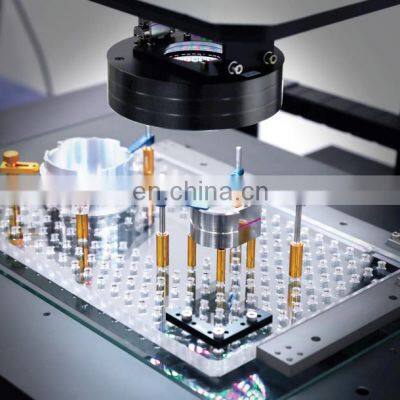

Multi types of non-contact sensors and fast fixturing system are for option, which can satisfy different measuring requirement from different customers.

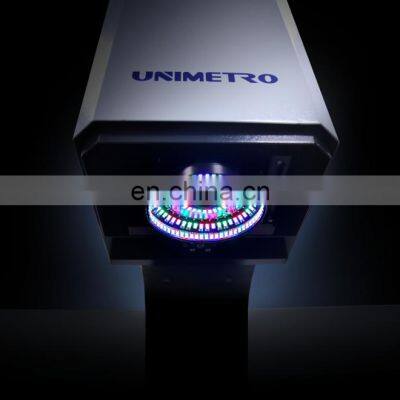

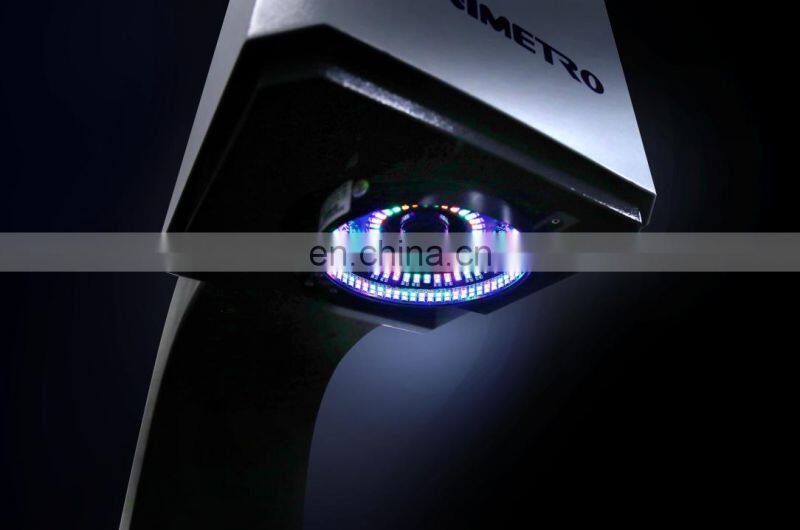

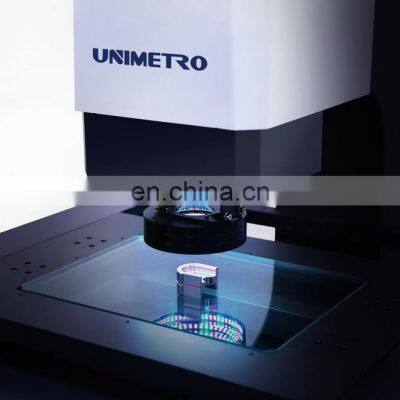

Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.

High quality with great originality and fine-tuning

Aluminum work stage, makes the motion control fast reacting and flexible. Standard with precise linear slide way, offers smarter mechanical structure and higher accuracy. Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable. With powerful automation accessories, the ULTRA series is able to work with touch probes, non-contact measuring sensors or robots, which gives more possibilities and efficiency to the series.

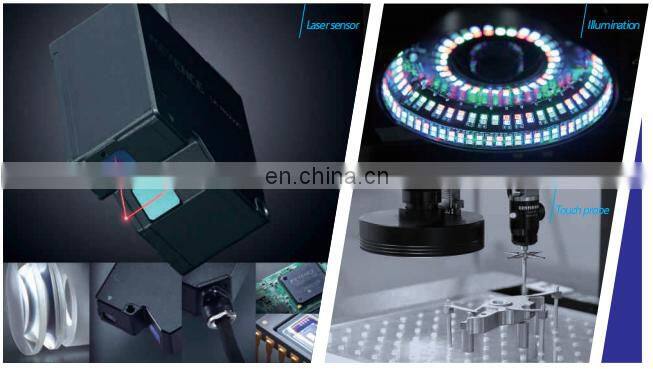

Optional scheme

Illumination

★4 sections surface ring LED light
★8 sections surface ring LED light
★40 sections surface ring LED light
★40 sections color surface ring LED light.

Lens

★Manual dented zoom lens
★Co-axial optical manual zoom lens
★Auto zoom lens
★Co-axial optical auto zoom lens

Probes

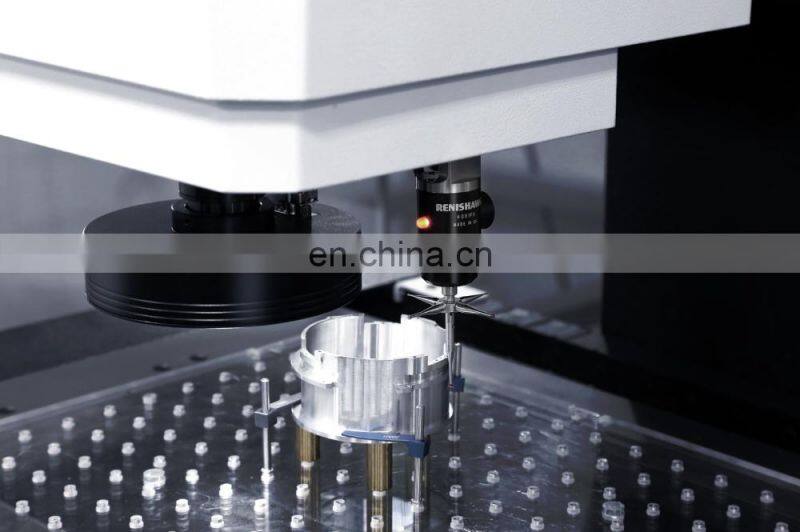

★Renishaw MCP touch probe kits, probe measuring error <=0.75
★Renishaw PH6+TP20 touch probe kits, probe measuring error <=0.35

Laser sensor

★KEYENCE non-contact laser sensors series

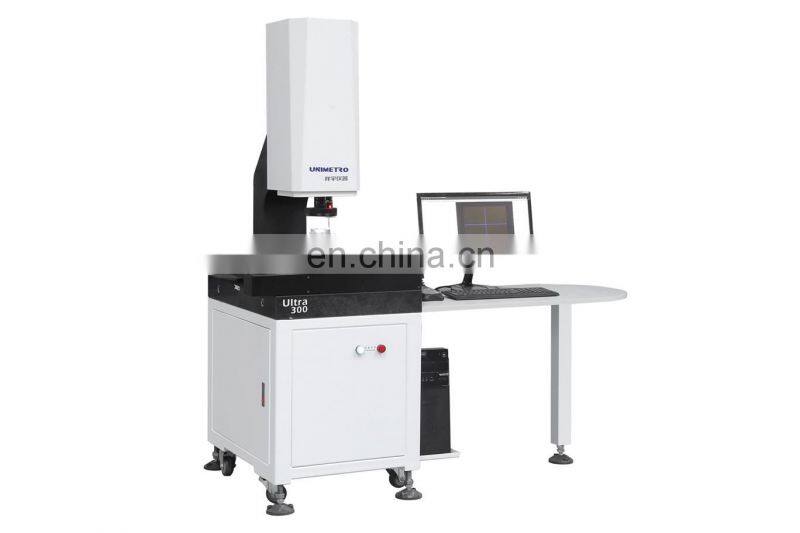

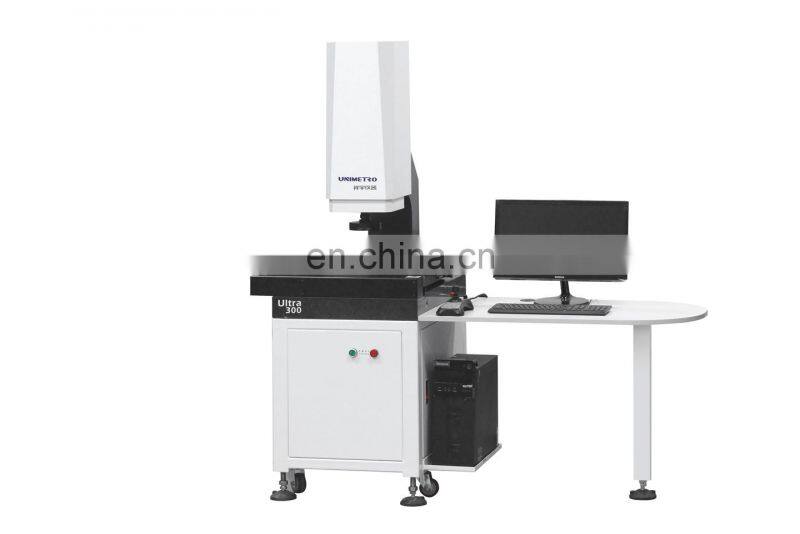

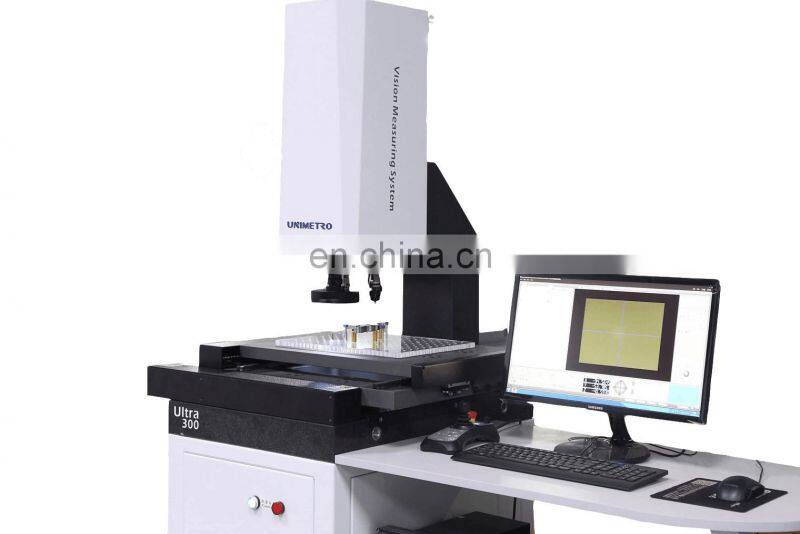

Items			ULTRA300	ULTRA400	ULTRA500
Dimension(mm)(L×W×H)			1600×780×1700	1750×920×1700	1900×1080×1700
Measuring range(mm)(X×Y×Z)			300×200×200	400×300×200	500×400×200
Measuring Accuracy(μm			2.5+ L/200	2.5 +L/200	2.5+ L/200
Repeatability (μm)			2.5	2.5	2.5
Weight(kg)			320kg	390kg	460kg
Image and Measuring	CCD	Industrial grade color CCD camera
		Lens	Manual dented zoom lens 0.7 - 4.5X / Auto zoom lens 1 - 10X
		Magnification	18 - 195X ( For reference only. With different camera and lens the magnification will be different. )
		Field of View	8.1~1.3mm
		Working distance	108mm
Linear scale resolution			0.5μm (0.1μm for option)

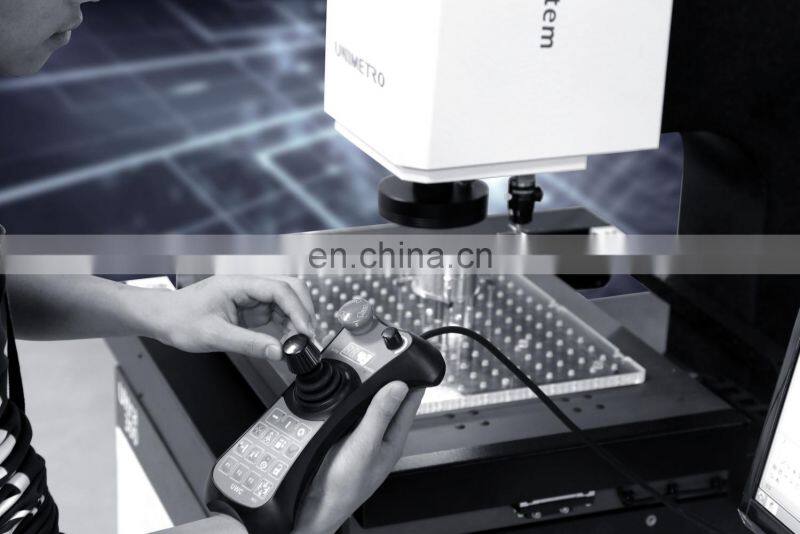

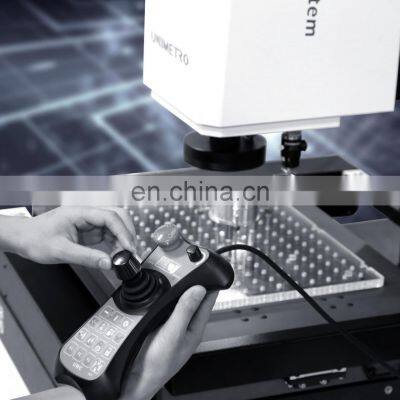

Driving system			CNC control, close-loop AC Servo driving system, joystick, mouse or keyboard control
Illumination			Programmable 8 sections LED ring surface light, parallel LED contour light, 40 section LED ring light, co-axial light, movable multi color ring light for option

About Us

UNIMETRO helps you to build your own business! UNIMETRO is the professional manufacturer of metrology with over 10 years

experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.

10 Years Experience

UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology

products, offers complete high accuracy measuring solutions for customers.

Our Production Line

Except the instruments for accurate measuring as vision measurement machine, coordinates measurement machine and profile

projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...

Customer Service

We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and

dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, which
minimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.

Engineering Design

1.Latest Systems : Solidwords with FE analysis.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
