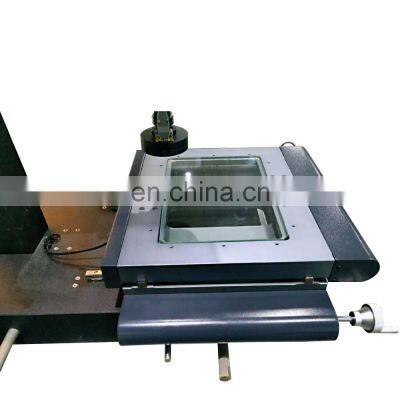

Manual Optical Vision Measuring Machine VMM
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Manual optics instruments optical inspection machine optical vision measuring machine
-
High accuracy machine optic 2d vision measuring machine for measuring 2D elements
-
OEM Image Measuring Instrument VMM
-
Automatic Compact Type CNC VMM
-
Granite structure/Manual Video Measuring Machine VMM Series
-
Automatic Optical Measuring Vcm Vmm Measuring Instruments
Product Description
Items | EXTRA200 | EXTRA300 | EXTRA400 | EXTRA500 | |||||
Dimension(mm)( L * W * H ) | 500*540*930 | 600*740*980 | 700*840*980 | 800*940*980 | |||||
Measuring range (mm)( X * Y * Z ) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 | |||||
Measuring Accuracy ( µ m ) | 2.5+L/100 | 2.5+L/100 | 2.5+L/100 | 3+L/100 | |||||
Repeatability ( µ m ) | 2.5 | 2.5 | 2.5 | 3 | |||||
Weight ( kg ) | 140kg | 190kg | 240kg | 290kg | |||||
Image and Measuring | CCD | Industrial grade color CCD camera | |||||||
Lens | Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X | ||||||||
Magnification | 18-195X ( For reference only. With different camera and lens the magnification will be different. ) | ||||||||
Field of View | 8.1~1.3mm | ||||||||
Working distance | 108mm | ||||||||
Linear scale resolution | 0.5 µ m ( 0.1µ m for option ) | ||||||||
Driving system | X , Y axis manual conrol , Z axis close-loop CNC control and AUTU FOCUS funtion available | ||||||||
Illumination | Programmable 4 sections LED ring surface light , parallel LED contour light , 8 sections LED ring light , co-axial , for optio | ||||||||
High Precision Manual 2d Measurement 2.5d Image Measuring Instrument For Dimension
The EXTRA series manual vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. We use light weight design on the machine frame, makes the structure more slim, but keep the high rigidity and stability, allows the users to get the max measuring range in smallest space.
The EXTRA series is using high accuracy linear slide way, which is totally different from the cross slide way used for other
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range which cost by the cross slide way. Working with the UNIMETRO professional 3D measuring software, the EXTRA series VMM will provide strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with extremely reasonable price.
Industrial production Detection of industry Test process industry Electronics industry
Connector industry Robot industry Shipping industry Health care industry
UNIMETRO helps you to build your own business! UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology
products, offers complete high accuracy measuring solutions for customers.Our Production Line
Except the instruments for accurate measuring as vision measurement machine, coordinates measurement machine and profile
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...
We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and
dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, which
minimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.
dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, which
minimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.
1.Latest Systems : Solidwords with FE analysis.
2.Auto CAD/CAM; Pore3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
