Customized CNC Optical Image Measurement Machine VMM with Optional configuration

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

OVERVIEW

CNC vision measurement machine is a powerful dimension measuring device designed for mass production quality control process. It is configured with powerful software which makes the measuring process programmable, users can achieve big quantity products measuring by full automatic process. PEAK series is an economical model of full automatic CNC vision developped by UNIMETRO. The simple and integrated design allow us to build the machine with lower cost, in the mean time keep the high measuring accuracy and best performance. Users are able to enjoy the advantage of high efficiency and labor cost saving from a full CNC vision measurement machine with very low price.

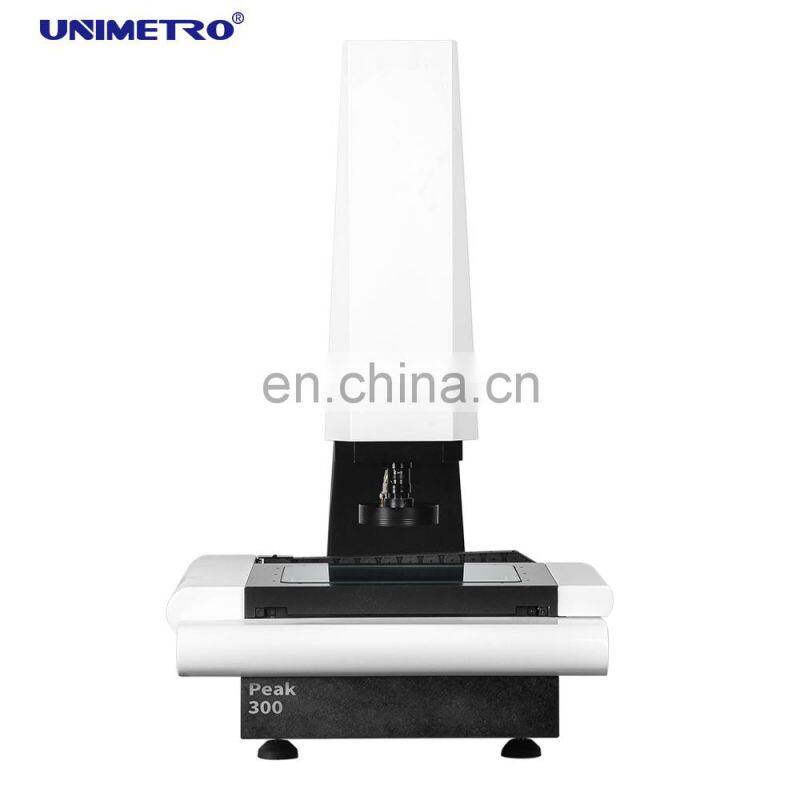

Front view

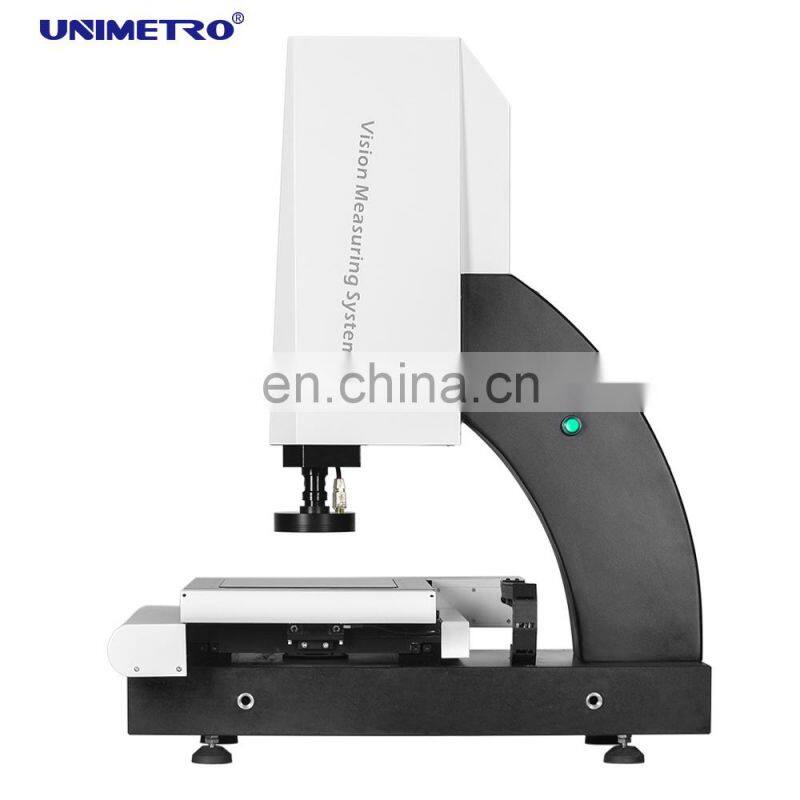

Right view

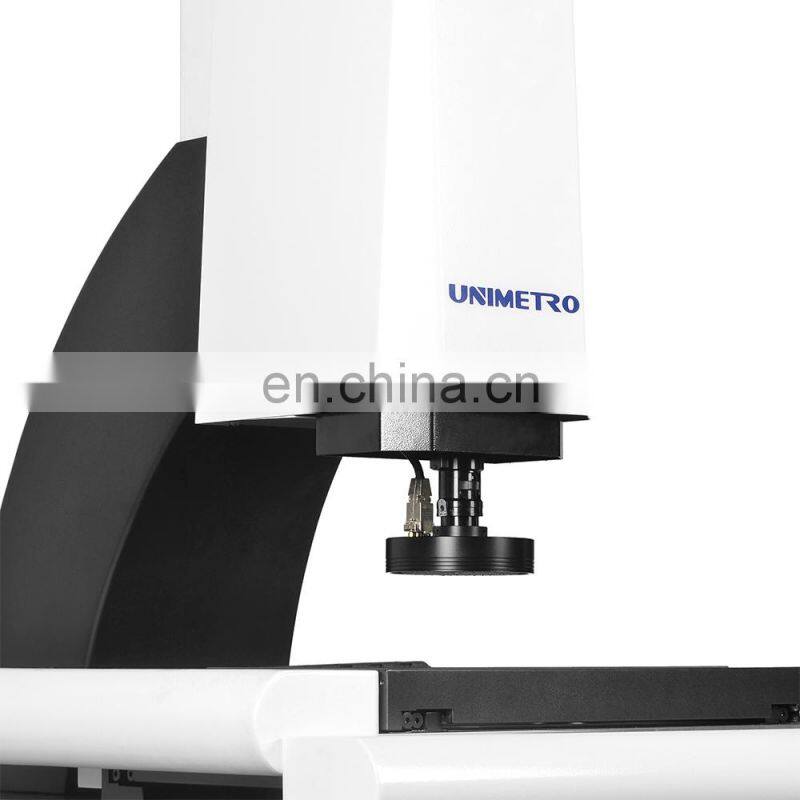

Left view

FEATURES

1.	The PEAK series with multiple automatic measuring function, and take the economy into account.
2.	With reasonable & advanced design concept, the fuselage is more compact and fashionable.
3.	Customized to meet the needs of different markets: compared with the standard configuration production of other brands, UNIMETRO machine configuration is more flexible and changeable.
4.	PEAK series with higher accuracy and more stable repeatability.
5.	Hardware: Powerful optical and imaging system support
6.	Software: Powerful software function support behind.(UNIMETRO/INSPECT/RationalVue etc. mature software to option )

MULTIPLE APPLICATIONS

HARDEARE CONFIGURATION

? 3 axis 0.5um resolution linear scales ? High performance Auto focus function ? Aluminum work stage and hard anodizing

? Compatible with Renishaw touch probe(optional) ? 3 rings 8 section LED ring light software control and programmable ? Parallel light path LED contour light software control and programmable ? Confocal Fiber Displacement Sensor(optional)

? HIWIN linear guide way

? Z axis motorized control

? Integrated core control box

? Industrial grade CCD camera

? Manual pulsegenerator for Z axis movement control

? With Laser indicators for auxiliary positioning and focusing (optional)

? 0.7-4.5X manual dented zoom lens with magnification signal feedback sensor

Confocal Fiber Displacement Sensor Application; The PEAK series VMM is compatible with full line of Omron fiber measuring sensors, which offers; More possibility of precise measurement requirement.

Stable measurements of inclined or curved surfaces
Stable measurements of different materials types
Stable measurements of smooth or coarse surfaces

PEAK series VMM is compatible with Renishaw touch probe as optional configuration. Users can easily achieve 2D and 3D measuring function in one machine. The software can calculate the offset between the optical lens and touch probe, makes sure that all measuring results are within one coordinates system. The measuring results can be out put as 3D drawing for reverse engineering.

SOFTWARE FUNCTION

The UNIMETRO INSPECT3D software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and precise measuring. The software is offering full English language UI, also allows new language development.

? Input CAD file and measure ? Parts array and macro measuring ? Auto focus and height measuring ? Navigating function helps fast locating ? Powerful geometric measuring function ? Multiple data reports and graphical data output function

? Flexible user program ? Creating reference elements ? Powerful edge detecting function ? Supporting multiple external accessories ? Auto calculation of the elements geometrical tolerance ? Measuring complicated production fast and conveniently

PARAMETER

Model	PEAK300	PEAK400
*^{Dimension(mm)(LWH)}*	8106101055	9607101080
*^{Measuring Range(mm)(XYZ)}*	300200200	400300200
^Accuracy(um)	3+L/200	3+L/200
^{Repeatability(um)}	3	3
^Camera	Industrial grade analog CCD camera and SV2000E video card
_Lens	Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional)
_{Magnification}	18-195X (Different combination of camera and lens leads to different magnification range
_FOV	8.1-1.3mm (Different combination of camera and lens leads to different FOV range)
^{Working Distance}	90mm
^{Linear scales resolution}	0.0005mm
^Illumination	Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light
