Product Description

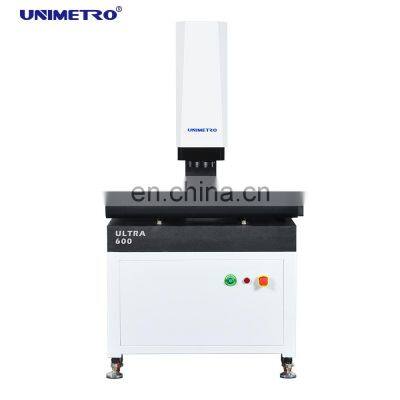

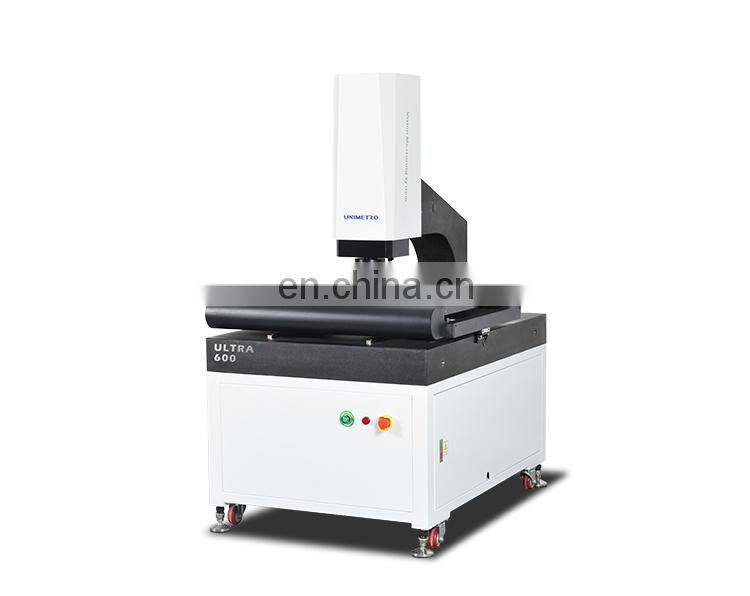

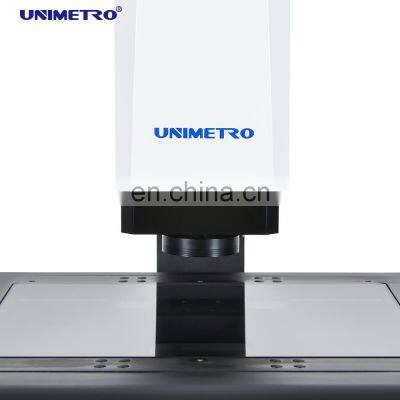

ULTRA SERIES CNC MEASURING MACHINE
ULTRA series is a cantilever high accuracy fully automatic vision measuring machine developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.
PRODUCT CHARACTERISTCS
▶Granite base and column, excellent stability;
▶Aluminum work stage,make the motion control fast reacting and flexible;
▶Work stage with hard oxidation surface processing anti-scratch;
▶Standard with precision linear guide, grinding ball screw and AC servo motor etc., to ensure the precision and stability of the motion system;
▶Integrated control system,embedded with motion control,and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
▶XYZ three axis CNC automatic control and accurate positioning;
▶0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;
▶GIGA high resolution color camera to meet the needs of clear observation and accurate measurement;
▶6.5x high-resolution click zoom lens, accurate doubling and one times pixel correction only needed;
▶With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.
SOFTWARE FUNCTION
Efficient measurement software
▶With the External-Array RationalVue composite measuring software,the ULTRA series is capable to offer powerful 2D/3d composite measuring function;
▶Simple and easy to understand operation interface makes measurement more simple and efficient;
▶Automatic measurement program can be set to complete batch measurement efficiently and quickly.
OPTIONAL ACCESSORIES
Flexible expansibility
▶Multi types of non-contact sensors and fast fixturing system are for option,which can satisfy different measuring requirement from different customers
▶Mavable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
▶Thanks to the flexible expansibility of ULTRA series, it is compatible with touch probe,non-contact measuring sensors and robot arm,highly increase the measuring efficiency,
PARAMETER
Product Name | ULTRA Series Automatic Vision Measuring Machine | ||||||||
Model | ULTRA 300 | ULTRA 400 | ULTRA 500 | ULTRA 600 | |||||
X/Y-axis Travel(mm) | 300x200 | 400x300 | 500x400 | 600*500 | |||||
Z-axis Travel | 200mm (can be raised according to the requirements of customers) | ||||||||
X/Y/Z-3 axis Linear Scale | Glass Linear Scale Resolution: 0.1um | ||||||||
Guidance Mode | Precision linear guide，double-track double slider guide. | ||||||||
Operation Mode | Joystick controller, Mouse operation, automatic detection program. | ||||||||
Accuracy | XYZ-axis：≤2.5+L/200um | ||||||||
Repeatability | ±2.5um | ||||||||
Video System | CCD | High definition 1/3" Color CCD Camera | |||||||
Lens | 6.5X continue click zoom lens; Optical Magnification: 0.7X-4.5X; Video Magnification: 26X~172X(21.5”monitor) | ||||||||
Illumination System | Contour | LED parallel contour illumination | |||||||
Surface | 0~255 Stepless adjustable 5-ring 8-division LED surface illumination | ||||||||
Magnification | 0.7X~4.5X | ||||||||
Measuring Software | UNIMETRO 2D Fully Auto Measuring Software | ||||||||
Load Capacity | 25Kg | ||||||||
Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr, Humidity 30~80%, Vibration<0.002g, <15Hz | ||||||||
Power Supply | 220V/50Hz/10A | ||||||||
Ddimension(W*D*H)(mm) | 1600*780*1700 | 1750*920*1700 | 1900x1080x1700 | 1050*1280*1700 | |||||
Net Weight(kg) | 380 | 450 | 600 | 800 | |||||
L is measuring length(mm), the mechanical accuracy of Z-axis and focus accuracy is related to the surface of the workpiece.
**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image magnification: 13X~86X or 52X~344X.
