OEM 2.5d Image Measuring Instrument 3d VMM
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
High Precision Manual 2d Measurement 2.5d Image Measuring Instrument
-
Manual 2d/2.5d Measurement Image Measuring Instrument
-
High Precision Manual 2d Measurement 2.5d VMM
-
High Precision Manual 2d Measurement 2.5d Image Measuring Instrument For Dimension
-
Optical Measuring Vcm Vmm Measuring Instruments
-
Optical Measuring Vcm Vmm Inspection Instrument For Metals PCB 3Cproduct
Product Description
OEM 2.5d Image Measuring Instrument 3d Vision Measuring Machine Auto Focus Vmm Vision Measuring Instrument

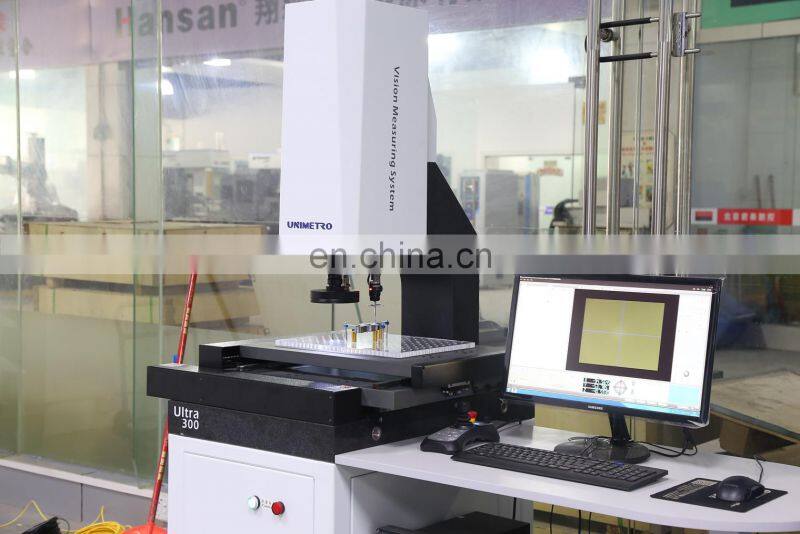

ULTRA series CNC automatic VMM is the new launched latest upgraded products from UNIMETRO, which offer outstanding measuring performance. The full ULTRA series is standard with high accuracy linear slide way, which ensures much more stable transmitting performance and high measuring accuracy.
With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3D composite measuring function.
With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3D composite measuring function.
Multi types of non-contact sensors and fast fixturing system are for option, which can satisfy different measuring requirement from different customers.

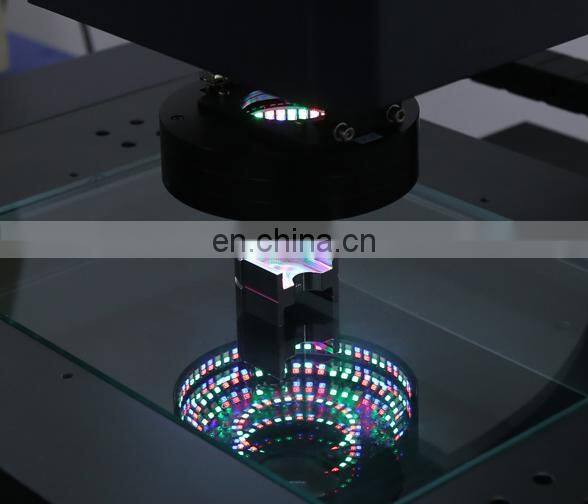

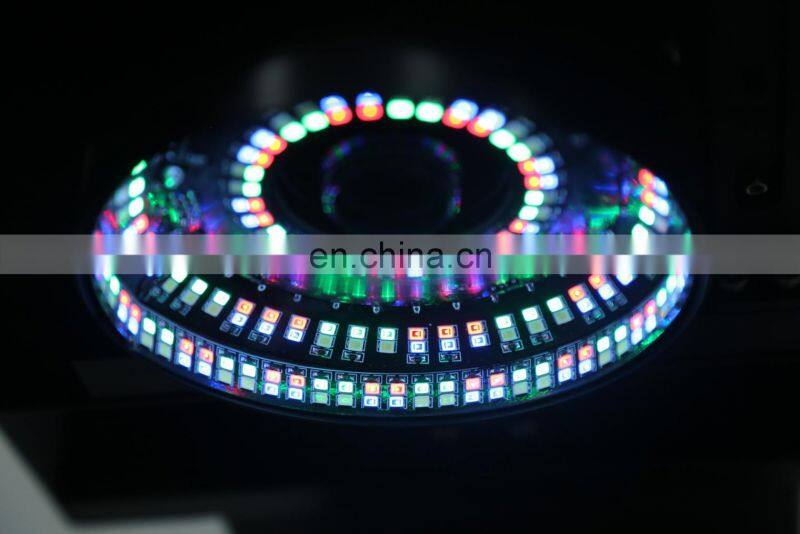

Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.
High quality with great originality and fine-tuning

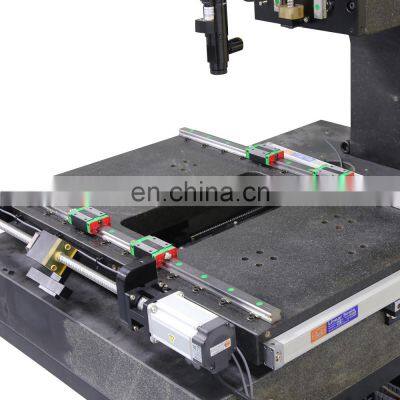

Aluminum work stage, makes the motion control fast reacting and flexible. Standard with precise linear slide way, offers smarter mechanical structure and higher accuracy.
Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensur the performance of the machine is extremely stable.

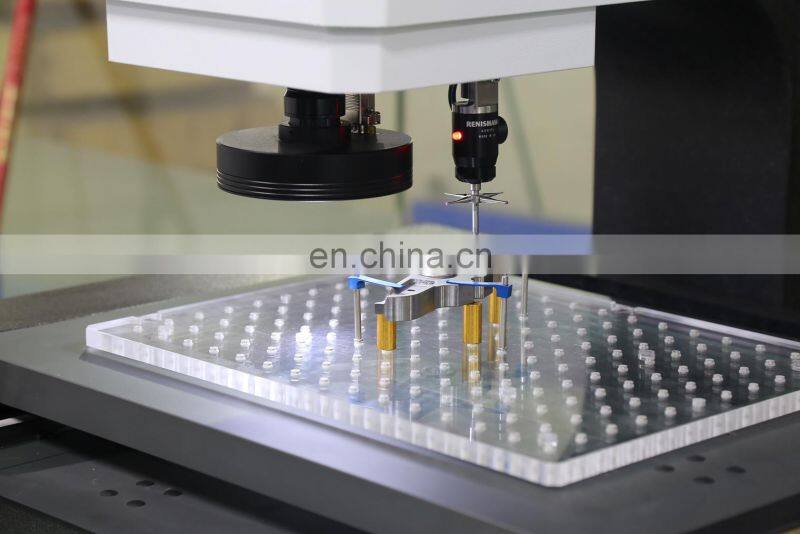

With powerful automation accessories, the ULTRA series is able to work with touch probes, non-contact measuring sensors or robots,
which gives more possibilities and efficiency to the series.
Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensur the performance of the machine is extremely stable.
With powerful automation accessories, the ULTRA series is able to work with touch probes, non-contact measuring sensors or robots,
which gives more possibilities and efficiency to the series.
Item | ULTRA300 | ULTRA400 | ULTRA500 | |||||
Dimension(mm)( L * W * H ) | 1600*780*1700 | 1750*920*1700 | 1900*1080*1700 | |||||
Measuring range (mm)( X * Y * Z ) | 300*200*200 | 400*300*200 | 500*400*200 | |||||
Measuring Accuracy ( µ m ) | 2.5+L/200 | 2.5+L/200 | 2.5+L/200 | |||||
Repeatability ( µ m ) | 2.5 | 2.5 | 2.5 | |||||
Weight ( kg ) | 320kg | 390kg | 460kg | |||||
Image and Measuring | CCD | Industrail grade color CCD camera | ||||||
Lens | Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X | |||||||
Magnification | 18-195X ( For reference only. With different camera and lens the magnification | |||||||
Field of View | 8.1~1.3mm | |||||||
Working distance | 108mm | |||||||
Linear scale resolution | 0.5 µ m ( 0.1µ m for option ) | |||||||

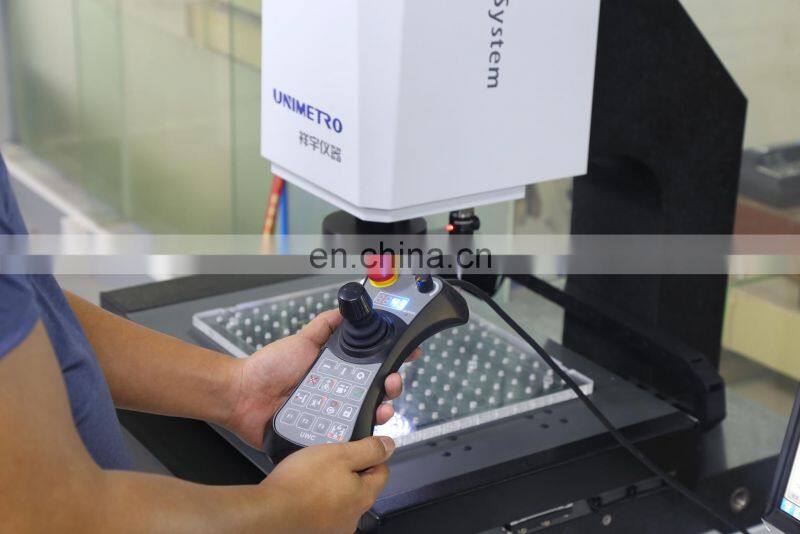

Driving system | CNC control, close-loop AC Servo driving system, joystick, mouse or keyboard control. | |||||||
Illumination | Programmable 8 sections LED surface light 40 section LED ring light, co-axaillight,movable mult color ring light for option. | |||||||
About Us
UNIMETRO helps you to build your own business! UNIMETRO is the professional manufacturer of metrology with over 10 years
experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.10 Years Experience
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology
products, offers complete high accuracy measuring solutions for customers.
Our Production Line
Except the instruments for accurate measuring as vision measurement machine, coordinates measurement machine and profile
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...Customer Service
We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and
dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, whichminimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.
Engineering Design
1.Latest Systems : Solidwords with FE analysis.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
