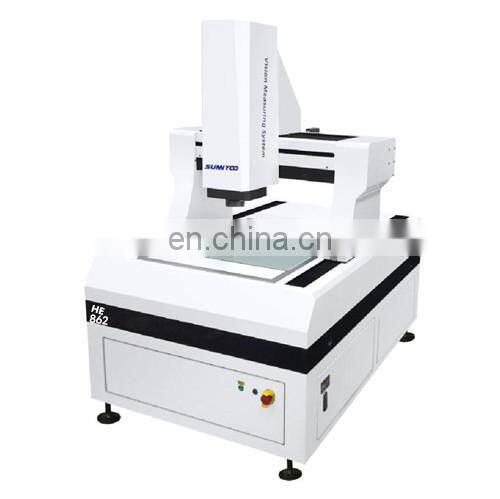

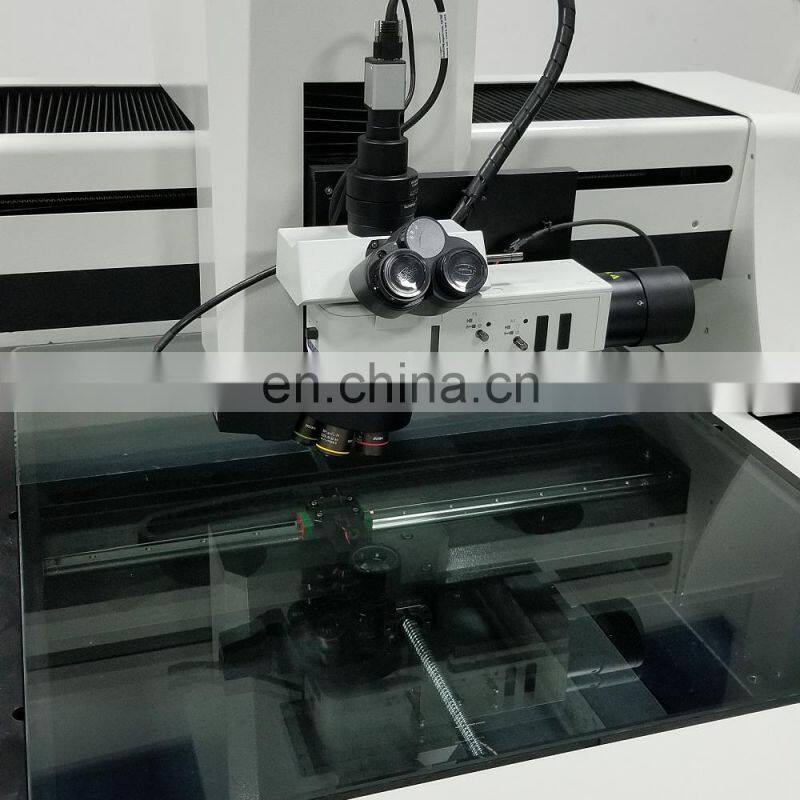

Gantry Type CNC Automatic Vision Measurement Machine
The HE series high accuracy gantry type vision measurement machine combines high accuracy and high efficiency, offers high speed measuring for the geometric elements of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate, pad glass, LCD modules, and insulation materials etc.
◆ Finite elements analysis is introduced in the designing process of the HE series, ensures high rigidity and accurate mechanical structure.
◆ The machine base is using closed frame movable bridge type structure, which is simple and offers high loading capability and the best motion performance.
◆ The machine base is using closed frame movable bridge type structure, which is simple and offers high loading capability and the best motion performance.
◆ 000 grade granite machine base, offers high rigidity, corrosion resistance and high stability.
◆ The work stage is able to preset multiple products fixturing solution, also multiple lens combination is for option, satisfy
different measuring requirement from different customers.
◆ Full close loop motion control system, ensures the best movement and positioning performance.
◆ The work stage is able to preset multiple products fixturing solution, also multiple lens combination is for option, satisfy
different measuring requirement from different customers.
◆ Full close loop motion control system, ensures the best movement and positioning performance.
★ X/Y axis use accurate liner guide way, Z axis uses high performance cross rail with the original German friction driven group.
★ Renishaw linear scales included, with high accuracy, stability and long life cycle.
★ According to users' requirements the working stage is able to preset with multiple type of products fixtures, also multiple lens
and cameras combination option are available, gives more flexibility to users.
★ With the powerful Rational-Vue software users can achieve complicated measuring programs easily. In the mass production the HE
series vision measurement machine can be a powerful measuring instrument.
★ Renishaw linear scales included, with high accuracy, stability and long life cycle.
★ According to users' requirements the working stage is able to preset with multiple type of products fixtures, also multiple lens
and cameras combination option are available, gives more flexibility to users.
★ With the powerful Rational-Vue software users can achieve complicated measuring programs easily. In the mass production the HE
series vision measurement machine can be a powerful measuring instrument.
Items | Items | HE862 | HE1080 | HE1210 | HE1512 | HE1812 | |||||
Dimension(mm)( L * W * H ) | 1700*1280*1750 | 1900*1480*1750 | 2100*1680*1750 | 2500*1880*1750 | 2700*1880*1750 | ||||||
Dimension(mm)( L * W * H ) | 600*800*200 | 800*1000*200 | 1000*1200*200 | 1200*1500*200 | 1200*1800*200 | ||||||
Measuring Accuracy ( µ m ) | 3+L/200 | 3+L/200 | 3+L/200 | 3+L/200 | 3+L/200 | ||||||
Repeatability ( µ m ) | 3 | 3 | 4 | 4 | 4 | ||||||
Weight ( kg ) | 1800kg | 2900kg | 3200kg | 4400kg | 4800kg | ||||||
Image and Measuring | CCD | Industrial grade color CCD camera | |||||||||
Lens | Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X | ||||||||||
Magnification | 18-195X ( For reference only. With different camera and lens the magnification will be different. ) | ||||||||||
Field of View | 8.1~1.3mm | ||||||||||
Working distance | 108mm | ||||||||||
Linear scale resolution | 1µ m ( 0.5µ m for option ) | ||||||||||
Driving system | CNC control, close-loop AC Servo driving system, joystick, mouse or key board control | ||||||||||

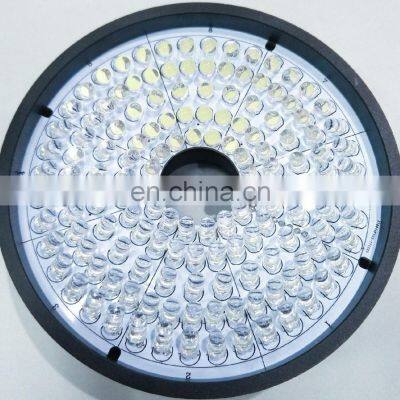

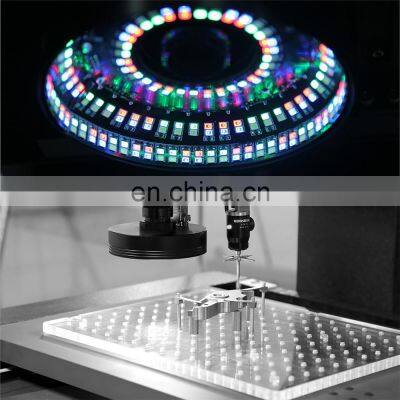

Illumination | Programmable 8 sections LED ring surface light, parallel LED contour light, 40 section LED ring light, co-axial light, movable multi color ring light for option | ||||||||||
Illumination: | Lens: | Touch probe: | Laser sensor |
4/8/40 sections LEDsurface ring light 48 sections 4 colors LED ring light Movable 4 colors LED ring light | Manual dented zoom lens Auto zoom lens Manual dented zoom lens with co-axial light Auto zoom lens with co-axial light | Renishaw MCP kits Measuring error<=0.75µm Renishaw PH6+TP20 Measuring error<=0.35µm | Manual dented zoom lens Auto zoom lens Manual dented zoom lens with co-axial light Auto zoom lens with co-axial light |
