ESB250 Manual Brake Match With Safety Chuck

ESB250 manual brake match with safety chuck

ESB250 manual brake is a easy structure, it is usually matched with safety chuck. There is a connecting plate between manual brake and safety chuck for fixing.

For the brake, as to its operation mode difference, it can be divided into two types: pneumatic caliper disc or air shaft brake and manual brake. Because pneumatic disc brake is driven by air pressure, so it braking torque can be adjusted via adjust air pressure, while manual brake's braking force is adjusted via rotating handwheel angle. So air brake is wider than manual brake in usage.

For the manual brake, it is controlled by spiral springs. After rotating its handwheel in clockwise in a certain degree, springs compressed and produce braking force in relevantly. When rotating its handwheel in anti-clockwise, springs come back and brake released. This structure is easy and save energy, braking power adjusted flexibly.

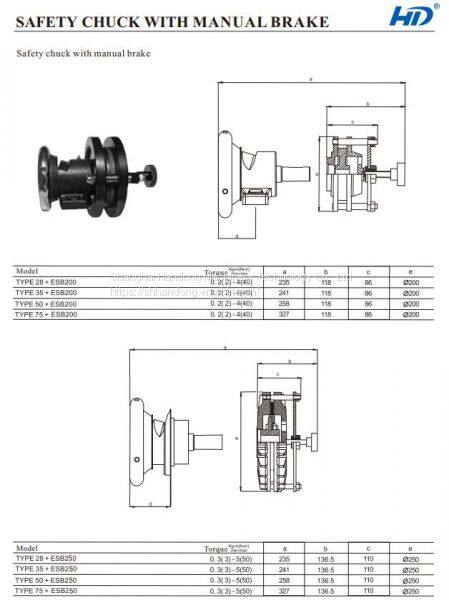

This manual brake can be used independently and also can be matched with safety chuck for usage. There are two models if it, ESB200 and ESB250. Following is the technical data of this hand adjust brake:

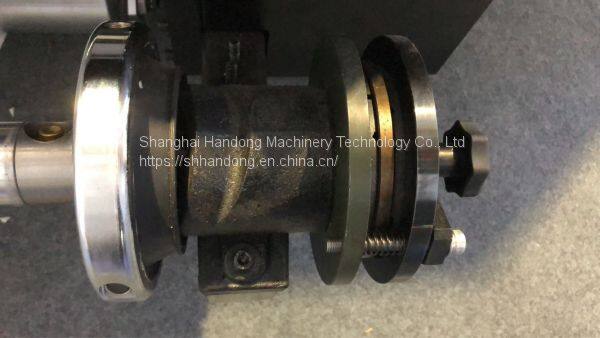

ESB manual brake can be equiped with flange or pillow type safety chuck, if you need, we can matched them together and then dispatched to you. Brake can be used for reduce speed or tension control, this is one customer usage case for textile machine for your reference.

Handong company is a professional manufacturer of pneumatic clutch, brake and safety chuck, we are not the sales trading company, so we have the ability to control products' quality, produce schedule, after-sales service and offer you the professional suggestion for you.
