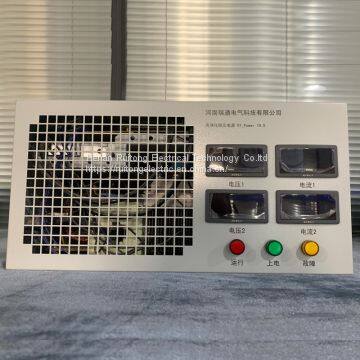

Ruitong Low-voltage Static Reactive Power Generator

Product Features:

-- Adopt a three-level topology to effectively reduce ripple current and improve the quality of the output waveform;

-- Adopt the highly-integrated three-level IGBT module from Infineon, Germany, to ensure low voltage stress and high reliability, as well as reduced conduction loss and switching loss;

--  Adopt TI's TMS320F28377D series DSP chip with dual-core 32-bit CPU, to ensure high control precision and fast speed, and with multiple 16-bit ADCs, to ensure high sampling accuracy;

-- Adopt the magnetic ring reactor with small size, light weight, low temperature rise and low noise;

-- Adopt high-performance Hall current sensor and Hall voltage sensor to ensure high sampling accuracy;

-- Adopt modular design for easy installation and capacity expansion;

-- With multiple compensation modes: var compensation priority, harmonic control priority and other adjustment modes;

-- The response time is less than 10ms and the control is fast, to ensure better transient stability;

-- Complete protection functions for external electrical faults such as busbar overvoltage, under voltage and phase loss, and internal faults such as IGBT overheating and over current;

It has two structure modes: rack-mounted and wall-mounted, which are convenient for installation;

-- Complete production and inspection procedures, all products undergo 12-step production process, 4 inspection procedures, and 72-hour aging test.

-- The upper switch part of the cabinet adopts drawer design, which is convenient for maintenance;

-- The shape and dimension of the cabinet can be designed according to user requirements.(Such as GCS,GGD ,etc.)

Main Technical Parameters:

--  SVG module rated capacity:  35 kvar /50 kvar / 75kvar / 100 kvar

-- Rated voltage:  AC380V±15%/660V+15%

-- Electrical wiring: Three-phase three-wire, three-phase four-wire

-- Rated operating frequency : 50Hz±5%

-- Compensation target Power factor 0.99

-- Automatic current limit output function:

When the harmonic current on the load side is greater than the device current, the device limits the output current to the rated value.

Over heating protection The fan is automatically started when the radiator exceeds 65 °C

-- No-voltage protection When the system voltage is lower than UN85%, the main circuit breaker will lose voltage protection, and the device will stop working.

--  Load over current protection The current flowing through the load exceeds the threshold and the device stops working.

-- System voltage protection

The system side voltage under voltage threshold or over voltage threshold is exceeded , and the device stops working .

--  DC voltage protection

The device has both software and hardware protection. The software protection point can be set to 1.1 times the normal voltage and the hardware protection point is 1.3 times of the normal voltage. When the DC voltage exceeds the protection threshold, the device stops and reports corresponding fault.

-- IGBT protection

The internal temperature of the IGBT exceeds 108°C, the device stops working, and the IGBT fault is reported.

-- Rush current 2 times the IGBT rated current in the power m odule

-- Compensation modes Reactive compensation/ harmonic compensation and reactive

-- Operation mode of multiple devices

-- Parallel operation O n-off frequency 20kHz

-- Response time <5ms

-- Display method Touch screen

-- Communication function Modbus RTU protocol, RS232 (standard)

-- Device power loss At rated full load operation, the loss does not exceed 3% of rated power

-- Protection level IP30

-- Cooling method Forced air cooling

Noise ≤ 65dB (A sound level)

-- Relative humidity

15% to 90% when the room temperature is below +20°C, non -condensing , no more than 50% at +40°C

-- Altitude The installation altitude should be lower than 1000m

-- Cabinet size (mm )

470*200*550 470*250*550  470*250*640  500*250*640

Cabinet weight:  32Kg  40Kg  45Kg  50K
