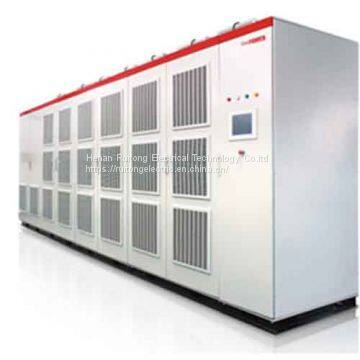

High-voltage Static Var Generator With IGBT System For Reactive Power Compensation
- Qingdao
- T/T L/C Credit Card PayPal
- 7 days
You May Like
-
0.4-0.66Kv Low-voltage passive power filter For harmonics Control
-
High-voltage Passive Power Filter 6-110KV For Harmonic Control
-
DTW Type Voltage Regulating Type Auto Var Compensator DTW
-
TBB (Z) type High-voltage Var Compensator
-
TSF Passive Power Filter Low voltage power filter
-
High-voltage Passive Power Filter
Product Details
| Brand Name | Ruitong | Place of Origin | China | |
| Model Number | RT-HSVG |
Product Description
Product Overview: Ruitong RT-HSVG series high-voltage static var generator is a reactive power compensation system with the core of IGBT. It provides capacitive or inductive reactive power quickly and continuously, and realizes constant reactive power, constant voltage and constant power factor control at the checkpoint, ensuring the stable, efficient and high-quality running of the power system. In the distribution network, small and medium-sized RT-HSVG products are installed near the special loads (such as electric arc furnaces) to significantly improve the quality of power at the connection point between the load and the public grid, such as improving the power factor, overcoming the three-phase imbalance, eliminating voltage flicker and voltage fluctuations, and suppressing harmonic pollution. |
Main Technical Parameters: -- Rated operating voltage: 6kV, 10kV, 27.5kV, 35kV; --- Output reactive range: continuous change from inductive rated reactive power to capacitive rated reactive power; -- Total harmonic distortion rate of output voltage (before grid connection): ≤ 5%; -- Total harmonic distortion rate of output current THD: ≤ 3%; -- Setting range of system voltage imbalance protection: 4% to 10%; -- Man-machine interface: Colored touch screen display in Chinese; relative humidity: monthly average no more than 90% (25℃) without condensation; --- Altitude: <1000m (customized above 1000m) -- Rated capacity: ±1 - ±100Mvar; -- Response time: ≤ 5ms -- Overload capability: 1.2-time overload for 1min; --- Efficiency: rated operating condition ≥ 99.2%; -- Operating temperature: -20℃ - +40℃ -- Seismic intensity: ≤ 8 degrees. |
Main Technical Parameters
u Rated operating voltage: 6kV, 10kV, 27.5kV, 35kV;
Output reactive range: continuous change from inductive rated
reactive power to capacitive rated reactive power;
Total harmonic distortion rate of output voltage (before grid connection): ≤ 5%;
Total harmonic distortion rate of output current THD: ≤ 3%;
Setting range of system voltage imbalance protection: 4% to 10%;
Man-machine interface: Colored touch screen display in Chinese;
relative humidity: monthly average no more than 90% (25℃)
without condensation;
Altitude: <1000m (customized above 1000m)
Rated capacity: ±1 - ±100Mvar;
Response time: ≤ 5ms
Overload capability: 1.2-time overload for 1min;
Efficiency: rated operating condition ≥ 99.2%;
Operating temperature: -20℃ - +40℃;
storage temperature: -40℃ - +65℃;
seismic intensity: ≤ 8 degrees.
