Online Monitoring Device for Switching Electrical Equipment

Online Monitoring Device for Switching Electrical Equipment

Product Overview:

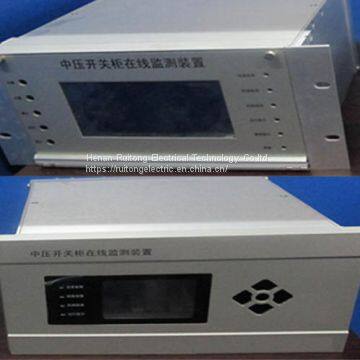

         In order to identify the running defects of the switching devices early and avoid major losses caused by accidents, Ruitong Electrical and Xi'an Jiaotong University jointly developed and designed the Online Monitoring Device for Switching Electrical Equipment (RT-OMD/SD), which is mainly composed of the special sensor , signal transmission and processing unit, communication network and background software.The special sensor monitors the temperature, mechanical characteristics and insulation status, and converts physical signals into electrical signals; the signal transmission and processing unit receives the transmitted electrical signals and transmits them to the background through the communication network; after receiving the signals, the background software conducts fault diagnosis and life prediction to the switching devices with fault diagnosis expert system.

Main Technical Parameters:

Product Models:

The online monitoring device for switching electrical equipment (RT-OMD/SD) adopts the cordwood structure, so that users may select different monitoring objects and monitoring channels as needed.

Remarks: Users may select different monitoring objects and monitoring channels as needed

Monitoring Board Name                  Main Technical Parameters
Monitoring Circuit Board for
Infrared Temperature Rise
Simultaneously monitors the temperature rise of the 6-channel busbar
and the 1-channel ambient temperature and humidity; accuracy: 3K.
Monitoring Circuit Board for
Mechanical Characteristics
Monitors the closing coil current (3 channels), the displacement curve (1 channel), the energy storage motor voltage and current curve (2 channels), and the status information of switching on, switching off and energy storage.
Monitoring Circuit Board for
Insulated Status (Leakage Current)
It can monitor 6 leakage currents at the same time;
Accuracy: 5uA
