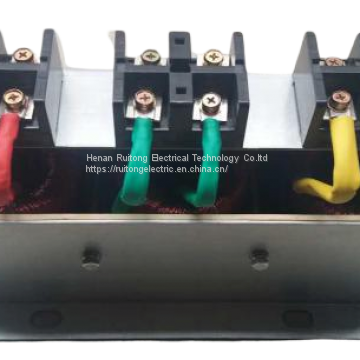

Ruitong Var Compensation Module For Reactive Power Compensation 40kvar

Product Overview:

RT-MTSC series low-voltage var compensation module is composed of a molded case circuit breaker, a contactless switching switch, a parallel capacitor, a series reactor and so on, being designed in modular structure. The module can coordinate with low-voltage var compensation controllers and

cabinets to form a low-voltage var compensation cabinet.

Product Features:

- Modular design: compact structure, convenient to expand, easy to install

and maintain;

- Block-type assembly structure, which can be combined with various capacities and levels as needed, and can be easily matched with different cabinet types.

- Stable and reliable trigger circuit: the pulse transformer trigger circuit adopted has stable and reliable performance;

- Little impact on the power grid and equipment: with the zero-crossing switching technology, there will be no inrush flow or restriking at turn-off.

- Fast response: response time: ≤ 20ms

- Comprehensive protection functions: open-phase protection, overheating protection, and overheating lockout functions;

-  Long service life: frequent switching acceptable, long service life and easy and convenient.

Maintenance:

Main Technical Parameters

- Rated voltage: 400, 250VAC;

- Rated frequency: 50HZ;

- Compensation method: three-phase compensation, phase-splitting compensation;

- Supporting cabinet type: 800*800*2200mm,800*1000*2200mm, 1000*1000*2200;

- Reactance rate: 6% or 12% standard, other reactance rates can be configured as needed.
