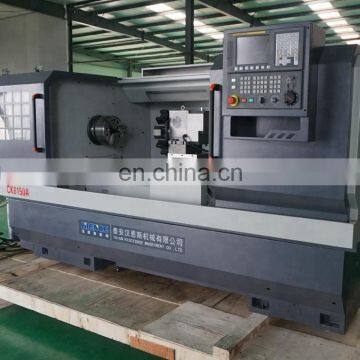

CK6150A Horizontal CNC Lathe Machine Tool Turning Center

FOB Price

USD $10,000 - $13,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HICNCE	Place of Origin	Shandong, China
Model Number	CK6150A	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

1.System:GSK,servo motor and drive
2. Manual 3-jaw chuck, 4-station electric tool post.

3.Manual tailstock, Semi-Rugged
4.Cooling system；Lighten system； Automatic lubrication system；

Item	CK6150A
Max. swing dia. over bed	Φ500mm
Max. swing dia. over cross slide	Φ390mm
Processing length	750mm/1000mm/1500mm/2000mm
Width of the bed	400mm
Dia. of spindle	Φ82mm
Spindle taper	1:20/Φ90
spindle nose	Type of spindle head D-8
Spindle speed	150-2500rpm
Spindle speed step	step-less
chuck size	250mm
Tool holder	4 station
Tool bar section	25X25mm
Main motor power	7.5KW
X/Z axis position accuracy	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm
X/Z axis torque	6/10N.M
X/Z axis travel	360/750mm/1000mm/1500mm/2000mm
X/Z axis fast feeding speed	8/10 M/MIN
Tailstock sleeve travel	150mm
Tailstock taper	MT5
Dimension	2410/2660/316015601730mm
weight	2800/3200/3500kg

Optional brands of CNC systems	SIEMENS、FANUC
Optional types of the tool post	Horizontal 6-station, horizontal 8-station
Optional types of the workpiece clamping	hydraulic chuck、pneumatic chuck、spring chuck
Optional types of the tailstock	Hydraulic tailstock、pneumatic tailstock
Optional patterns of feeding	Automatic Bar feeding（Customized programs alone）

Our Company

Factory

Packing & Delivery

Packaging
Size	1850(L) * 1100(W) * 1550(D)
Weight	1500kg
Packaging Details	The normal package is wooden box(Size: LWH). the wooden box will be fumigated.
