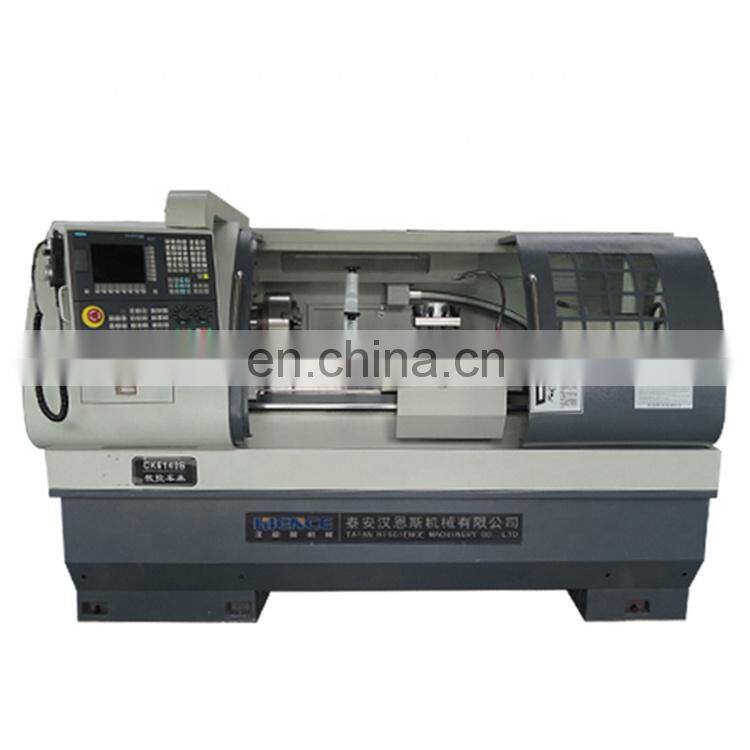

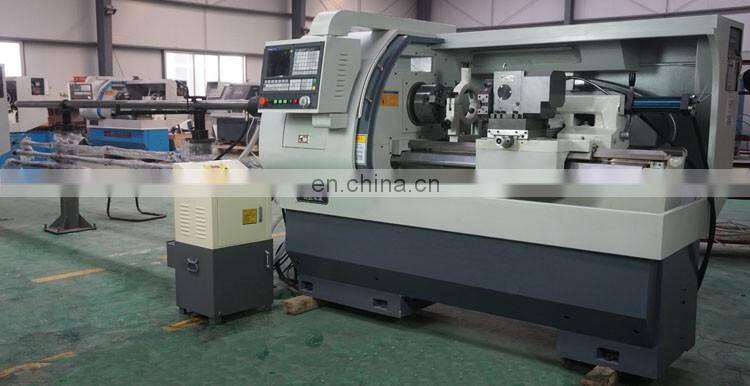

Horizontal Metal Turning Lathe Cnc Machine CK6140B

FOB Price

US$ 9,000 - 12,000 / Set

1 Set(Min. Order)

Port Qingdao Ningbo Shanghai Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	CK6140B
Condition	New

Product Description

configuration and specification

1.System:GSK928TD-L,servo motor and drive

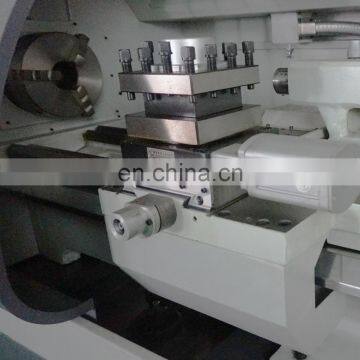

2.3-jaw chuck, 4-station electric tool post or gang type tool.
3.Manual tailstock, Semi-Rugged
4.Cooling system;Lighten system; Automatic lubrication system

ITEMS	Specifications
Max. swim over bed	Φ400mm
Max. swim over carriage	Φ245mm
Max. length of work piece	750/1000mm
Size of three-jaw chuck	250mm
Range of spindle speed	150-500 320-1600rpm
Spindle bore	Φ52mm
X/Z axis torque	5/7.5N.M
Taper of spindle bore	MT6
Stations of tool carrier	4/6/8
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8 m/min,(X) cross 6 m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	120mm
Motor power	5.5KW
Packing size(length ×width ×height)	2050/2300 1400 1650mm
Net weight	2100kg

Main features

1.Single spindle
2. May fix with hydraulic chuck system.
3. Integrated automatic lubrication system.
4. High precision CNC lathe with good performance-price radio.
5. Electronic hand wheel equipped easy operation.

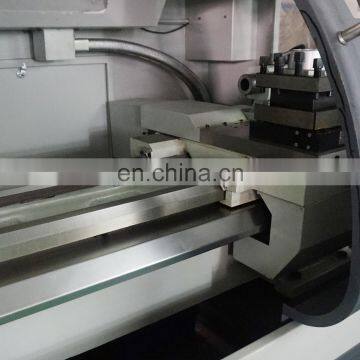

6. The carriage adopts plastic paste processing wear small, high precision, long life.
7. Feed of X Z shaft is driven by ball screw with servo-motor.
8. Rotary various work piece surface automatically turning, precision machining.

Optional configuration of CK6140
Optional brands of CNC systems	GSK, KND, SIEMENS, FANUC
Optional types of the tool post	horizontal Six-station, horizontal eight-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring chuck
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
Optional patterns of feeding	Automatic feeding(Customized programs alone)
