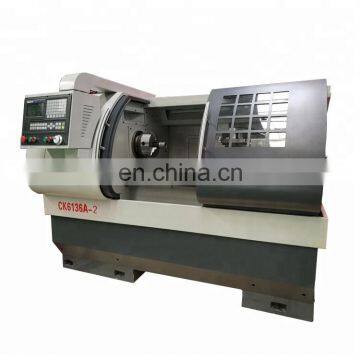

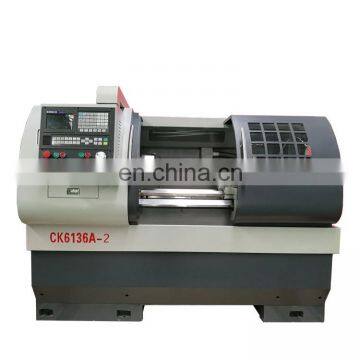

CE Certificate Horizontal Metal Cut Cnc Lathe Machine CK6136A-2

FOB Price

US$ 9,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.System:GSK,servo motor and drive

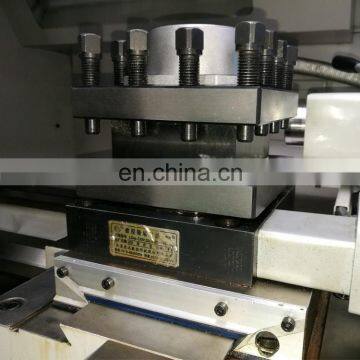

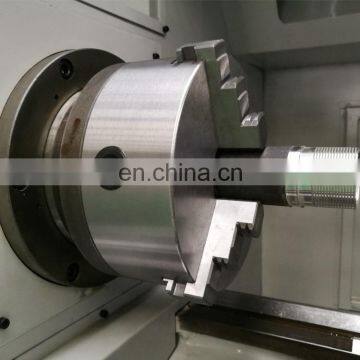

2.8 inch Manual 3-jaw chuck, 4-station electric tool post.

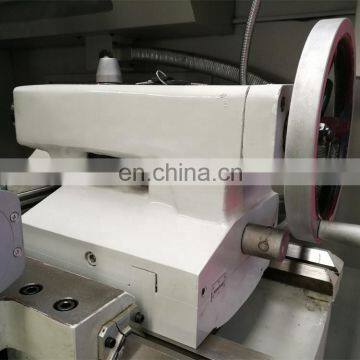

3.Manual tailstock, Semi-Rugged
4.Cooling system;Lighten system; Automatic lubrication system;

ITEMS	Specifications
Max. swim over bed	Φ360mm
Max. swim over carriage	Φ190mm
Max. length of work piece	750mm
Width of the machine	330mm
Size of three-jaw chuck	200mm
Range of spindle speed	150-2500rpm
Spindle bore	Φ60mm
Taper of spindle bore	MT6
Stations of tool carrier	4/6/8
Max size of tool post	20mm or 25mm
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8m/min,(X) cross 4m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	120mm
Motor power	5.5KW
Packing size(length ×width × height)	1950 mm×1400 mm×1650mm
Net weight	1650/1700kg

Optional brands of CNC systems	SIEMENS,FANUC, KND, SYNTEC
Optional types of the tool post	horizontal Six-station, horizontal eight-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring collets
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
