Home > Products > CNC lathe machine > Automatic CNC Metal Cnc Lathe for Metal Cutting CK6150

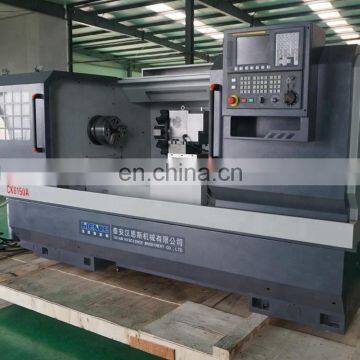

Automatic CNC Metal Cnc Lathe for Metal Cutting CK6150

FOB Price

US$ 10,000 - 13,000 / Set

1 Set(Min. Order)

Port Shanghai Qingdao Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HICNCE	Place of Origin	Shandong, China
Model Number	CK6150A
Condition	New

Product Description

configuration and specification

1.System: GSK980TB2,

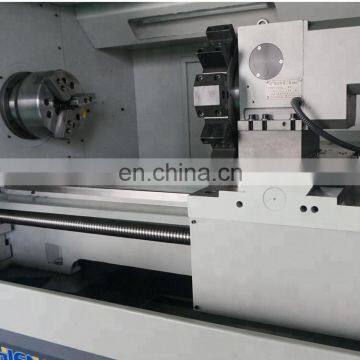

2.Manual 3-jaw chuck, 4-station electric tool post.
3.Manual tailstock, Semi-Rugged or full protect doors
4.Coolant system;Lighten system; Automatic lubrication system;

Item	CK6150A
Max. swing dia. over bed	Φ500mm
Max. swing dia. over cross slide	Φ280mm
Processing length	750mm/1000mm/1500mm/2000mm
Width of the bed	400mm
Dia. of spindle	Φ82mm
Spindle taper	1:20/Φ90
spindle nose	Type of spindle head A2-8
Spindle speed	150-2500rpm
Spindle speed step	step-less
chuck size	250mm
Tool holder	4 station
Tool bar section	25X25mm
Main motor power	7.5KW
X/Z axis position accuracy	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm
X/Z axis torque	6/10N.M
X/Z axis travel	360/750mm/1000mm/1500mm/2000mm
X/Z axis fast feeding speed	8/10 M/MIN
Tailstock sleeve travel	150mm
Tailstock taper	MT5
Dimension	2410/2660/316015601730mm
weight	2800/3200/3500kg

Main features

1.Single spindle
2. May fix with hydraulic chuck system.
3. Integrated automatic lubrication system.
4. High precision CNC lathe with good performance-price radio.
5. Electronic hand wheel equipped easy operation.
6. The carriage adopts plastic paste processing wear small, high precision, long life.
7. Feed of X Z shaft is driven by ball screw with servo-motor.
8. Rotary various work piece surface automatically turning, precision machining.

Optional brands of CNC systems	GSK,KND,Mitsubishi,SIEMENS,FANUC

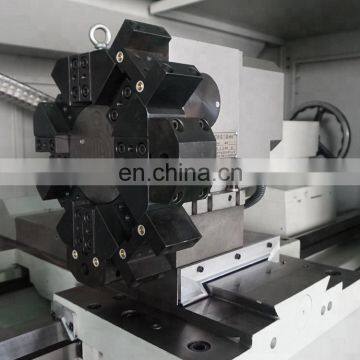

Optional types of the tool post	horizontal Six-station, horizontal eight-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring chuck
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
Optional patterns of feeding	Automatic feeding(Customized programs alone)
