10kW Kubota Diesel Generator With Origin Kubota Engine

FOB Price

US$ 3000 - 5000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

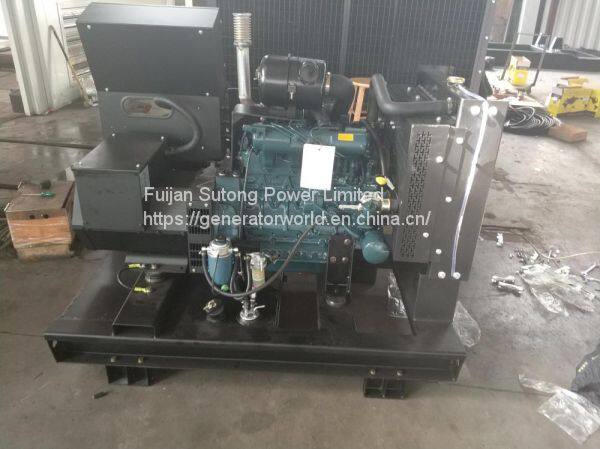

10kW Kubota Diesel Generator with Origin Kubota Engine

Diesel Generator Set

Model				A-KB14S
Standby Output (50Hz)				14kVA / 12kW
Prime Ouptut (50Hz)				13kVA / 10kW

STANDARD FEATURES
Supply Scope
1. Engine with Kubota brand model D1703-BG
2. Alternator with Stamford brand model PI 044G
3. Automatic Start / Stop control panel
4. Dry type air fillter, fuel filter, oil filter
5. 24V D.C automatic battery charger.
6. Max. 50 degree celsius radiator
7. Batteries, rack and cable
8. Ripple flex exhaust pipe, flange and muffler
9. Circuit breaker
10. 99 Fuel tank
11. Complete users' manual

DIESEL GENERATOR RATINGS
Voltage (V)	Frequency (Hz)	Phase	Standby Amps. (A)	Standby Output		Prime Output
				kVA	kW	kVA	kW
240/415	50	3	36.1	14	12	13	10
230/400	50	3	37.5	14	12	13	10
220/380	50	3	39.5	14	12	13	10
Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 12-hours period of operation.
Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating.

SALE PROMISES
1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first.
3. Service and parts are avaiable from Sutong Power or distributors in your location.

Diesel Generator Set

ENGINE SPECIFICATION
Manufacturer		Kubota Corporation (Japan)
Engine Model		D1703-BG
Engine Type		3-Cylinder Diesel
Aspiration		Naturally Aspirated
Cooling Method		Water Cooling
Governor		Mechanic
Compression Ratio		22.5:1
Engine Rat. Output at rate 1500R.P.M.	kWm	12.7
	BHP	17
Displacement	Liters	1.647
Engine Speed	R.P.M.	1500
Bore x Stroke	mm	87 x 92
Fuel Comsunption at 100% load	Liters / H	3.2
Oil Pan Capacity	Liters	6.9
Intake Air Flow at rate output	Liter / S	65
Exhaust Gas Temp. at rate output	°C	480
Exhaust Gas Flow at rate output	Liter / S	100

ALTERNATOR SPECIFICATION
Manufacturer		Cummins Generator Technologies
Model		PI 044G
Rate Output	kVA	15
Rate Speed	R.P.M.	1500
Rate Frequency	Hz	50
Altitude	M	≤1000
Alternator Type		Single bearing, brushless type
Connection Type		Three phase, Four wire
Protection Grade		IP23
Insulation Class		H
Voltage Regulation		AVR
Standards		Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards.

Diesel Generator Set
Diesel Generator Set
CONTROL PANEL
Control supervision and protection panel is mounted on
the genset base frame.

The control panel is equipped as follows:
Automatic Control Panel
Control panel:
-- Manual、Automatic、Stop
-- Static with auto. battery charger
-- Emergency stop push button
-- Alarming

a) Generator set controller model HGM410 features:			c) Alarms:
-- The module is used to monitor the generator set			-- Over and Under Speed
start & stop.			-- Low and High Battery Voltage.
-- Micro-processor based design			-- Start and Stop Failure
-- Monitors engine performance and AC power output			-- Charge Fail
-- LED alarm indication and Sound alarm.			-- Over Current
			-- Under / Over Generator Voltage
b) Metering via LED display:			-- Low Oil Pressure
-- Mains voltage: Uab, Ubc, Uca			-- Emergency Stop
-- Generator voltage: Uab, Ubc, Uca			-- High Engine Temperature
-- Generator current: Ua, Ub, Uc			-- Over Load
-- Generator temp.: ℃/℉ both display
-- Generator frequency: Hz			d) LED Indications
-- Generator active power: kW			Four configurable LED's like:
-- Generator starts count: 999999 times (Max)			-- Generator available
-- Generator pressure: kPa/Psi/Bar both display			-- Generator on load

OPTIONAL EQUIPMENTS
-- Daily Fuel Tank	-- Parallel Panel	-- Remote Control Panel		-- Soundproof Type
-- Engine Heater	-- Permanent Magnet	-- Auto. Transfer Switch		-- Trailer Type
-- Water Heater	Generator (PMG)	-- Switch Box		-- Spare Parts

Diesel Generator Set
Diesel Generator Set
DIMENSION AND WEIGHT

OPEN TYPE DESIGN










--The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame.
-- Antivibration pads are fixes between the engine / alternator feet and base frame.
-- Base frame design incorporates an integral fuel tank (Up to 750kVA)
-- The generating set can be lifted or carefully pushed / pulled by the base frame.
DIMENSIONS OF DIESEL GENERATOR SET
Open-type Dimension (mm)	-	Open-type Weight	-
Soundproof DimeNsion (mm)	L1950 x W850 x H950	Soundproof type Weight	750kg

SOUNDPROOF CANOPY DESIGN
