1000kVA Cummins Diesel Generator Set

FOB Price

US$ 75000 - 110000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

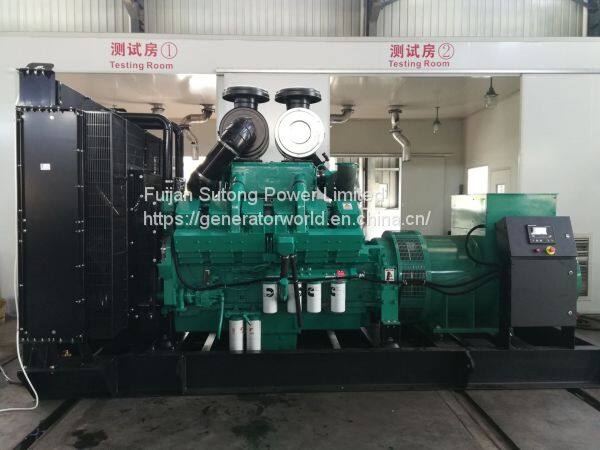

1000kVA Cummins Diesel Generator Set

Specifications:

Diesel Generator Set

Model				ST-C1250
Standby Output				1250	kVA	1000	kW
Prime Ouptut				1100	kVA	880	kW
							54
STANDARD FEATURES
Supply Scope
1. Engine with Cummins brand.
2. Alternator with Sutong Power brand.
3. Automatic Start / Stop control panel
4. Dry type air fillter, fuel filter, oil filter
5. 24V D.C automatic battery charger.
6. Max. 50 degree celsius radiator
7. Batteries, rack and cable
8. Ripple flex exhaust pipe, flange and muffler
9. Circuit breaker
10. Water Heater
11. Complete users' manual

DIESEL GENERATOR RATINGS
Voltage (V)	Frequency (Hz)	Phase	Standby Amps. (A)	Standby Output		Prime Output
				kVA	kW	kVA	kW
380/220	50	3	1899.2	1250	1000	1100	880
400/230	50	3	1804.3	1250	1000	1100	880
415/240	50	3	1739.1	1250	1000	1100	880
Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 12-hours period of operation.
Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating.

SALE PROMISES
1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first.
3. Service and parts are avaiable from Sutong Power or distributors in your location.

Diesel Generator Set

ENGINE SPECIFICATION
Manufacturer		Chongqing Cummins Engine Co., Ltd.
Engine Brand		Cummins
Engine Model		KTA38-G9
Cylinder Nos.		16 Cylinder V Type
Aspiration		Turbocharged & Aftercooled
Cooling Method		Water Cooling
Governor		Electric
Engine Max. Output at rate 1500R.P.M.	kWm	1089
	BHP	1458
Displacement	Liters	37.8
Engine Speed	R.P.M.	1500
Bore	mm	159
Stroke	mm	159
Fuel Comsunption at 100% load	Liters / H	256
Oil Pan Capacity	Liters	135
Exhaust Gas Temp. at rate output	°C	552
Exhaust Gas Flow at rate output	m³/min	198

ALTERNATOR SPECIFICATION
Manufacturer		Fujian Sutong Power Limited
Alternator Brand		Sutong Power
Model		S404G900
Rate Output	kVA	1125
Rate Frequency	Hz	50
Altitude	M	≤1000
Alternator Type		Single bearing, brushless type
Connection Type		Three phase, four wire
Protection Grade		IP23
Insulation Class		H
Voltage Regulation		AVR (model AS440)
Standards		Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards.

Alternator for choice	Brand	Leroy Somer	Marathon	Mecc Alte	Stamford
	Model	-	-	-	-
	Output (kVA)	-	-	-	-

Diesel Generator Set
Diesel Generator Set
CONTROL PANEL
Control supervision and protection panel is mounted on
the genset base frame.

The control panel is equipped as follows:
Automatic Control Panel
Control panel:
-- Automatic genset controller
-- Automatic battery charger
-- AMF and ATS Communication Expansion
-- Emergency stop push button

a) Generator set controller model DSE7320 features:			c) Alarms:
-- The module is used to monitor the generator set			-- Over and Under Speed
start & stop.			-- Low and High Battery Voltage.
-- Micro-processor based design			-- Start and Stop Failure
-- Monitors engine performance and AC power output			-- Charge Fail
-- LED alarm indication and Sound alarm.			-- Over Current
			-- Under / Over Generator Voltage
b) Metering via LED display:			-- Low Oil Pressure
-- Generator voltage: Uab, Ubc, Uca			-- Emergency Stop
-- Generator current: Ua, Ub, Uc			-- High Engine Temperature
-- Generator temp.: ℃/℉ both display			-- Over Load
-- Generator frequency: Hz
-- Generator active power: kW			d) LED Indications
-- Generator starts count: 999999 times (Max)			-- Generator available
-- Generator pressure: kPa/Psi/Bar both display			-- Generator on load

OPTIONAL EQUIPMENTS
-- Daily Fuel Tank	-- Parallel Panel	-- Remote Control Panel		-- Soundproof Type
-- Engine Heater	-- Permanent Magnet	-- Auto. Transfer Switch		-- Trailer Type
-- Water Heater	Generator (PMG)	-- Switch Box		-- Spare Parts

Diesel Generator Set
Diesel Generator Set
DIMENSION AND WEIGHT

OPEN TYPE DESIGN










--The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame.
-- Antivibration pads are fixes between the engine / alternator feet and base frame.
-- Base frame design incorporates an integral fuel tank (Up to 750kVA)
-- The generating set can be lifted or carefully pushed / pulled by the base frame.
DIMENSIONS OF DIESEL GENERATOR SET
Open-type Dimension (mm)	4350 X 1850 X 2400	Open-type Weight (kg)	9650
Soundproof Dimemsion (mm)	6058 X 2438 X 2591	Soundproof Weight (kg)	12550

SOUNDPROOF CANOPY DESIGN
