Home > Products > Cummins Diesel Generator > 150kW Prime Cummins Diesel Generator Silent Type
150kW Prime Cummins Diesel Generator Silent Type
US$ 10000 - 18000
/ Set
1 Set(Min. Order)
- Fuzhou Port
- T/T L/C
- 15 days
You May Like
-
80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version
-
500kVA Industrial Generator Back-up Powered by Cummins Engine Couple With Stamford Alternator
-
100kVA Cummins Diesel Generating Set With Copy Stamford Alternator
-
560kW SDEC Diesel Engine Generator With 1250A Change-Over Switch for Building Back-up Power Supply
-
400kW Cummins Diesel Generator / 20kVA to 1500kVA Cummins Series Genset
-
35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank
Product Details
| Brand Name | Sutong Power | Place of Origin | China | |
| Model Number | ST-C206 | Rated Current | 520.5 | |
| Output Type | AC Three Phase | Speed | 1800rpm | |
| Frequency | 60Hz | Rated Voltage | 120/208V | |
| Rated Power | 150kW / 188kVA |
Product Description
150kW Prime Cummins Diesel Generator Silent Type
Diesel Generator Set
| Diesel Generator Set | |||||||
| Model | ST-C206H | ||||||
| Standby Output (60Hz) | 206kVA / 165kW | ||||||
| Prime Ouptut (60Hz) | 188kVA / 150kW | ||||||
| STANDARD FEATURES | |||||||
| Supply Scope | |||||||
| 1. Engine with Cummins brand model 6CTA8.3-G2 | |||||||
| 2. Alternator with Sutong Power brand model S274G128 | |||||||
| 3. Automatic Start / Stop control panel | |||||||
| 4. Dry type air fillter, fuel filter, oil filter | |||||||
| 5. 24V D.C automatic battery charger. | |||||||
| 6. Max. 50 degree celsius radiator | |||||||
| 7. Batteries, rack and cable | |||||||
| 8. Ripple flex exhaust pipe, flange and muffler | |||||||
| 9. Circuit breaker | |||||||
| 10. Fuel tank | |||||||
| 11. Complete users' manual | |||||||
| DIESEL GENERATOR RATINGS | |||||||
| Voltage (V) | Frequency (Hz) | Phase | Prime Amps. (A) | Standby Output | Prime Output | ||
| kVA | kW | kVA | kW | ||||
| 120/208 | 60 | 3 | 520.5 | 206 | 165 | 188 | 150 |
| - | - | - | - | - | - | - | - |
| - | - | - | - | - | - | - | - |
| Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 6-hours period of operation. | |||||||
| Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating. | |||||||
| SALE PROMISES | |||||||
| 1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested. | |||||||
| 2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first. | |||||||
| 3. Service and parts are avaiable from Sutong Power or distributors in your location. | |||||||
Engine & Alternator Data
| Diesel Generator Set | |||||||
| ENGINE SPECIFICATION | |||||||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd | ||||||
| Engine Model | 6CTA8.3-G2 | ||||||
| Engine Type | 6-Cylinder Diesel | ||||||
| Aspiration | Turbocharged and After-Cooled | ||||||
| Cooling Method | Water Cooling | ||||||
| Governor | Electric | ||||||
| Compression Ratio | 17.3:1 | ||||||
| Engine Rate. Output at rate 1800R.P.M. | kWm | 170 | |||||
| BHP | 228 | ||||||
| Displacement | Liters | 8.3 | |||||
| Engine Speed | R.P.M. | 1800 | |||||
| Bore x Stroke | mm | 114 x 135 | |||||
| Fuel Comsunption at 100% load | Liters / H | 42 | |||||
| Coolant Capacity | Liters | 12.3 | |||||
| Intake Air Flow at rate output | Liter / S | 226 | |||||
| Exhaust Gas Temp. at rate output | °C | 500 | |||||
| Exhaust Gas Flow at rate output | Liter / S | 586 | |||||
| ALTERNATOR SPECIFICATION | |||||||
| Manufacturer | Fujian Sutong Power Limited | ||||||
| Model | S274G128 | ||||||
| Rate Output | kW | 150 | |||||
| Rate Speed | R.P.M. | 1800 | |||||
| Rate Frequency | Hz | 60 | |||||
| Altitude | M | ≤1000 | |||||
| Alternator Type | Single bearing, brushless type | ||||||
| Connection Type | Three phase, four wire | ||||||
| Protection Grade | IP23 | ||||||
| Insulation Class | H | ||||||
| Voltage Regulation | AVR | ||||||
| Standards | Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. | ||||||
Controller
| Diesel Generator Set | |||||||
| CONTROL PANEL | |||||||
| Control supervision and protection panel is mounted on | |||||||
| the genset base frame. | |||||||
| The control panel is equipped as follows: | |||||||
| Automatic Control Panel | |||||||
| Control panel: | |||||||
| -- Control with AMF module | |||||||
| -- Static with auto. battery charger | |||||||
| -- Emergency stop push button | |||||||
| -- Remote Control by SGM card | |||||||
| a) Generator set controller model HGM 6110C features: | c) Alarms: | ||||||
| -- The module is used to monitor the generator set | -- Over and Under Speed | ||||||
| start & stop. | -- Low and High Battery Voltage. | ||||||
| -- Micro-processor based design | -- Start and Stop Failure | ||||||
| -- Monitors engine performance and AC power output | -- Charge Fail | ||||||
| -- LED alarm indication and Sound alarm. | -- Over Current | ||||||
| -- Under / Over Generator Voltage | |||||||
| b) Metering via LED display: | -- Low Oil Pressure | ||||||
| -- Mains voltage: Uab, Ubc, Uca | -- Emergency Stop | ||||||
| -- Generator voltage: Uab, Ubc, Uca | -- High Engine Temperature | ||||||
| -- Generator current: Ua, Ub, Uc | -- Over Load | ||||||
| -- Generator temp.: ℃/℉ both display | |||||||
| -- Generator frequency: Hz | d) LED Indications | ||||||
| -- Generator active power: kW | Four configurable LED's like: | ||||||
| -- Generator starts count: 999999 times (Max) | -- Generator available | ||||||
| -- Generator pressure: kPa/Psi/Bar both display | -- Generator on load | ||||||
| OPTIONAL EQUIPMENTS | |||||||
| -- Daily Fuel Tank | -- Parallel Panel | -- Remote Control Panel | -- Soundproof Type | ||||
| -- Engine Heater | -- Permanent Magnet | -- Auto. Transfer Switch | -- Trailer Type | ||||
| -- Water Heater | Generator (PMG) | -- Switch Box | -- Spare Parts | ||||
Dimension
| Diesel Generator Set | |||||||
| DIMENSION AND WEIGHT | |||||||

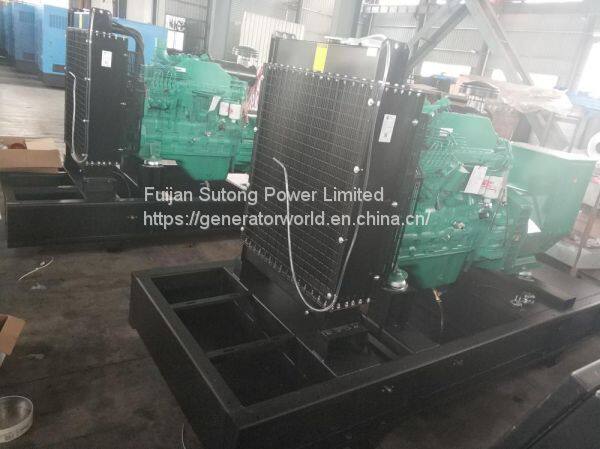

| OPEN TYPE DESIGN | |||||||
| | | ||||||
| --The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame. | |||||||
| -- Antivibration pads are fixes between the engine / alternator feet and base frame. | |||||||
| -- Base frame design incorporates an integral fuel tank (Up to 750kVA) | |||||||
| -- The generating set can be lifted or carefully pushed / pulled by the base frame. | |||||||
| DIMENSIONS OF DIESEL GENERATOR SET | |||||||
| Open-type Dimension (mm) | L2300 x W1000 x H1300 | Open-type Weight | 1600kg | ||||
| Soundproof Dimemsion (mm) | L2950 x W1300 x H1900 | Soundproof type Weight | 2500kg | ||||

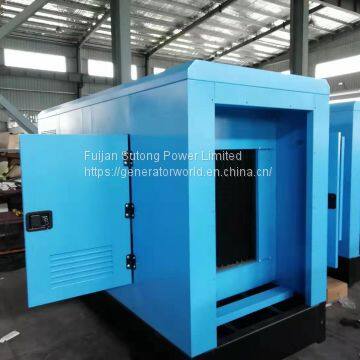

| SOUNDPROOF CANOPY DESIGN | |||||||
| | |||||||
| | |||||||
| Fujain Sutong Power Limited | |||||||
| Tieling Industrial Zone Phase II,Minhou, Fuzhou, Fujian, China | |||||||
| Mob: 0086-15705934540 E-mail: rockykin5426@hotmail.com | |||||||
