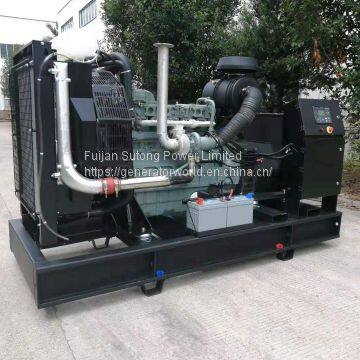

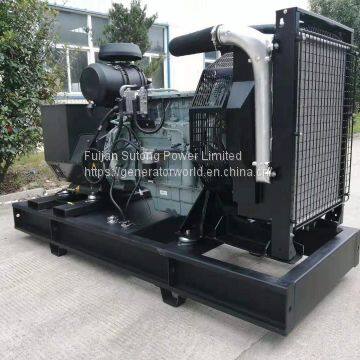

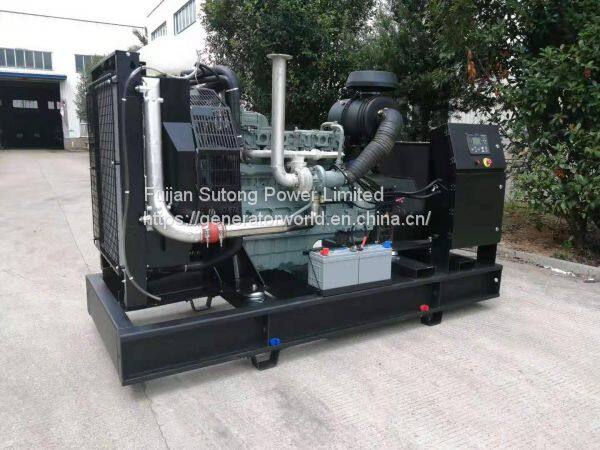

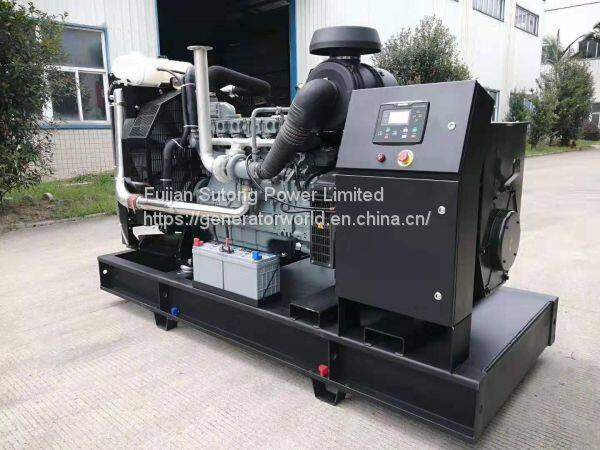

280kW Deutz Diesel Generator / 20kVA to 1500kVA Deutz Open Type Genset

280kW Deutz Diesel Generator / 20kVA to 1500kVA Deutz Open Type Genset

1.Product Application

a)Deutz Diesel engine with all accessories,3 filter,electric systems

b)Copy Stamford Alternator,Steel structure,Fan and water tank cooling system
c)Flange connector,On-board control panel,Set shock absorber
d)Air cleaner,fuel cleaner,oil cleaner,MCCB air conservation switch
e)12/24V starting motor and charge engine,12/24V starting accumulator and Battery line

1) Engine: Deutz  diesel engine Model BF6M1015CP-LA G, Water-cooled & Air-cooled

2) Alternator: Stamford Alternator Model HCI 444 E, Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF<5%,low radio interference.

3) 3 phase 4 wires / 1 phase 2 wires

4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V

Genset Supply Scope

Deutz Engine Parameters:

Stamford Altenrator Parameters:

Optional Equipments:

ATS Cabinet, Water Heater, Diesel Water Heater, Daily Fuel Tank, Container Soundproof Type, Trailer Type, Engine Heater, Alternator Heater, Remote Control Panel, Sync Panel, 3000 Hours Spare Parts;

WARRANTY:

Sutong Power Genset Guarantee for Three years or 3000 hours (accord to whichever comes first)from ex-factory date. During the guarantee period, our Sutong Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material,except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
