Home > Products > SDEC Diesel Generator > 560kW SDEC Diesel Engine Generator With 1250A Change-Over Switch for Building Back-up Power Supply

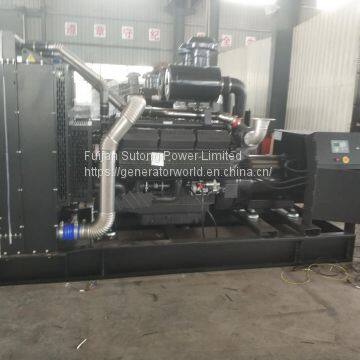

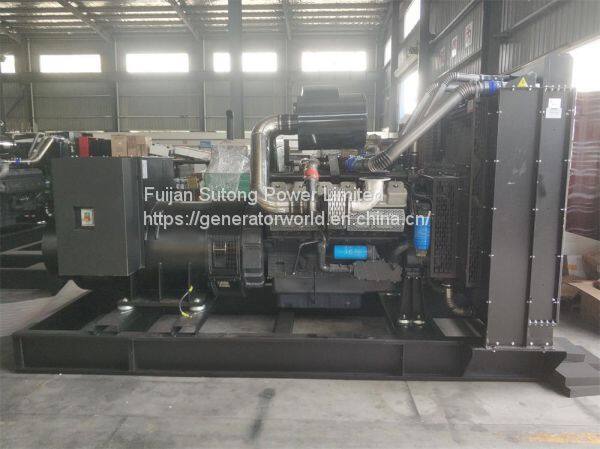

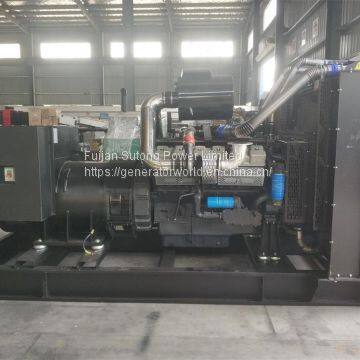

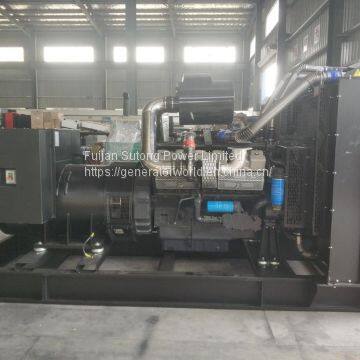

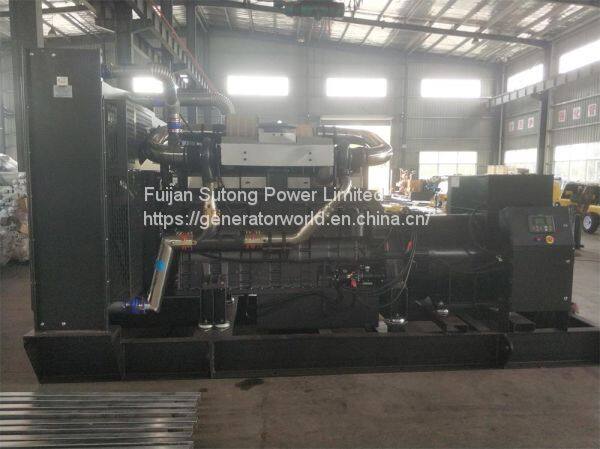

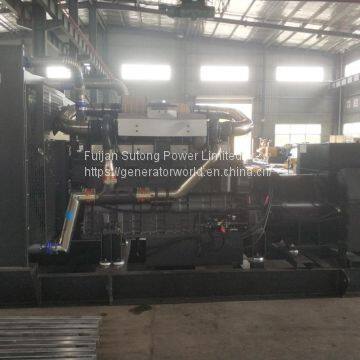

560kW SDEC Diesel Engine Generator With 1250A Change-Over Switch for Building Back-up Power Supply
US$ 15000 - 35000
/ Set
1 Set(Min. Order)
- Fuzhou Port
- T/T L/C
- 15 days
You May Like
-
400kW Cummins Diesel Generator / 20kVA to 1500kVA Cummins Series Genset
-
35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank
-
280kW Deutz Diesel Generator / 20kVA to 1500kVA Deutz Open Type Genset
-
High Reliable Quality Cummins 200kW Diesel Engine Continuous Emergency Power for Hosiptal Fctory USE 250kVA
-
Container Silent Type 910kW / 1000kW Cummins Power Diesel Generator With Stamford Alternator Deepsea 7310 Controller
-
1000kVA/ 800kW Diesel Generator Powered by Cummins Engine
Product Details
| Brand Name | Sutong Power | Place of Origin | China | |
| Model Number | ST-SH700 | Rated Current | 1010.4 A | |
| Output Type | AC Three Phase | Speed | 1500 rpm | |
| Frequency | 50Hz | Rated Voltage | 400/230 V | |
| Rated Power | 700kVA /560kkW |
Product Description
560kW SDEC Diesel Engine Generator with 1250A Change-Over Switch for Building Back-up Power Supply
700kVA SDEC Diesel Generator Supply Scope:
| Diesel Generator Set | |||||||
| Model | ST-SH700 | ||||||
| Standby Output (50Hz) | 700kVA / 560kW | ||||||
| Prime Ouptut (50Hz) | 636kVA / 509kW | ||||||
| STANDARD FEATURES | |||||||
| Supply Scope | |||||||
| 1. Engine with SDEC Shangchai brand model SC27G900D2 | |||||||
| 2. Alternator with Sutong Power brand model S354G520 | |||||||
| 3. Automatic Start / Stop control panel | |||||||
| 4. Dry type air fillter, fuel filter, oil filter | |||||||
| 5. 24V D.C automatic battery charger. | |||||||
| 6. Max. 50 degree celsius radiator | |||||||
| 7. Batteries, rack and cable | |||||||
| 8. Ripple flex exhaust pipe, flange and muffler | |||||||
| 9. Circuit breaker | |||||||
| 10. 1250A ATS | |||||||
| 11. Complete users' manual | |||||||
| DIESEL GENERATOR RATINGS | |||||||
| Voltage (V) | Frequency (Hz) | Phase | Standby Amps. (A) | Standby Output | Prime Output | ||
| kVA | kW | kVA | kW | ||||
| 240/415 | 50 | 3 | 973.9 | 700 | 560 | 636 | 509 |
| 230/400 | 50 | 3 | 1010.4 | 700 | 560 | 636 | 509 |
| 220/380 | 50 | 3 | 1063.6 | 700 | 560 | 636 | 509 |
| Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 6-hours period of operation. | |||||||
| Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating. | |||||||
| SALE PROMISES | |||||||
| 1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested. | |||||||
| 2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first. | |||||||
| 3. Service and parts are avaiable from Sutong Power or distributors in your location. | |||||||
ENGINE SPECIFICATION
| Manufacturer | Shanghai Diesel Engine Co., Ltd | ||||||
| Engine Model | SC27G900D2 | ||||||
| Engine Type | 12-Cylinder Diesel | ||||||
| Aspiration | Turbocharged and Air-Air InterCooled | ||||||
| Cooling Method | Water Cooling | ||||||
| Governor | Electric | ||||||
| Compression Ratio | 14.9:1 | ||||||
| Engine Max Output at rate 1500R.P.M. | kWm | 662 | |||||
| BHP | 887 | ||||||
| Displacement | Liters | 26.6 | |||||
| Engine Speed | R.P.M. | 1500 | |||||
| Bore x Stroke | mm | 135 x 155 | |||||
| Fuel Comsunption at 100% load | Liters / H | 135 | |||||
| Coolant Capacity | Liters | 68 | |||||
| Intake Air Flow at rate output | Liter / S | 950 | |||||
| Exhaust Gas Temp. at rate output | °C | 650 | |||||
| Exhaust Gas Flow at rate output | Liter / S | 2550 | |||||
ALTERNATOR SPECIFICATION
| Manufacturer | Fujian Sutong Power Limited | ||||||
| Model | S354G520 | ||||||
| Max Output | kVA | 715 | |||||
| Rate Speed | R.P.M. | 1500 | |||||
| Rate Frequency | Hz | 50 | |||||
| Altitude | M | ≤1000 | |||||
| Alternator Type | Single bearing, brushless type | ||||||
| Connection Type | Three phase, four wire | ||||||
| Protection Grade | IP23 | ||||||
| Insulation Class | H | ||||||
| Voltage Regulation | AVR | ||||||
| Standards | Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. | ||||||
Smartgen Controller Specification:
| Control supervision and protection panel is mounted on | | |||||
| the genset base frame. | ||||||
| The control panel is equipped as follows: | ||||||
| Automatic Control Panel | ||||||
| Control panel: | ||||||
| -- Control with AMF module | ||||||
| -- Static with auto. battery charger | ||||||
| -- Emergency stop push button | ||||||
| -- ATS Connection | ||||||
| a) Generator set controller model HGM 6120 features: | c) Alarms: | |||||
| -- The module is used to monitor the generator set | -- Over and Under Speed | |||||
| start & stop. | -- Low and High Battery Voltage. | |||||
| -- Micro-processor based design | -- Start and Stop Failure | |||||
| -- Monitors engine performance and AC power output | -- Charge Fail | |||||
| -- LED alarm indication and Sound alarm. | -- Over Current | |||||
| -- Under / Over Generator Voltage | ||||||
| b) Metering via LED display: | -- Low Oil Pressure | |||||
| -- Mains voltage: Uab, Ubc, Uca | -- Emergency Stop | |||||
| -- Generator voltage: Uab, Ubc, Uca | -- High Engine Temperature | |||||
| -- Generator current: Ua, Ub, Uc | -- Over Load | |||||
| -- Generator temp.: ℃/℉ both display | ||||||
| -- Generator frequency: Hz | d) LED Indications | |||||
| -- Generator active power: kW | Four configurable LED's like: | |||||
| -- Generator starts count: 999999 times (Max) | -- Generator available | |||||
| -- Generator pressure: kPa/Psi/Bar both display | -- Generator on load | |||||
Options:
| -- Daily Fuel Tank | -- Parallel Panel | -- Remote Control Panel | -- Soundproof Type | |||
| -- Engine Heater | -- Permanent Magnet | -- Auto. Transfer Switch | -- Trailer Type | |||
| -- Water Heater | Generator (PMG) | -- Switch Box | -- Spare Parts | |||
