Home > Products > Yuchai Diesel Generator > 80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version

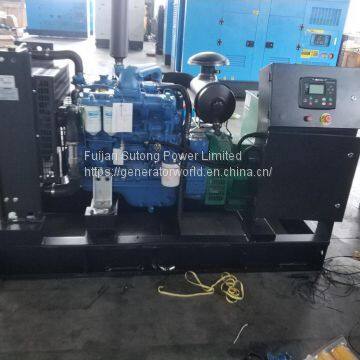

80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version
USD $6000 - $11000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Fuzhou Port
- T/T L/C
- 10 days
You May Like
-
500kVA Industrial Generator Back-up Powered by Cummins Engine Couple with Stamford Alternator
-
100kVA Cummins Diesel Generating Set with Copy Stamford Alternator
-
560kW SDEC Diesel Engine Generator with 1250A Change-Over Switch for Building Back-up Power Supply
-
400kW Cummins Diesel Generator / 20kVA to 1500kVA Cummins Series Genset
-
35kW Ricardo Diesel Generator Without Canopy with 8 Hours Fuel Tank
-
280kW Deutz Diesel Generator / 20kVA to 1500kVA Deutz Open Type Genset
Product Details
| Brand Name | Sutong Power | Place of Origin | China | |
| Model Number | ST-YC110S |
Product Description
80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version
Genset Parameters:
| Diesel Generator Set | |||||||
| Model | ST-YC110S | ||||||
| Standby Output (50Hz) | 110kVA / 88kW | ||||||
| Prime Ouptut (50Hz) | 100kVA / 80kW | ||||||
| STANDARD FEATURES | |||||||
| Supply Scope | |||||||
| 1. Engine with Yuchai brand model YC6B135Z-D20 | |||||||
| 2. Alternator with Sutong Power brand model S274C80 | |||||||
| 3. Automatic Start / Stop control panel | |||||||
| 4. Dry type air fillter, fuel filter, oil filter | |||||||
| 5. 24V D.C automatic battery charger. | |||||||
| 6. Max. 50 degree celsius radiator | |||||||
| 7. Batteries, rack and cable | |||||||
| 8. Ripple flex exhaust pipe, flange and muffler | |||||||
| 9. Delixi Circuit breaker | |||||||
| 10. Fuel Tank | |||||||
| 11. Complete users' manual | |||||||
| DIESEL GENERATOR RATINGS | |||||||
| Voltage (V) | Frequency (Hz) | Phase | Standby Amps. (A) | Standby Output | Prime Output | ||
| kVA | kW | kVA | kW | ||||
| 240/415 | 50 | 3 | 153.0 | 110 | 88 | 100 | 80 |
| 230/400 | 50 | 3 | 158.8 | 110 | 88 | 100 | 80 |
| 220/380 | 50 | 3 | 167.1 | 110 | 88 | 100 | 80 |
| Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 6-hours period of operation. | |||||||
| Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating. | |||||||
| SALE PROMISES | |||||||
| 1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested. | |||||||
| 2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first. | |||||||
| 3. Service and parts are avaiable from Sutong Power or distributors in your location. | |||||||
Engine & Alternator Specifications:
| Diesel Generator Set | |||||||
| ENGINE SPECIFICATION | |||||||
| Manufacturer | Guangxi Yuchai Machinery Group Co., Ltd | ||||||
| Engine Model | YC6B135Z-D20 | ||||||
| Engine Type | 6-Cylinder Diesel | ||||||
| Aspiration | Turbocharged | ||||||
| Cooling Method | Water Cooling | ||||||
| Governor | Electric | ||||||
| Compression Ratio | 17.5:1 | ||||||
| Engine rate Output at rate 1500R.P.M. | kWm | 90 | |||||
| BHP | 121 | ||||||
| Displacement | Liters | 6.871 | |||||
| Engine Speed | R.P.M. | 1500 | |||||
| Bore x Stroke | mm | 108 x 125 | |||||
| Fuel Comsunption at 100% load | Liters / H | 20.9 | |||||
| Coolant Capacity | Liters | 12.5 | |||||
| Intake Air Flow at rate output | Liter / S | N.A | |||||
| Exhaust Gas Temp. at rate output | °C | N.A | |||||
| Exhaust Gas Flow at rate output | Liter / S | N.A | |||||
| ALTERNATOR SPECIFICATION | |||||||
| Manufacturer | Fujian Sutong Power Limited | ||||||
| Model | S274C80 | ||||||
| Rate Output | kVA | 100 | |||||
| Rate Speed | R.P.M. | 1500 | |||||
| Rate Frequency | Hz | 50 | |||||
| Altitude | M | ≤1000 | |||||
| Alternator Type | Single bearing, brushless type | ||||||
| Connection Type | Three phase, four wire | ||||||
| Protection Grade | IP23 | ||||||
| Insulation Class | H | ||||||
| Voltage Regulation | AVR | ||||||
| Standards | Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. | ||||||
Smartgen Controller Panel:
| Diesel Generator Set | |||||||
| CONTROL PANEL | |||||||
| Control supervision and protection panel is mounted on | | ||||||
| the genset base frame. | |||||||
| The control panel is equipped as follows: | |||||||
| Automatic Control Panel | |||||||
| Control panel: | |||||||
| -- Automatic genset controller | |||||||
| -- Automatic battery charger | |||||||
| -- Emergency stop push button | |||||||
| a) Generator set controller model HGM 6110 features: | c) Alarms: | ||||||
| -- The module is used to monitor the generator set | -- Over and Under Speed | ||||||
| start & stop. | -- Low and High Battery Voltage. | ||||||
| -- Micro-processor based design | -- Start and Stop Failure | ||||||
| -- Monitors engine performance and AC power output | -- Charge Fail | ||||||
| -- LED alarm indication and Sound alarm. | -- Over Current | ||||||
| -- Under / Over Generator Voltage | |||||||
| b) Metering via LED display: | -- Low Oil Pressure | ||||||
| -- Mains voltage: Uab, Ubc, Uca | -- Emergency Stop | ||||||
| -- Generator voltage: Uab, Ubc, Uca | -- High Engine Temperature | ||||||
| -- Generator current: Ua, Ub, Uc | -- Over Load | ||||||
| -- Generator temp.: ℃/℉ both display | |||||||
| -- Generator frequency: Hz | d) LED Indications | ||||||
| -- Generator active power: kW | Four configurable LED's like: | ||||||
| -- Generator starts count: 999999 times (Max) | -- Generator available | ||||||
| -- Generator pressure: kPa/Psi/Bar both display | -- Generator on load | ||||||
Optionals:
| -- Daily Fuel Tank | -- Parallel Panel | -- Remote Control Panel | -- Soundproof Type | |||
| -- Engine Heater | -- Permanent Magnet | -- Auto. Transfer Switch | -- Trailer Type | |||
| -- Water Heater | Generator (PMG) | -- Switch Box | -- Spare Parts | |||
