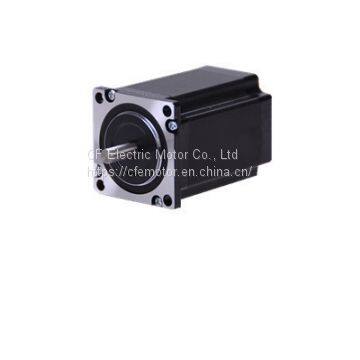

24HT Series Hybrid Stepping Motor
- 30000 Set / Sets per Month
- Changzhou, Shanghai port
- T/T L/C
- 20 days
You May Like
Product Details
| Brand Name | THANK | Place of Origin | China | |
| Model Number | 24HT Series | Type | Hybrid | |
| Phase | 3 | Certification | CE, ISO, ROHS | |
| Current / Phase | 5.2A, 5.6A, 5.8A/ 3phase | Holding Torque | 60N.m， 120N.m, 130N.m | |
| Step Angle(degrees) | 1.2 degree |
Product Description
HYBRID STEPPING MOTOR 24HT SERIES
General Specifications：
Step Angle ----------------------------------------------------1.2° (full step)
Step Angle Accuracy -----------------------------±5%(full step, no load)
Resistance Accuracy --------------------------------------------------±10%
Inductance Accuracy -------------------------------------------------±20%
Temperature Rise ------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range -------------------------- -20℃∽+50℃
Insulation Resistance ------------------------- 100MΩ Min. 500VDC
Dielectric Strength ----------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ------------------------------------------------------- B class
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque (N.cm) Min. | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (g.cm2) | Lead Wire | Detent Torque (N.cm) Max. | Motor Weight (g) |
24HT4552 | 45 | 0.6 | 5.2 | 1.2 | 2.5 | 200 | 3 | 2.0 | 550 |
24HT5656 | 56 | 1.2 | 5.6 | 1.0 | 2.2 | 350 | 3 | 3.0 | 600 |
24HT7658 | 76 | 1.8 | 5.8 | 1.2 | 3.2 | 550 | 3 | 4.0 | 1200 |
*Shown in the table is the representative product. It can be customized according to the requirements of users.
