3-Phase Stepping Motor Driver CF30522M Stepper Driver

3-Phase Digital Stepping Driver CF30522M

Overview

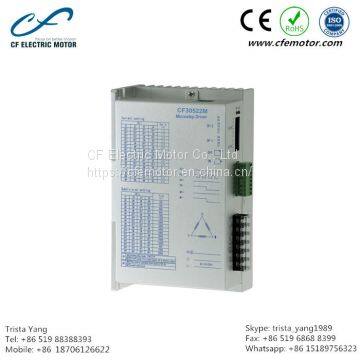

CF30522M is a 3-phase hybrid stepping motor drive based on DSP control. It is a new generation of digital stepping motor drive which combines advanced DSP control chip and 3-phase inverter drive module. It uses a similar servo control circuit, which can make the motor running smoothly, almost no vibration and noise. When the motor is at high speed, its torque is much higher than 2-phase and 5-phase hybrid stepping motors. The product is widely used in engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high resolution, large and medium-sized CNC equipment.

Key Features

1. 110 to 220VAC supply voltage

2. Suitable for 3-phase, 3 and 6 leads hybrid stepping motors, with NEMA size23 to 42

3. Output current selectable from 1.2~5.0A

4. Current reduction by 50% automatically, when motor standstill mode is enabled

5. Optical isolation signal input / output

6. Positioning accuracy is up to 12,000 steps / turn

7. Over Voltage, Coil to Coil and Coil to ground short circuit protection

8. Pulse Input Frequency 0～200KHz

9. The phase memory function (Note: When the drive stops for more than 3 seconds, it will automatically memorize the motor phase then re-energizes. When the WF signal goes from low to high, the drive will automatically recover the motor phase).
