Home > Products > Hybrid step-Servo motor > 1000 Encoder 2 Phase 24CF8650-1000 Hybrid Step-servo Motor High Torque Low Viration
1000 Encoder 2 Phase 24CF8650-1000 Hybrid Step-servo Motor High Torque Low Viration
- SHANGHAI PORT, CHANGZHOU PORT
- T/T L/C PayPal
- 3 days
You May Like
-
VR Stepper Motor 110BF004 5N.m 4A 3 Phase 1.5/0.75degree Step Angle Stepping Motor
-
THANK 90BYG250ABCD Hybrid Stepper Motor 2Phase 2.5 5.0 7.5 10.0N.m 4A 40-110VDC Hybrid Stepping Motion
-
THANK 90BYG350ABCD Hybrid Stepper Motor 3Phase 2.26 4.52 6.78 9.04N.m 3A 24-150VDC Hybrid Stepping Motion
-
THANK 90BYG550ABCD Hybrid Stepper Motor 5Phase 2.2 4.4 6.6 8.8N.m 3A 50VDC Hybrid Stepping Motion
-
110BYG250 Hybrid Stepper Motor 2Phase 10N.m 80-200V 6A Stepping Motion
-
110BYG250A Hybrid Stepper Motor 2Phase 12.5N.m 80-200V 6A Stepping Motion
Product Details
| Brand Name | THANK, CHANGFENG, CF | Place of Origin | China | |
| Model Number | 24CF8650-1000 | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO | |
| Current / Phase | 5A | Holding Torque | 3N.m | |
| Step Angle(degrees) | 1.8 degree |
Product Description

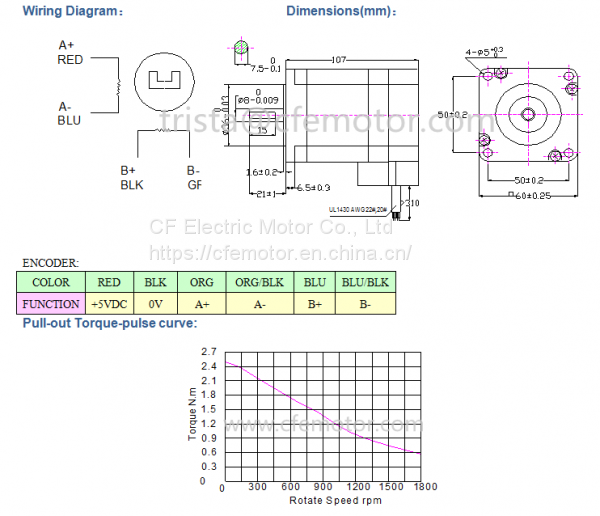

HYBRID STEP-SERVO MOTOR 24CF SERIES HIGH TORQUE LOW VIBRATION
General Specifications：
Step Angle ----------------------------------------------------------1.8° (full step)
Step Angle Accuracy ----------------------------------±5%(full step, no load)
Resistance Accuracy ------------------------------------------------------±10%
Inductance Accuracy --------------------------------------------------------±20%
Temperature Rise ------------------80℃ Max(rated current, 2 phases on)
Ambient Temperature Range ------------------------------- -20℃∽+50℃
Insulation Resistance -------------------------------- 100MΩ Min. 500VDC
Dielectric Strength ------------------------------500VAC 50Hz 1mA 1 Minute
Insulation Class --------------------------------------------------B Class (130℃)
Electrical Specifications:
odel | L Motor Length (mm) | Holding Torque (N.m) Min. | Rated Voltage DC(V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Rotor Inertia (kg.cm2) | Motor Weight (kg) |
1000 Encoder | ||||||||
24CF8650-1000 | 107 | 3.0 | 24-48 | 5 | 0.4 | 2.0 | 0.69 | 1.5 |
Shown in the table is the representative product. It can be customized according to the requirements of users.
