Home > Products > VR Stepping motor > VR Stepper Motor 110BF004 5N.m 4A 3 Phase 1.5/0.75degree step angle Stepping Motor

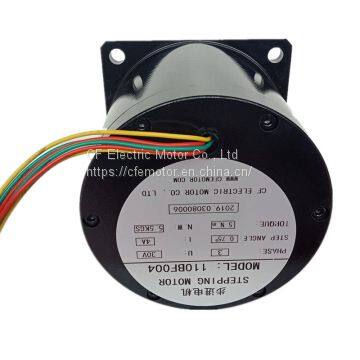

VR Stepper Motor 110BF004 5N.m 4A 3 Phase 1.5/0.75degree step angle Stepping Motor
- 30000 Piece / Pieces per Month
- SHANGHAI PORT, CHANGZHOU PORT
- T/T L/C PayPal
- 3 days
You May Like
-
THANK 90BYG250ABCD Hybrid Stepper Motor 2Phase 2.5 5.0 7.5 10.0N.m 4A 40-110VDC Hybrid stepping motion
-
THANK 90BYG350ABCD Hybrid Stepper Motor 3Phase 2.26 4.52 6.78 9.04N.m 3A 24-150VDC Hybrid stepping motion
-
THANK 90BYG550ABCD Hybrid Stepper Motor 5Phase 2.2 4.4 6.6 8.8N.m 3A 50VDC Hybrid stepping motion
-
110BYG250 Hybrid Stepper Motor 2Phase 10N.m 80-200V 6A Stepping Motion
-
110BYG250A Hybrid Stepper Motor 2Phase 12.5N.m 80-200V 6A Stepping Motion
-
110BYG250B Hybrid Stepper Motor 2Phase 18N.m 80-200V 6A Stepping Motion
Product Details
| Brand Name | THANK, CHANGFENG, CF | Place of Origin | China | |
| Model Number | 110BF004 | Type | Variable Reluctance | |
| Phase | 3 | Certification | CE, ISO, ROHS | |
| Current / Phase | 4A | Holding Torque | 5N.m | |
| Step Angle(degrees) | 1.5/0.75 deg |
Product Description
STABLE DURABLE EFFICIENCY
ELECTRIC MOTOR FACTORY SINCE 2003
SPECIALIZED IN STEPPER & SERVO MOTOR
VR Type Stepper Motor 110BF004
Application:
Widely used CNC machine tools, Package machinery, Textile machinery, Engraving machine, Wire-stripping machine, Marking machine, Cutting machine, Laser photocomposing machine, Plotting instrument, Medical equipment, Printer, Embroidery machine, Stage lighting, and other industries automatic assembly equipment.
General Specification:
Step Angle | 1.5°/ 0.75° (full Step、half step) |
Step Angle Accuracy | +/-5% (full step, no-load) |
Temperature Rise | 80℃( rated current 2 phases on) |
Ambient Temperature Range | -20℃~ +50℃ |
Insulation Resistance | 100MΩ Min. 500VDC |
Dielectric Strength | 950VAC 50Hz 1mA 1Min. |
Radial Play | 0.02mmMax. (300N) |
End Play | 0.08mmMax. (60N) |
Max. radial force | 300N (20mm from the flange) |
Max. axial force | 60N |
Rotation | CW(See from Front Flange) |
Insulation Grade | F grade |
Electrical Specifications:
Model | 110BF004 |
Rated Voltage | 30V |
Rated Current | 4A |
Phase Resistance | 3.5Ω |
Phase Inductance | 30mH |
Holding Torque | 5N.m |
No Load Run Frequency | ≥12 kHz |
Rotor Inertia | 3.75kg.cm2
|
Motor Weight | 5.5kgs |
*Shown in the table is the representative product. It can be customized according to the requirements of users.
Wiring method：
Air connection plug-in for the motor, the connection method is as following.
1,2—A,A′ 3,4—B,B′ 5,6—C,C′ 7—Grounding（frame）
Pls. pay attention to:
1. The motor keeps 1 year warranty since the delivery date.
2. The motor should be kept in warehouse which is -20℃ to +40℃, and the relative humidity is not large than 90%. Also, there is no corrosive gas in the air.
