Home > Products > VR Stepping motor > 2 Phase 86mm Length 65mm NEMA 34 Step/Stepper/Stepping Motor

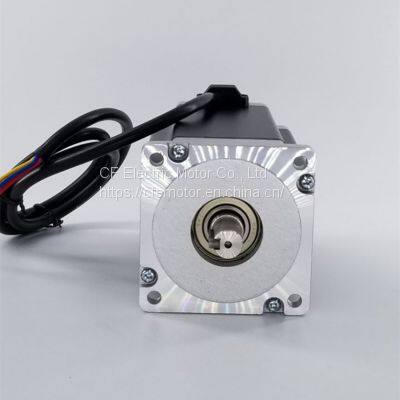

2 Phase 86mm Length 65mm NEMA 34 Step/Stepper/Stepping Motor
- 30000 Piece / Pieces per Month
- SHANGHAI PORT, CHANGZHOU PORT
- T/T L/C PayPal
- 3 days
You May Like
-
1.2degree 86mm NEMA34 80mm Length Closed Loop Step/Stepping/Stepper Driver and Motor
-
2 Phase NEMA 34 Easy Servo Motor / 86mm Series Closed Loop Stepper Motor and Driver Kit for CNC Machine
-
2 Phase Hybrid Step-Servo Motor 86CF118-1000 and Easy Servo Driver CF2068ee
-
5 Phase NEMA52 130mm NEMA42 110mm Series Hybrid Step/Stepper/Stepping Motor
-
3 Phase 110mm NEMA 42 Series Length 130mm Step/Stepping/Stepper Motor
-
NEMA 34 3 Phase 70mm Length 86sth3p70-4003 Hybrid Stepping/ Step/ Stepper Motor
Product Details
| Brand Name | THANK, CHANGFENG, CF | Place of Origin | China | |
| Model Number | 86STH65-4004 | Type | Variable Reluctance | |
| Phase | 2 | Certification | CE, ISO, ROHS | |
| Current / Phase | 6A | Holding Torque | 10N.m | |
| Step Angle(degrees) | 1.8°(full step） |
Product Description
HYBRID STEPPING MOTOR 34HS SERIES
General Specifications:
Step Angle -----------------------------------------------------------------------------------------------------------------------------------------------1.8° (full step)
Step Angle Accuracy ---------------------------------------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy ---------------------------------------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy ---------------------------------------------------------------------------------------------------------------------------------------------±20%
Temperature Rise -----------------------------------------------------------------------------------------------------80oC Max(rated current, 2 phases on)
Ambient Temperature Range ----------------------------------------------------------------------------------------------------------------------- -20oC∽+50oC
Insulation Resistance ---------------------------------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength ---------------------------------------------------------------------------------------------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ------------------------------------------------------------------------------------------------------------------------------------------------- B class
Silver Front Endbell Black Front Endbell Silver Front Endbell
Electrical Specifications:
*Shown in the table is the representative product. It can be customized according to the requirements of users.
