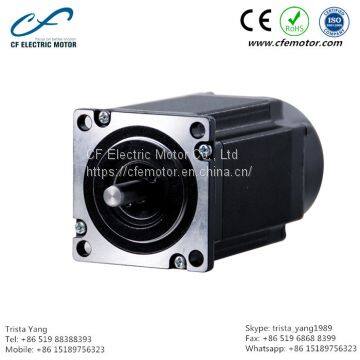

23CF3P Series High Torque Low Vibration Hybrid step-servo Motor

FOB Price

USD $12 - $120 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	THANK		Place of Origin	China
Model Number	23CF3P

HYBRID STEP-SERVO MOTOR 23CF3P SERIES HIGH TORQUE LOW VIBRATION

General Specifications：

Step Angle --------------------------------------------------------1.2° (full step)

Step Angle Accuracy --------------------------------±5%(full step, no load)

Resistance Accuracy -----------------------------------------------------±10%

Inductance Accuracy -----------------------------------------------------±20%

Temperature Rise ----------------80℃ Max(rated current, 2 phases on)

Ambient Temperature Range ----------------------------- -20℃∽+50℃

Insulation Resistance ----------------------------- 100MΩ Min. 500VDC

Dielectric Strength ----------------------------500VAC 50Hz 1mA 1 Minute

Insulation Class -------------------------------------------------B Class (130℃)

Electrical Specifications:

Shown in the table is the representative product. It can be customized according to the requirements of users.

ENCODER:

COLOR	RED	BLK	BLU	BLU/BLK	GRN	GRN/BLK
FUNCTION	+5VDC	0V	A+	A-	B+	B-
