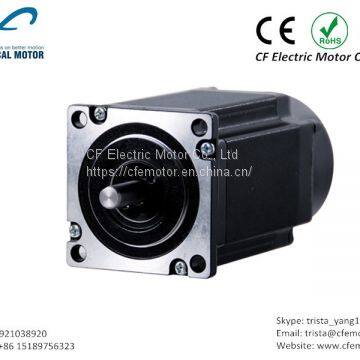

?HYBRID STEP-SERVO MOTOR 34CF SERIES HIGH TORQUE LOW VIBRATION

FOB Price

USD $12 - $120 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	THANK		Place of Origin	China
Model Number	34CF

HYBRID STEP-SERVO MOTOR 34CF SERIES HIGH TORQUE LOW VIBRATION

General Specifications：

Step Angle --------------------------------------------------------1.8° (full step)

Step Angle Accuracy --------------------------------±5%(full step, no load)

Resistance Accuracy ------------------------------------------------------±10%

Inductance Accuracy ------------------------------------------------------±20%

Temperature Rise -----------------80℃ Max(rated current, 2 phases on)

Ambient Temperature Range ------------------------------- -20℃∽+50℃

Insulation Resistance -------------------------------- 100MΩ Min. 500VDC

Dielectric Strength ------------------------------750VAC 50Hz 1mA 1 Minute

Insulation Class --------------------------------------------------B Class (130℃)

Electrical Specifications:

Shown in the table is the representative product. It can be customized according to the requirements of users.
