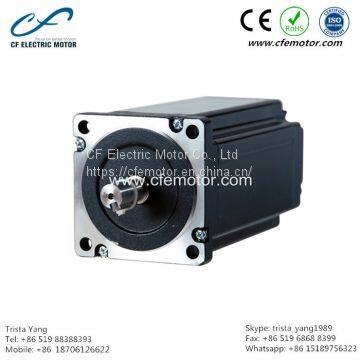

3 Phase 118mm 0.6N.m Hybrid Stepper Motor 34HT11840 Stepping Motor
- 30000 Piece / Pieces per Month
- SHANGHAI PORT, CHANGZHOU PORT
- T/T L/C PayPal Other
- 7 days
You May Like
-
2 phase Hybrid Stepper Motor Driver SH20822M for Nema43 and Nema52 Factory Direct Sale
-
Nema34 Changfeng THANK 2 Phase 1.8° Hybrid Stepping motor 86BYG250A 2.4N.m Stepper Motor
-
1000 Encoder 23CF5630-1000 Hybrid Step-servo Motor High torque Low Viration
-
1000 Encoder 23CF7630-1000 Hybrid Step-servo Motor High torque Low Viration
-
1000 Encoder 23CF11540-1000 Hybrid Step-servo Motor High torque Low Viration
-
1000 Encoder 3 Phase 23CF3P5652-1000 Hybrid Step-servo Motor High torque Low Viration
Product Details
| Brand Name | THANK三科 | Place of Origin | China | |
| Model Number | 34HT11840 | Type | Hybrid | |
| Phase | 3 | Certification | CE, ISO, ROHS | |
| Current / Phase | 4A | Holding Torque | 0.6N.m | |
| Step Angle(degrees) | 1.2 degree |
Product Description
HYBRID STEPPING MOTOR 34HT SERIES
Step Angle ---------------------------------------------------1.2 (full step)
Step Angle Accuracy ---------------------------5%(full step, no load)
Resistance Accuracy -------------------------------------------------10%
Inductance Accuracy -------------------------------------------------20%
Temperature Rise -----------80 Max(rated current, 2 phases on)
Ambient Temperature Range -------------------------- -20+50
Insulation Resistance --------------------------- 100M Min. 500VDC
Dielectric Strength ------------------------ 500VAC 50Hz 1mA 1 Minute
Insulation Class --------------------------------------------------------- B class
Electrical Specifications:
Model | L Motor Length (mm) | Holding Torque () Min. | Rated Current (A) | Phase Resistance () | Phase Inductance (mH) | Rotor Inertia (k) | Lead Wire | Detent Torque () Max. | Motor Weight (kg) |
34HT7040 | 70 | 250 | 4.0 | 0.7 | 9.3 | 1.1 | 3 | 12 | 2.1 |
34HT8040 | 80 | 300 | 4.0 | 0.9 | 12 | 1.23 | 3 | 15 | 2.3 |
34HT10040 | 100 | 500 | 4.0 | 1.3 | 16.2 | 2.7 | 3 | 20 | 3.3 |
34HT11840 | 118 | 600 | 4.0 | 1.60 | 16.5 | 3.3 | 3 | 30 | 3.7 |
34HT13040 | 130 | 750 | 4.0 | 1.95 | 17 | 4.0 | 3 | 35 | 4.0 |
34HT15040 | 150 | 900 | 4.0 | 2.35 | 19 | 5.0 | 3 | 45 | 5.5 |
*Shown in the Table is the representative product. It can be customized according to the Requirements of users.
We have the related stepper motor driver which can be used to control the motor. CF3065D or CF30522M are suggested.
