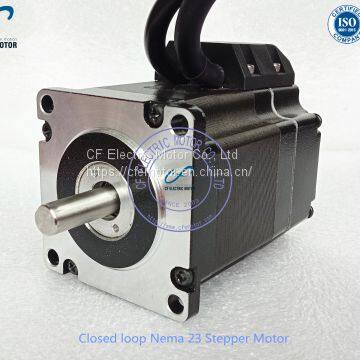

1000 Encoder 23CF5630-1000 Hybrid Step-servo Motor High torque Low Viration

FOB Price

US$ 1 - 200 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

HYBRID STEP-SERVO MOTOR 23CF SERIES HIGH TORQUE LOW VIBRATION

General Specifications：

Step Angle ------------------------------------------------------1.8° (full step)

Step Angle Accuracy -------------------------------±5%(full step, no load)

Resistance Accuracy ----------------------------------------------------±10%

Inductance Accuracy ----------------------------------------------------±20%

Temperature Rise --------------80℃ Max(rated current, 2 phases on)

Ambient Temperature Range ---------------------------- -20℃∽+50℃

Insulation Resistance ---------------------------- 100MΩ Min. 500VDC

Dielectric Strength -------------------------500VAC 50Hz 1mA 1 Minute

Insulation Class ----------------------------------------------B Class (130℃)

ElectricalSpecifications:

Shown in the table is the representative product. It can be customized according to the requirements of users.
