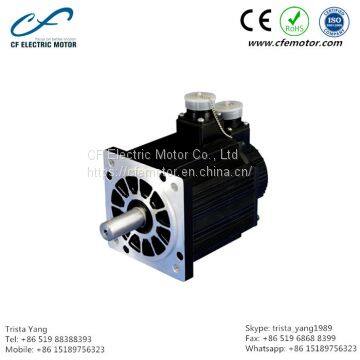

130ST-M Series PM Synchronous AC Servo Motor
- 3000 Set / Sets per Month
- Changzhou, Shanghai port
- T/T L/C
- 20 days
You May Like
Product Details
| Brand Name | THANK | Place of Origin | China | |
| Model Number | 130ST-M Series | Type | Servo Motor | |
| Output Power | 1047-3927W | Frequency | 2500r/min, 2000r/min, 15000r/min | |
| AC Voltage | 208-230 / 240 V | Certification | CE, ROHS | |
| Phase | Three-phase | Protect Feature | Waterproof |
Product Description
Sine Type PM Synchronous AC SERVO MOTOR 130ST-M SERIES
Electrical Specifications:
Specification Model | 130ST-M 4025 | 130ST-M 5025 | 130ST-M 6025 | 130ST-M 7525 | 130ST-M 7720 | 130ST-M 10025 | 130ST-M 15015 | 130ST-M 15025 |
Rated Power(w) | 1047 | 1300 | 1571 | 1963 | 1613 | 2618 | 2356 | 3927 |
Rated Torque(N.m) | 4.0 | 5.0 | 6.0 | 7.5 | 7.7 | 10 | 15.0 | 15.0 |
Max Torque(N.m) | 12.0 | 15.0 | 18.0 | 22.8 | 23.1 | 30 | 39.0 | 39.0 |
Rated Speed(r/min) | 2500 | 2500 | 2500 | 2500 | 2000 | 2500 | 1500 | 2500 |
Max Speed(r/min) | 3000 | 3000 | 3000 | 3000 | 2500 | 3000 | 2000 | 3000 |
Rated Current(A) | 4.0 | 5.0 | 6.0 | 7.5 | 6.0 | 10.0 | 9.0 | 15 |
Max Current(A) | 12 | 15 | 18 | 22.0 | 18.0 | 30.0 | 27.0 | 45 |
Rotor Inertia(kg.cm2） | 11 | 12 | 13.3 | 18.2 | 18.2 | 24 | 35 | 35 |
Weight(kg) | 6.1 | 7.1 | 7.6 | 8.4 | 8.5 | 10.8 | 14.0 | 14.0 |
Encoder | Incremental;2500p/rev | |||||||
Protection Class | IP65 | |||||||
Voltage | Three phases AC 220V(-15%-+10% )50/60Hz | |||||||
Manner of Working | Continuous | |||||||
Insulation class | F | |||||||
Ambient temperature | 0-40°C（Not freeze），storage：-25-70°C（Not freeze） | |||||||
Ambient humidity | <80%RH（Non-condensation），storage：<90%RH（Non-condensation） | |||||||
Environmental conditions | Indoor（Not directly affected by the sun，away from corrosive gas and combustible material） | |||||||
Height | ||||||||
Vibration | Axial：24.5m/S2 Radial：49 m /S2 | |||||||
Wiring Diagram:
Motor Line
No. | 1 | 2 | 3 | 4 |
Content | GND | U | V | W |
Encoder Line
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
Content | GND | VCC | 0 | A | B | Z | A’ | B’ | Z’ | U | V | W | U’ | V’ | W’ |
Dimensions(mm):
Sizes Model | D1 | B | dh6 | E | h1 | h2 | H1 | H2 | L1 | L | D2 | S | |
No brake | With brake | ||||||||||||
130ST-M4025 | 110h6 | 130 | 22 | 52 | 5 | 14 | 178 | 118 | 58 | 164 | 223 | 145 | 9 |
130ST-M5025 | 110h6 | 130 | 22 | 52 | 5 | 14 | 178 | 118 | 58 | 179 | 238 | 145 | 9 |
130ST-M6025 | 110h6 | 130 | 22 | 52 | 5 | 14 | 178 | 118 | 58 | 184 | 243 | 145 | 9 |
130ST-M7525 130ST-M7720 | 110h6 | 130 | 22 | 52 | 5 | 14 | 178 | 118 | 58 | 204 | 263 | 145 | 9 |
130ST-M10025 | 110h6 | 130 | 22 | 52 | 5 | 14 | 178 | 118 | 58 | 229 | 288 | 145 | 9 |
130ST-M15015 130ST-M15025 | 110h6 | 130 | 22 | 52 | 5 | 14 | 178 | 118 | 58 | 279 | 338 | 145 | 9 |
*Shown in the table is the representative product, It can be customized according to the requirements of users.
Servo motor installation Notices:
1. When install/uninstall the coupling components to the shaft, please don’t hardly beat the shaft end to prevent the motor’s other encoder damaged;
2. Trying to make the coupling shaft’s concentricity to be best to extend the service life.
