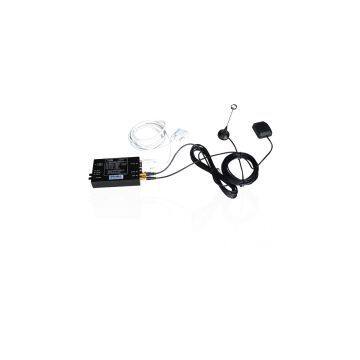

LXI680G wireless data transmission device

Products:

        LXI680G GPRS DTU is an industrial-grade product with GPS global satellite positioning function. The product integrates a high-performance, low-power industrial-grade GPS module and GPRS module, the GPS global positioning technology and GPRS wireless communication technology the perfect combination of a product.

        LXI680G ARM-based platforms, embedded operating system, built-in industrial grade module can use in harsh environments, the working temperature range up to -40 ℃ ~ + 85 ℃. LXI680G provides a standard RS232 serial interface, you can quickly connected with the PLC, industrial machines, equipment, instruments, RTU and other equipment, the equipment connected to the transmission of data and LXI680G through the GPRS network to a host on the Internet, data remotely transparent transmission At the same time GPS location information can be located in the front-end equipment to report to the host, to achieve positioning equipment.

        LXI680G with positioning, wireless data communications and data processing capabilities, compact, rugged, reliable, easy to install, can be widely used in construction, transportation and other industries. Particularly suitable for monitoring crane, heavy machinery management, can also be used taxi operations management, transport vehicles, special vehicles, vehicle rental and leasing management and related fields.

        Wireless data transmission unit measuring across the GPRS network and the Internet, bridging the computer and serial devices, serial devices can only solve the problem R232 close connection to the computer. With GPS function, can be positioned RS232 serial devices. Have messaging capabilities, can send and receive text messages while transmitting data. Especially for unattended applications.

Product performance and features:

       1,6V ~ 26V wide range power supply

       2, fully transparent data transmission, easy to use

       3, support for data center dynamic domain name or IP address of the access

       4, support always online, offline and idle power down idle three modes

       5, support SMS and telephone wake-up function

       6, support for disconnected automatically reconnect function

       7, support for local and remote configuration and maintenance of graphical user interface

       8, support SMS configuration and maintenance

Specifications:

      Network type:

                  GPRS mobile station type CLASS B

                  GPRS mobile station type CLASS 10

      Band: GSM850 / 900/1800 / 1900Mhz

                  GPRS network transmission rate:

                                             Maximum downlink: 85.6Kbps

                                             Maximum uplink: 42.8Kbps

       Encoding: CS-1, CS-2, CS-3, CS-4

       SIM card voltage: 3V, 1.8V

       Antenna Interface: 50 ohms / SMA (female)

       Serial level types: RS-232 standard level

       Serial Interface Type: DB9

       Baud rate: 300 ~ 115200bps (supports standard baud)

      Power Adapter: DC: + 6V ~ 36V (standard adapter: + 6.3V, 2A)

      Power Consumption

                   Work: Maximum 380mA (TBD)

                   Special machines: << 80mA (TBD)

                   Idle: << 80mA (TBD)

                   Power down: << 60mA (TBD)

       Working temperature: -25 ° C ~ + 70 ° C

       Storage temperature: -40 ° C ~ + 80 ° C

       Temperature range: 0 ~ 95% (non-condensing)

Generators lease industry RMON perfect solution:

       Wireless data transmission network of the program LXI680G offered on GPRS and the Internet simultaneously monitor multiple generators on the phone or remote PC computer via SMS. Greatly facilitate the lease customer management industry.

After the controller and LXI680G binding, only a password to solution through a tie, if forced unbundling, the controller will record the next alarm information or refuse to start the generator, this feature is especially suitable for generating lease industry, while there are GPS satellites positioning function, you can always know the location of the unit. additional configuration parameters can be modified generators away thousands of miles away in remote monitoring via computer to better fit their field applications. Supplemented by as many as 150 black clip recording, you can instantly understand the generator set operating parameters occurred in the fault, including: voltage, current, active power, power factor, oil pressure, water temperature, speed and other important parameters. Right LXI680G personalized customization, and integration with existing equipment, the user can through the Internet and mobile phone tracking, monitoring and management of existing equipment.
