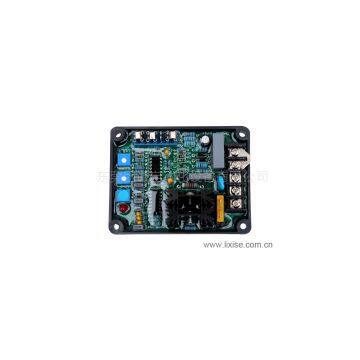

GAVR-8AH generator universal Voltage Regulator

Products:

    UTV 5Amp Generator Automatic Voltage Regulator

    Compatible models: Basler KR7, Airman DST-100-2, Markon 36245, Markon MD1C, Petrus 265-06S

Product performance and features:

    1, voltage accuracy <± 1%

    2, suitable for 220 / 380VAC brushless generator

    3,5A DC output current

    4 to select 50/60 Hz jumper copper

    5, small size, light weight, weather resistance

    6, with a low frequency and voltage protection function slowly build

    7, with EMI suppression circuit

    8, with high breaking capacity fuse protection

Specifications:

      Sensor Input voltage: 220 / 400VAC, single-phase two-wire

      Power Input voltage: 180 ~ 240VAC, single-phase two-wire

      Output voltage: input 240VAC, maximum output voltage is 90VDC

      Continuous Output Current: 6A

      Moment: 6A, 10

      Resistance up to 100Ω minimum 10Ω

      Establish Voltage: 5VAC

      External voltage regulator: potentiometer with 1KΩ

      Maximum power consumption: 8Watt

      At 60Hz system, a turning point in the frequency of 57Hz low frequency protection

      Factory setting: a turning point in the system frequency is 47Hz 50Hz
