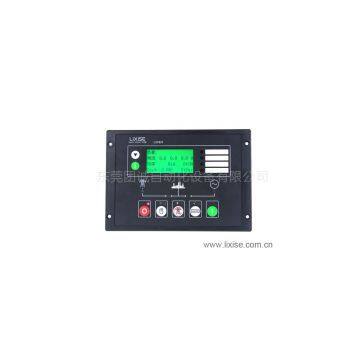

LXC620 generator control module

Products:

       LXC620 generator controller uses a 32-bit microprocessor and embedded system control technology, precision measuring 16 parameters, 32 programmable inputs, 35 warning protection parameters, 85 programmable output, a total of 121 configurable parameters . Of which 108 can be configured from the front panel. With LCD graphic display module can display various engine parameters and generator parameters. Being rapidly expanded use in multiple areas, such as: small power plants, biogas power generation, oil power, field engineering, factory, fire pumps, mobile base stations, and many other fields. Suitable for gasoline, diesel, natural gas, biogas and other power equipment, many well-known domestic and foreign enterprises have been widely supporting applications. Completely replace DSE7X0 controller.

       LXC620: for stand-alone automated, controlled by the remote power signal generators from the start and stop;

       LXC620: LXC610 based on the increase in electricity consumption monitoring and mains / generator automatic switching control function (AMF), especially suitable for stand-alone automated systems.

Product performance and features:

       LXC610: for stand-alone automated, controlled by the remote power signal generators from the start and stop;

       LXC620: LXC610 based on the increase in electricity consumption monitoring and mains / generator automatic switching control function (AMF), especially suitable for stand-alone automated systems. Its main features are as follows:

       1, using 32-bit ARM microcontrollers, hardware integration, high reliability has been further improved;

       2, LCD LCD is 128x64, with backlight, Chinese, English and other languages optional interface operation, and can be on-site selection, easy commissioning test machine;

       3, with advanced networking features, via GSM mobile network and Internet connectivity, the network in any place can RMON;

       4, in particular to provide for the leasing industry management the perfect solution: leasing out via PC remote management unit, can monitor all operating parameters (oil pressure, water temperature, voltage, current, power, etc.), you can change the configuration at any time to protect the unit improperly applied, can record 200 detailed fault information, including: key parameters downtime reasons, when the voltage, current, power, oil pressure, water temperature, etc., and ready to be uploaded to the monitoring machine. Another multi-level password management to facilitate the lease term management;

       5, with SMS function, you can automatically send an alarm message to five phone numbers when you set an alarm when the generator set can also be used to control the turbine generator set and review the status via SMS;

       6, with RS485 communication interface, using the MODBUS protocol can achieve "three remote" function;

       7, control and protection functions: automatic diesel or natural gas generator set start / stop, sub-gate (ATS switch) and perfect display fault protection and other functions;

       8, parameter settings: allows users to change the setting of its parameters, and memory in the internal FLASH memory when the system is powered down is not lost. Most of the parameters can be adjusted from the controller front panel, all parameters can be used to adjust the PC via RS232 interface can also be used to adjust the PC via RS485 interface;

       9, a variety of temperature, pressure, oil level sensor curves can be used directly, and custom sensor curve;

      10, a variety of starting conditions (speed sensor, hydraulic, power generation) optional;

      11, has a history of failure record, real time clock, timer switch (monthly / weekly / boot once a day and can be set with or without load) function;

      12, mains overvoltage, undervoltage, over frequency, under frequency, phase, reverse phase sequence function, power generation has overvoltage, undervoltage, over frequency, under frequency, over current, over power, reverse power, phase , reverse phase sequence function;

      13, three fixed analog sensors (temperature, oil pressure, level);

      14, two programmable analog sensor can be set to the temperature or pressure or level sensors

      15, width (8 to 35) Power supply range VDC, able to adapt to different starting battery voltage environments;

      16, ? pump unit can be used, but also can indicate the instrument using (only indication, alarm, relay no action);

      17, small, extremely thin and suitable for the installation of the control box fine thin

       Mains

       Line voltage Uab, Ubc, Uca

       Phase voltage Ua, Ub, Uc phase sequence

       Frequency Hz

       Power Generation

       Line voltage Uab, Ubc, Uca

       Phase voltage Ua, Ub, Uc phase sequence

       Frequency Hz

       Load current IA, IB, IC

       Phase and total active power kW

       Phase and total reactive power kVar

       Phase and total apparent power kVA

       Phase and average power factor PF

       Cumulative electricity generation kWh, kVarh, kVAh

       Temperature WT ° C / ° F selection display

       Oil Pressure OP kPa / Psi / Bar select Show

       Fuel bit FL Unit:%

       Speed SPD Unit: RPM

       Battery voltage VB Unit: V

       Charger voltage VD Unit: V

      The timer can be accumulated 65,535 hours HC

      Cumulative boot times

      The maximum cumulative 65,535 times

Specifications:

    Operating voltage: DC8.0V to 35.0V (continued supply)

    Power consumption: <3W (Standard mode: ≤2W)

    Input voltage: 12V AC - 360 V AC (PH-N) of 3-phase 4-wire

23V AC - 620 V AC (PH-N) of 3-phase 3-wire

    Frequency: 50 / 60HZ

    Speed sensor voltage Vpp: 1.0 - 70Vpp

    Speed Sensor Frequency: Maximum 10000HZ

    Start Relay Output: 10Amp DC28V

    Programmable relay outputs: 10Amp DC28V

    Power switch programmable relay outputs: 10Amp 250VAC

    Dimensions: 209mm x 146mm x 26mm

    Hole size: 214mm x 160mm

    Working temperature: (-25~ + 70) ℃ humidity (20~90)%

    Storage conditions Temperature: (-25~ + 70) ℃

    Secondary electric current sensors: 5A
