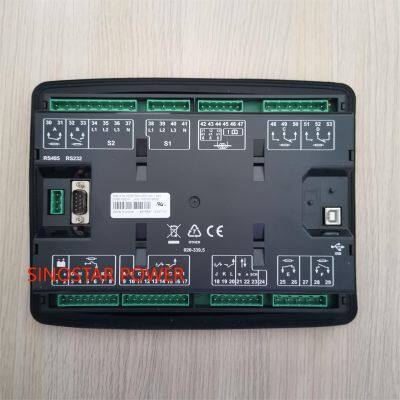

Deepsea Dse335 Mkii Automatic Transfer Switch ATS Controller

FOB Price

800 - 1000 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port FUZHOU
Payment TermsT/T L/C PayPal
Delivery Detail2 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DEEPSEA		Place of Origin	United Kingdom
Model Number	DSE335 MKII

Product Description

DSE335 MKII Automatic transfer switch controller

The DSE335 MKII is an automatic transfer switch controller designed to monitor the voltage and frequency of incoming AC supplies from two different sources. These are either generator or mains (utility), or a combination of both. The module monitors S1 (source 1) and in the event of a failure issues a start command to S2 (source 2). Various timing sequences are available to prevent nuisance starting on minor supply breaks.

The module is configured using the DSE Configuration Suite PC Software. Selected front panel editing is also available. Configurable inputs and outputs make the DSE335 MKII fully flexible to suit a wide variety of applications.

OVERALL SIZE

240 mm x 181 mm x 42 mm (9.4" x 7.1" x 1.6")

PANEL CUT-OUT

220 mm x 160 mm (8.7" x 6.3")

MAXIMUM PANEL THICKNESS

8 mm (0.3")

KEY FEATURES

KEY BENEFITS

Configurable Inputs (12)

Provides advanced flexibility.

Configurable volt-free outputs (6)

Provides advanced flexibility.

Configurable DC outputs (6)

Provides advanced flexibility.

Single combined switching schemes

Offers simplified programming & operation.

Enhanced configurable closed transition menu (<100 ms)

Provides enhanced accuracy.

415 V AC S1/S2 sensing for full 600 V

Enables the module to fully support 600 volt systems.

Bi-colour front panel LEDs

Offers advanced status indication.

RS485 communications

Provides secure and simple off site monitoring. All ports are continuously active.

4-line back-lit LCD text display

Presents system information clearly.

Five key menu navigation

Ease of use for the operator.

Front panel editing with PIN protection

Protects operators gaining access to the editing functionality without permission.

Check sync feature.

Ensures the smoothest possible transfer is achieved.

Remote monitoring.

Allows operators to view system status from any location.

Source 1/source 2 control.

Allows flexible control of source inputs.

Manual restore to S1.

Allows flexible control of source inputs.

Supports multiple technologies

Offers added flexibility.

Automatic switch-over between supplies

Ensures there is no break in power when the changeover occurs.

Rotary ATS configuration.

Provides alternator breaker type control.

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.

LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

480 mA at 12 V, 360 mA at 24 V

MAXIMUM STANDBY CURRENT

126 mA at 12 V, 96 mA at 24 V

VOLTAGERANGE

15 V to 333 V AC (L-N)

FREQUENCYRANGE

3.5 Hz to 75 Hz

OUTPUTS

OUTPUTS A & E

Normally closed ---volt-free output

8 A AC at 250 V AC

OUTPUTS B & F

Normally open volt-free output

8 A AC at 250 V AC

OUTPUT C & D

Changeover volt-free output

8 A AC at 250 V AC

AUXILIARY OUTPUTS G,H,I,J,K & L

2 A DC at supply voltage

VOLTAGE RANGE

15 V to 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz
